TOFD TRANSDUCER AND WEDGE

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port Beijing Port

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Beijing, China		Brand Name	TMTECK
Model Number	TOFD

Product Description

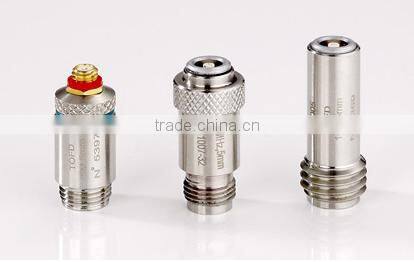

TOFD TRANSDUCER AND WEDGE

TOFD transducers and wedges generate refracted longitudinal waves in steel for use in applications involving crack sizing by means of the Time of Flight Diffraction technique.

TMTeck TOFD ( time-of-flight diffraction) transducers are highly damped longitudinal wave probes that offer excellent resolution in challenging TOFD applications. These highly sensitive composite element broadband transducers are available in frequencies from 2.25 MHz to 15 MHz and in sizes from 3 mm to 12 mm. They are for use with specialized TOFD wedges designed to produce refracted longitudinal waves in STEEL

TMTeck P/N	Frequency MHz	Crystal Size mm	Probe Housing	Connector
2.25-TOFD-MD-6	2.25	6 mm	GE /Olympus Style	Microdot
2.25-TOFD-L00-6	2.25	6 mm	GE /Olympus Style	Lemo 00
2.25-TOFD-MD-12	2.25	12 mm	GE /Olympus Style	Microdot
2.25-TOFD-L00-12	2.25	12 mm	GE /Olympus Style	Lemo 00
5.0-TOFD-MD-6	5.0	6 mm	GE /Olympus Style	Microdot
5.0-TOFD-L00-6	5.0	6 mm	GE /Olympus Style	Lemo 00
10.0-TOFD-MD-3	10	3 mm	GE /Olympus Style	Microdot
10.0-TOFD-L00-3	10	3 mm	GE /Olympus Style	Lemo 00
10.0-TOFD-MD-6	10	6 mm	GE /Olympus Style	Microdot
10.0-TOFD-L00-6	10	6 mm	GE /Olympus Style	Lemo 00
15.0-TOFD-MD-3	15	3 mm	GE /Olympus Style	Microdot
15.0-TOFD-L00-3	15	3 mm	GE /Olympus Style	Lemo 00
5.0-TOFD-L00-6	5.0	6 mm	Phoniex Style	Lemo 00
10.0-TOFD-L00-3	10	3 mm	Phoniex Style	Lemo 00
10.0-TOFD-L00-6	10	6 mm	Phoniex Style	Lemo 00
15.0-TOFD-L00-3	15	3 mm	Phoniex Style	Lemo 00

GE & OLYMPUS Style wedge

TMTeck P/N	Wedge Angle	Probe Hosing Type
G-TOFD-6-45L	45	6 mm (1/4”)
G-TOFD-6-60L	60	6 mm (1/4”)
G-TOFD-6-70L	70	6 mm (1/4”)
G-TOFD-12-45L	45	12 mm (1/2”)
G-TOFD-12-60L	60	12 mm (1/2”)
G-TOFD-12-70L	70	12 mm (1/2”)

Pheonix Style wedge

TMTeck P/N	Wedge Angle	Probe Hosing Type
P-TOFD-6-45L	45	6 mm (1/4”)
P-TOFD-6-60L	60	6 mm (1/4”)
P-TOFD-6-70L	70	6 mm (1/4”)
P-TOFD-12-45L	45	12 mm (1/2”)
P-TOFD-12-60L	60	12 mm (1/2”)
P-TOFD-12-70L	70	12 mm (1/2”)
