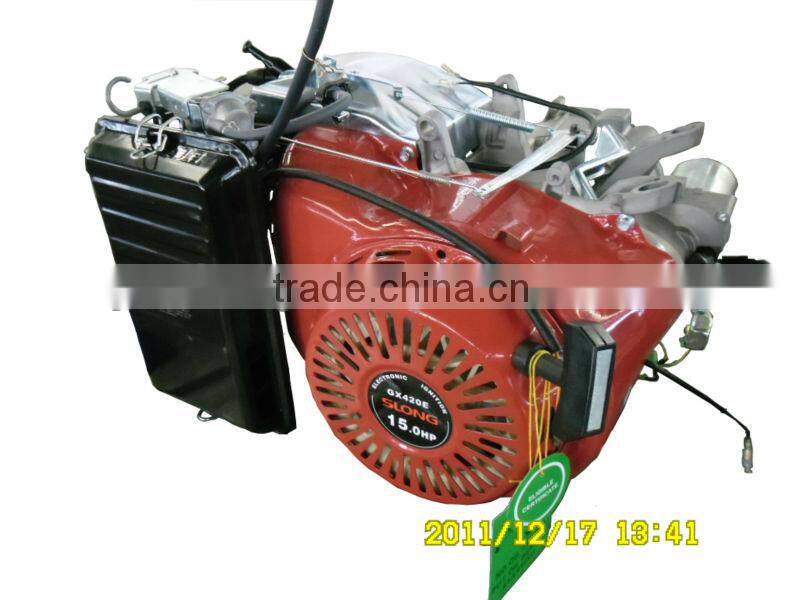

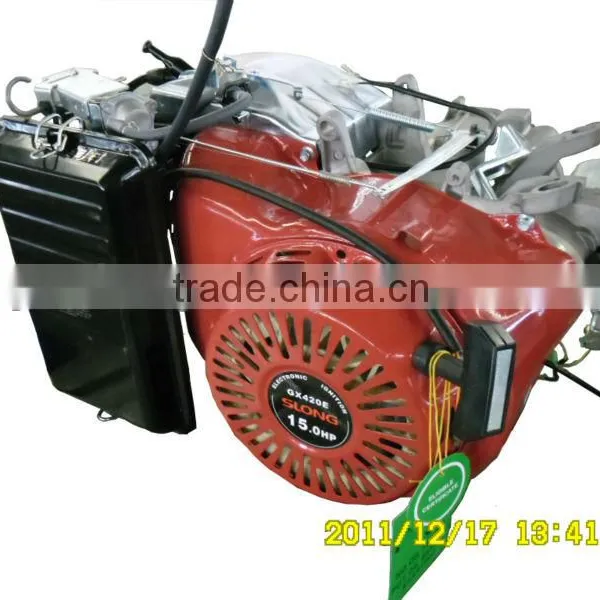

15hp electric start generator use engine gx420 with ISO&CE
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Usage | Other, generator | |
| Fuel | Gasoline | Stroke | 4 Stroke | |
| Cylinder | Single Cylinder | Cold Style | Other, Air-cooled | |
| Start | Kick Start | Place of Origin | Jiangsu, China | |
| Brand Name | Slong | Model Number | SL420 | |
| Dimension(L*W*H) | 490*400*485mm | Weight | 34kgs | |
| Certification | ISO,CE | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications:
1.gx420 gasoline engine
2.engine for generator
3.15hp petrol engine
4.electric starter
5.stable power,lower consumption
1.gx420 gasoline engine
2.engine for generator
3.15hp petrol engine
4.electric starter
5.stable power,lower consumption
OHV type 15.0HP gasoline engine is mainly uesd for agriculture machinery,construction machinery,small boat,generator and etc.
Features:
1. Easy to operate and high safty
2.Precise Machining Technique
3. Long Life of the Machine
4.Delicate and Beautiful Appearance Design
5. Broader Applicable Scope
6.Good quality and less malfunction
Parameter:
| Model | SL420 | SL440 |
| Type | 4-stroke,OHV 25inclined,single cylinder, with Air-cooled | |
| Bore*storke(mm) | 90*66 | 92*66 |
| Dispalcement(ml) | 420 | 439 |
| Compression ratio | 8.0:1 | |
| Max.torque(N.m/rpm) | 28.0/2500 | 29.0/2500 |
| Max output (HP/rpm) | 15.0/3600 | 17.0/3600 |
| Ignition system | T.C.L. | |
| Fuel | Unleaded gasoline | |
| Fuel consumption(g/HP-Hour) | ≤260 | ≤260 |
| Fule tank capacity(L) | 6.5 | 6.5 |
| Lubricationg oil capacity(L) | 1.1 | 1.1 |
| Air cleaner | Semi-dry,oil bath, gual, double silent and cyclone type | |
| Start system | Recoil starter/Electric start | |
| Packing size(L*W*H)mm | 490*400*485 | 490*400*485 |
| 20GP/40HQ unit | 264/675 | 264/675 |
| Net/Gross weight(KG) | 32/34 | 33/35 |
| Model | SL160 | SL200 | SL270 | SL340 | SL390 |
| Type | 4-stroke,25inclined,single cylinder, with Air-cooled | ||||
| Bore*storke(mm) | 68*45 | 68*54 | 77*58 | 82*64 | 88*64 |
| Dispalcement(ml) | 163 | 196 | 270 | 337 | 389 |
| Compression ratio | 4-stroke,25inclined,single cylinder, with Air-cooled | ||||
| Max.torque(N.m/rpm) | 10.8/2500 | 13/2500 | 19/2500 | 23.5/2500 | 26.4/2500 |
| Max output (HP/rpm) | 5.5/3600 | 6.5/3600 | 9.0/3600 | 11.0/3600 | 13.0/3600 |
| Ignition system | T.C.L. | ||||
| Fuel | Unleaded gasoline | ||||
| Fuel consumption(g/HP-Hour) | 270 | 260 | |||
| Fule tank capacity(L) | 3.6 | 3.6 | 6 | 6.5 | 6.5 |
| Lubricationg oil capacity(L) | 0.6 | 0.6 | 1.1 | 1.1 | 1.1 |
| Air cleaner | Semi-dry,oil bath, gual, double silent and cyclone type | ||||
| Start system | Recoil starter/Electric start | ||||
| Packing size(L*W*H)mm | 387*330*360 | 460*380*410 | 530*405*480 | ||
| 20GP/40HQ unit | 630/1470 | 375/930 | 264/675 | ||
| Net/Gross weight(KG) | 15/17 | 16/18 | 25/27 | 31/33 | |
FAQ:
Q:what is your leading time?
A:25-30 days in our normal season, and 30-35days in our busy season.
Q:Is it right to make customer brand name?
A:We can be your OEM manufacture with your authorization of brand.
Q:Where is your loading port?
A:Shanghai, Lianyungang or Ningbo.etc, China port
Q:what are your payment term?
A:30% deposit and balance T/T against by the copy of B/L or L/C at sight,or Alibaba Escrow
Q:What is your company available production capacity?
A:Our company had daily production capacity of one 20GP .Meanwhile,we will has to work increase production capacity in the future.
