Specifications
Coating:Hot Dipped GalvanizedColor:No paint-Zinc Silver
Packing:Panels on Pallets
Size:100cmx200cm
Wire:3.0mm

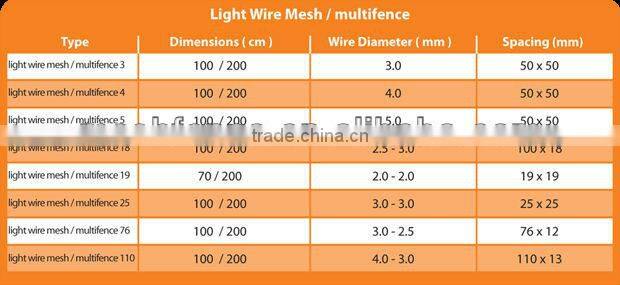

100cmx200cm Light Wire Mesh / multifence for Farm animal cages
Product brief introduction:
DESCRIPTION :
Light Wire Mesh/Multifence is a type of mesh used in wide range of industrial products and applications.
TECHNICAL SPECIFICATIONS :
- Standard light wire mesh is produced with pre galvanized, hot dipped galvanized and Plain (Black) wires. The standard size of the panel is 100 x 200 cm. Different sizes of mesh sizes are available.
- The coating thickness of the pre galvanized wires is 40-60 gr/m2 Zn or 120 gr/m2 Zn
- The coating thickness of the hot dipped galvanized wires is 450-500 gr/m2 Zn.
- Different sizes of panels and mesh sizes can be produced if requested.
| COATING | : | Hot Dipped Galvanized (450-500 gr/m2 Zn) |
| COLOR | : | No paint – Zinc Silver |
| PACKING | : | Panels on Pallets |
AREAS OF USE :
Light Wire meshes / Multifence has been used in
- Farm animal cages (chicken, birds, etc.)
- Sport yards or facilities (Basketball, tennis etc.)
- Kitchen ware
- Shelving systems (Supermarkets, storages, etc.)
- Greenhouse applications
- Industrial components
- Different kind of retail stands
- Narrow sized reinforcing mesh
- Cable trays
- Fencing products
- Filtration systems
Available size:
Product detailed introduction:
Materials: Gal. iron wire, stainless steel wire, PVC coated wire
Usage: They are widely used in industry, agriculture, construction, transport and mining .Such as machine protection cover, ranch fender, garden fence, window protection fender, passage fender, fowl cage, egg basket, foodstuffs basket, etc.
Specification List of Welded Wire Mesh | |||
Opening | Wire Diameter(BWG) | ||
In inch | In metric unit(mm) | ||
1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 | |
3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 | |
1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 | |
5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, | |
3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 | |
1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 | |
1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 | |
1" x 2" | 25.4mm x 50.8mm | 14,15,16 | |
2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 | |
Welded mesh kinds:
1.Galvanized welded wire mesh
2.PVC coated wire mesh
Producing:
Packing:
Loading:
