New 20M Roll Welded Wire Mesh Cross-Wire Pattern Industrial Strength 20 Meters

Anping Fansi Metal Wire Mesh Factory
New 20M Roll Welded Wire Mesh Cross-Wire Pattern Industrial Strength 20 Meters thumbnail-1
New 20M Roll Welded Wire Mesh Cross-Wire Pattern Industrial Strength 20 Meters photo-1
US$ 5 - 45 MOQ: 100 Rolls
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Material:
Other, Galvanized Steel Wire, low carbon steel wire
Type:
Welded Mesh
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Xin'gang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Material Other, Galvanized Steel Wire, low carbon steel wire
Type Welded Mesh
Application Other, Construction Wire Mesh, Construction Wire Mesh
Weave Style Plain Weave
Wire Diameter 0.20-6.5mm
Technique Welded Mesh
Model Number FS-WWM-L-1006
Brand Name FANSI

Specifications

20 Metres in Length
Great for Fencing and Caging
Loads of Various Uses
Cross-Wire Pattern
1/2" Inch Gauge

New 20M Roll Welded Wire Mesh Cross-Wire Pattern Industrial Strength 20 Meters



Product brief introduction:



MaterialWired Mesh

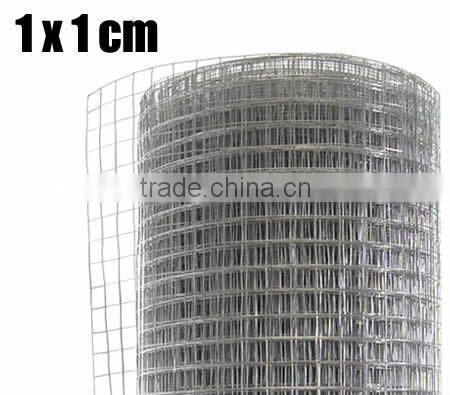

Mesh Size1cm x 1cm approx.

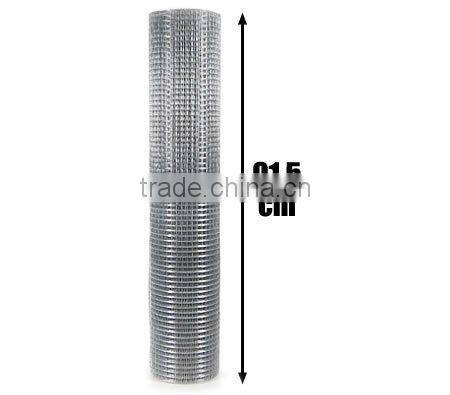

Fence Width91.5cm approx.
Fence Length20m approx.
Package Weight7.5kg approx.
Package Dimensions93cm x 18cm x 18cm approx.
  • Welded Wire Mesh
  • 20 Metres in Length
  • Great for Fencing and Caging
  • Loads of Various Uses
  • Cross-Wire Pattern
  • 1/2" Inch Gauge



New 20M Roll Welded Wire Mesh Cross-Wire Pattern Industrial Strength 20 MetersNew 20M Roll Welded Wire Mesh Cross-Wire Pattern Industrial Strength 20 MetersNew 20M Roll Welded Wire Mesh Cross-Wire Pattern Industrial Strength 20 MetersNew 20M Roll Welded Wire Mesh Cross-Wire Pattern Industrial Strength 20 MetersNew 20M Roll Welded Wire Mesh Cross-Wire Pattern Industrial Strength 20 Meters

Product detailed introduction:



Materials: Gal. iron wire, stainless steel wire, PVC coated wire



Patterns: Welded before weaving, after weaving, galvanized before weaving and after weaving



Characters:  strong welded points and bright luster .The mesh doesnt come loose even if cut in parts or being



exerted force on parts .Compared with general iron  wire ,the products are better in respects of anti-corrosive and anti-rust  .



Usage: They are widely used in industry, agriculture, construction, transport and mining .Such as machine protection cover, ranch fender, garden fence, window protection fender, passage fender, fowl cage, egg basket, foodstuffs basket, etc.



See tables below for available sizes in detail:



Specification List of Welded Wire Mesh

Opening

Wire Diameter(BWG)

In inch

In metric unit(mm)

1/4" x 1/4"

6.4mm x 6.4mm

22,23,24

3/8" x 3/8"

10.6mm x 10.6mm

19,20,21,22

1/2" x 1/2"

12.7mm x 12.7mm

16,17,18,19,20,21,22,23

5/8" x 5/8"

16mm x 16mm

18,19,20,21,

3/4" x 3/4"

19.1mm x 19.1mm

16,17,18,19,20,21

1" x 1/2"

25.4mm x 12.7mm

16,17,18,19,20,21

1-1/2" x 1-1/2"

38mm x 38mm

14,15,16,17,18,19

1" x 2"

25.4mm x 50.8mm

14,15,16

2" x 2"

50.8mm x 50.8mm

12,13,14,15,16



Welded mesh kinds:



1.Galvanized welded wire mesh

New 20M Roll Welded Wire Mesh Cross-Wire Pattern Industrial Strength 20 Meters

2.PVC coated wire mesh

New 20M Roll Welded Wire Mesh Cross-Wire Pattern Industrial Strength 20 MetersNew 20M Roll Welded Wire Mesh Cross-Wire Pattern Industrial Strength 20 Meters

Producing:

New 20M Roll Welded Wire Mesh Cross-Wire Pattern Industrial Strength 20 Meters

Packing:

New 20M Roll Welded Wire Mesh Cross-Wire Pattern Industrial Strength 20 Meters

Loading:

New 20M Roll Welded Wire Mesh Cross-Wire Pattern Industrial Strength 20 Meters
