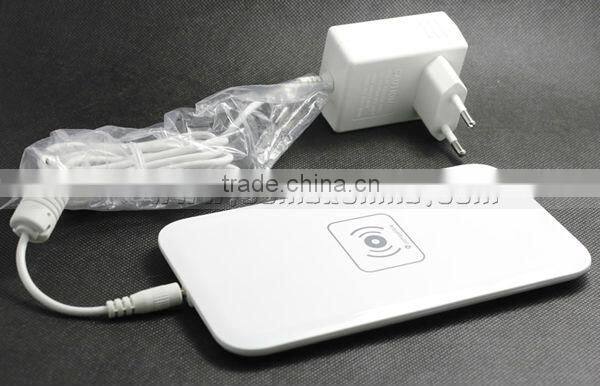

OBOE WPC0012 Wireless Power Bank

QI wireless charger for mobile phone

Wireless Charging Technology:

Wireless charging technology facilitates the transmission of electrical energy from a power source to
an electrical load without connecting wires. The technology is especially useful in cases where wires
are hazardous, impossible to connect, or simply inconvenient.

QI Instruction:

Qi is an interface standard developed by the Wireless Power Consortium for inductive electrical power
transfer over distances of up to 4 cm (1.6 inches).The Qi system comprises a power transmission pad
and a compatible receiver in a portable device. To use the system, the mobile device is placed on top
of the power transmission pad, which charges it via electromagnetic induction.

Specification:

1.Product Standard: QI
2.Input Voltage: DC19V/5V
3.Input Current: DC5V1A
4.Transmission Power: DC5W
5.Working Frequency: 100-200Khz
6.Energy Conversion: 72%>
7.Power Distance: 5MM
8.Charging Current: 500-1000mAh
9.Charging Voltage: DC5V
10.Product Dimension: 153*79*10mm
11.Net Weight: 245g

12.Gross Weight:3420g

13.Charging Method: One-to-one

Package Contents:

1.Transmitter

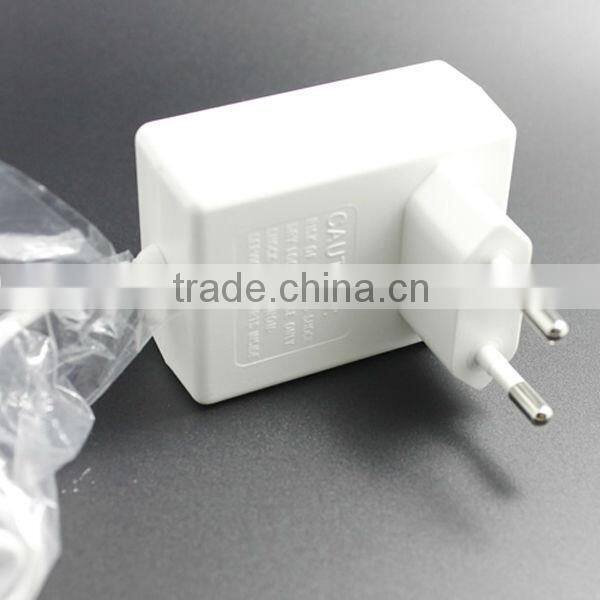

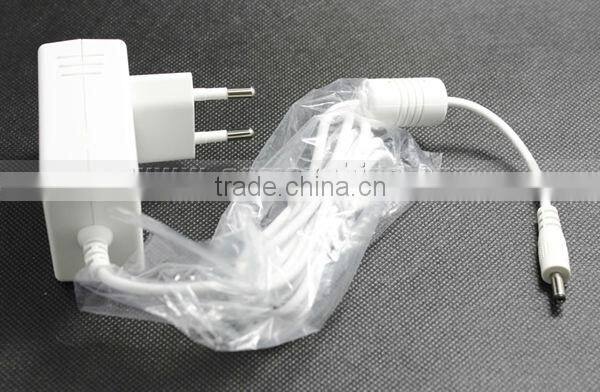

2.Adapter

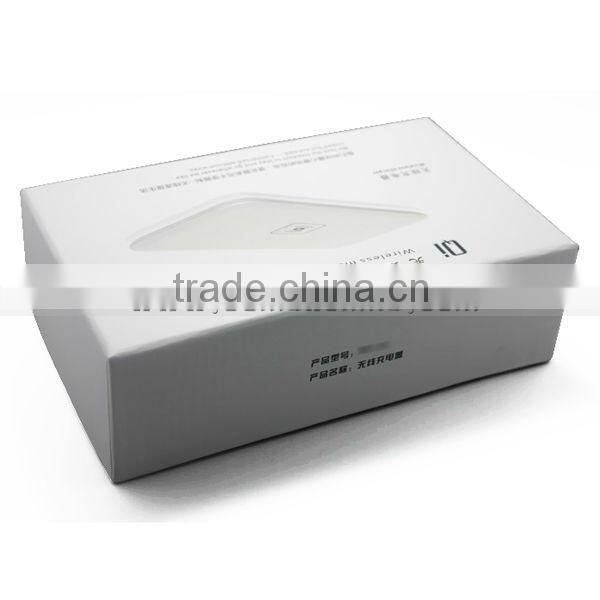

3.Package
