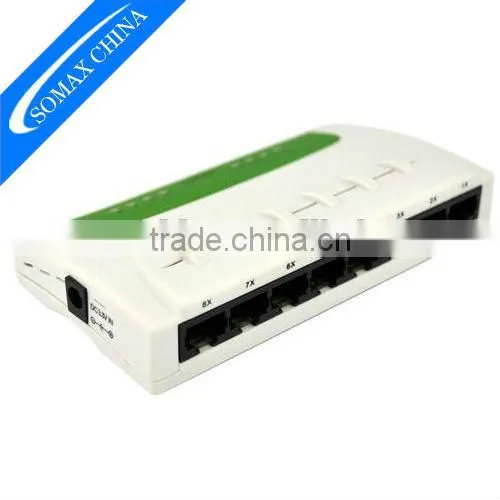

8port 10/100M Fast Ethernet Switch

Name: 8port 10/100M Fast Ethernet Switch
Brand: SM
Availability: InStock

FOB Price

US$ 8.95 - 10.5 / Unit

10 Units(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SM		Model Number	PBX0041
Place of Origin	Guangdong, China

1.Complies with IEEE 802.3 10Base-T and IEEE 802.3u
2.100Base-TX standards
3.Supports auto MDI/MDIX
4.NMA auto-negotiation

Specification:

Standards	IEEE802.3 10Base-T, IEEE802.3u 100Base-TX
Ports	8 Port 10/100Mbps Auto-Negotiation ports
Network Media(Cable)	10Base-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100Ù STP (maximum 100m), 100Base-Tx: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100Ù STP (maximum 100m)
Switching capacity	1G
LED Indicators	100Mbps Link/Act
Transfer Method	Store-and-Forward
MAC Address Learning	Automatically learning, automatically Update
Frame Filtering and Forward Rate	10Mbps: 14880pps, 100Mbps: 148800pps
Dimension	92x83x27mm
Environment	Operating Temperature: 0 C~40 C (32 F~104 F), Storage Temperature: -40 C~70 C (-40 F~158 F), Operating Humidity: 10%~90% non-condensing, Storage humidity: 5%~90% non-condensing
