Specifications
galvanized palisade fencePale type::"W "or" D"
Pale Top - Triple Pointed
Frame Material: Metal
ISO9001
landscape edging powder coated not to rust round or triple pointed tops galvanised or PVC finished galvanized palisade fence

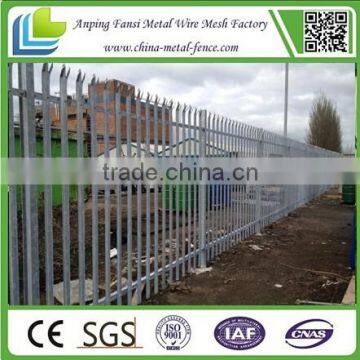

The introduction of galvanized palisade fence :
Palisade fencing is one of fencing series. It is used in England at first. Now palisade fence is widely used at home and abroad. Palisade fencing instead of the brick wall or heavy fence makes your life environment clear. It is widely used because of people's environment pursuit, publicity of personal cleanliness and the pursuit of foreign style. Palisade fencing with beautiful structure and various styles are popular and widely used.
galvanized palisade fence is ideally used in the following applications:
· Industrial Areas
· Airports
· Railways
· Schools
The advantages of galvanized palisade fence :
· Maintenance Free
· Suitable for most site conditions
· Available in any height
· Hot Dip Galvanised to British Standard EN ISO 1461 or a colour of your choice
The specification of galvanized palisade fence :
| Height | Post Dimensions | Rail Dimensions | Support Legs | Corrugated Steel Palisades |
| 1.2m | 102x44 or 100x55mm | 40x40x6mm | 1 | W - 2.0mm or D - 3.0mm |
| 1.5m | 102x44 or 100x55mm | 40x40x6mm | 1 | W - 2.0mm or D - 3.0mm |
| 1.8m | 102x44 or 100x55mm | 40x40x6mm | 1 | W - 2.0mm or D - 3.0mm |
| 2.0m | 102x44 or 100x55mm | 45x45x6mm | 1 | W - 2.0mm or D - 3.0mm |
| 2.1m | 102x44 or 100x55mm | 45x45x6mm | 1 | W - 2.0mm or D - 3.0mm |
| 2.4m | 102x44 or 100x55mm | 45x45x6mm | 1 | W - 2.0mm or D - 3.0mm |
| 2.7m | 102x44 or 100x55mm | 50x50x6mm | 1 | W - 2.0mm or D - 3.0mm |
| 3.0m | 127x76mm | 50x50x6mm | 2 | W - 2.5mm or D - 3.5mm |
| 3.6m | 127x76mm | 50x50x6mm | 2 | W - 2.5mm or D - 3.5mm |
There are a number of designs of galvanized palisade fence :
D shape pale, rounded top, rounded and notched, single pointed and triple pointed.
W shape pale, rounded top, rounded and notched, single pointed and triple pointed.

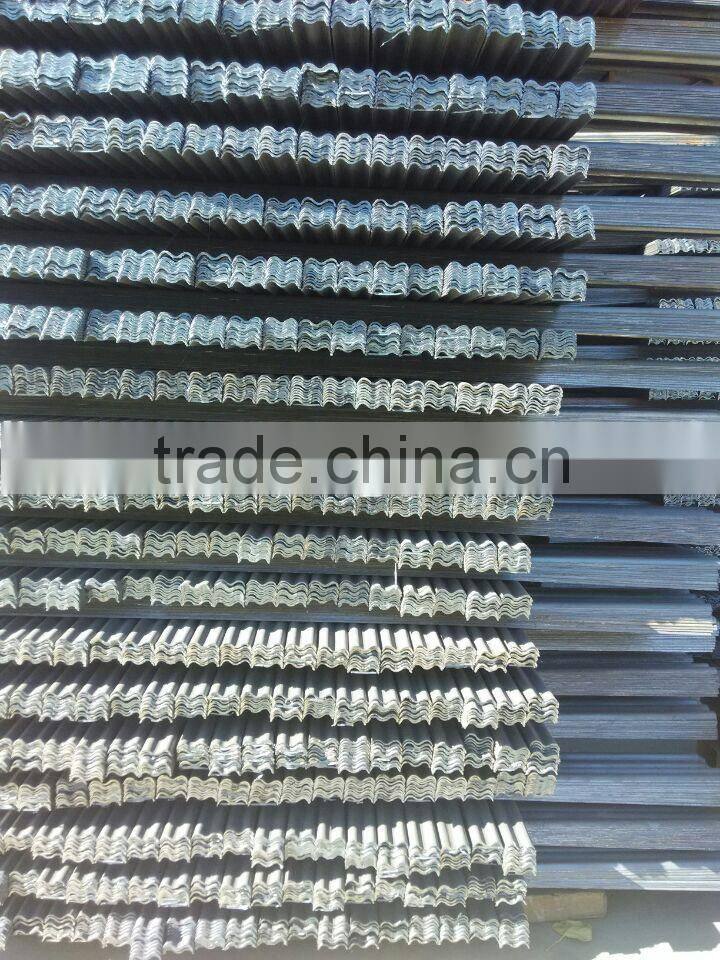

Pales - 3mm thick ‘D’ section or 2mm thick ‘W’ section are the standard. The tops are generally
triple pointed or rounded and notched. 17no per 2.75m bay.
Post of PVC finished galvanized palisade fence :
100mm x 55mm RSJ
102mm x 44mm RSJ
127mm x 76mm RSJ
Depending on height of the fence. Posts installed at 2.75m centers.
Fixings of PVC finished galvanized palisade fence :
M12 permacone nuts and bolts connect the rails to a fish plate that slides through slots in the posts
M12 Cup square bolts with Permacone type nuts (shear off)
All steel palisade products are supplied hot dipped galvanised to give long term weather resist. Palisade can also be powder coated to any RAL colour required.
1.Hot dipped galvanized
2.Polyester Powder Coated
3.Gates - Single Leaf, Double Leaf and Sliding Gates are all available made to measure.
Matching gates are also available, made to your specific requirements.
The quality control of galvanized palisade fence :
