Specifications
Steel Palisade Fencing With Concrete SillPale type::"W "or" D"
Pale Top - Triple Pointed
Frame Material: Metal

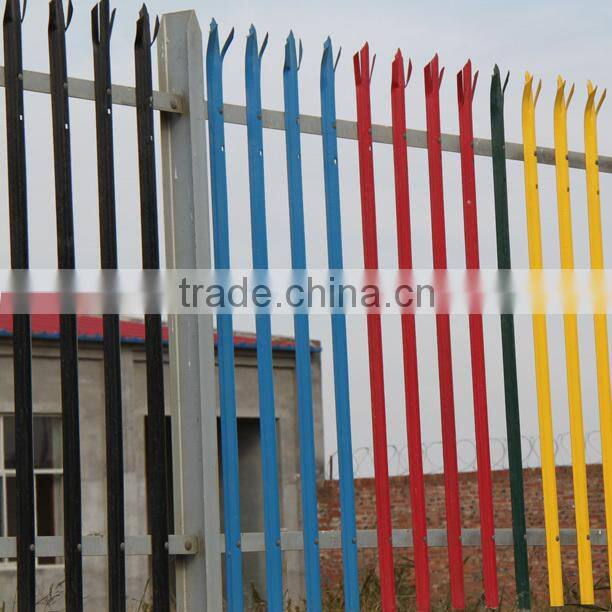

3000mm 'D' or 'W' profile high-security Steel Palisade Fencing With Concrete Sill
The introduction of Steel Palisade Fencing With Concrete Sill :
Palisade fencing is one of fencing series. It is used in England at first. Now palisade fence is widely used at home and abroad. Palisade fencing instead of the brick wall or heavy fence makes your life environment clear. It is widely used because of people's environment pursuit, publicity of personal cleanliness and the pursuit of foreign style. Palisade fencing with beautiful structure and various styles are popular and widely used.
Steel Palisade Fencing With Concrete Sill is ideally used in the following applications:
· Industrial Areas
· Airports
· Railways
· Schools
The advantages of high-security Steel Palisade Fencing With Concrete Sill :
· Maintenance Free
· Suitable for most site conditions
· Available in any height
· Hot Dip Galvanised to British Standard EN ISO 1461 or a colour of your choice
The specification of high-security Steel Palisade Fencing With Concrete Sill :
| Height | Post Dimensions | Rail Dimensions | Support Legs | Corrugated Steel Palisades |
| 1.2m | 102x44 or 100x55mm | 40x40x6mm | 1 | W - 2.0mm or D - 3.0mm |
| 1.5m | 102x44 or 100x55mm | 40x40x6mm | 1 | W - 2.0mm or D - 3.0mm |
| 1.8m | 102x44 or 100x55mm | 40x40x6mm | 1 | W - 2.0mm or D - 3.0mm |
| 2.0m | 102x44 or 100x55mm | 45x45x6mm | 1 | W - 2.0mm or D - 3.0mm |
| 2.1m | 102x44 or 100x55mm | 45x45x6mm | 1 | W - 2.0mm or D - 3.0mm |
| 2.4m | 102x44 or 100x55mm | 45x45x6mm | 1 | W - 2.0mm or D - 3.0mm |
| 2.7m | 102x44 or 100x55mm | 50x50x6mm | 1 | W - 2.0mm or D - 3.0mm |
| 3.0m | 127x76mm | 50x50x6mm | 2 | W - 2.5mm or D - 3.5mm |
| 3.6m | 127x76mm | 50x50x6mm | 2 | W - 2.5mm or D - 3.5mm |
There are a number of designs of 'D' or 'W' Steel Palisade Fencing With Concrete Sill :
D shape pale, rounded top, rounded and notched, single pointed and triple pointed.
W shape pale, rounded top, rounded and notched, single pointed and triple pointed.
Pales - 3mm thick ‘D’ section or 2mm thick ‘W’ section are the standard. The tops are generally
triple pointed or rounded and notched. 17no per 2.75m bay.
Post of 'D' or 'W' Steel Palisade Fencing With Concrete Sill :
100mm x 55mm RSJ
102mm x 44mm RSJ
127mm x 76mm RSJ
Depending on height of the fence. Posts installed at 2.75m centers.
Fixings of 'D' or 'W' Steel Palisade Fencing With Concrete Sill :
M12 permacone nuts and bolts connect the rails to a fish plate that slides through slots in the posts
M12 Cup square bolts with Permacone type nuts (shear off)
All steel palisade products are supplied hot dipped galvanised to give long term weather resist. Palisade can also be powder coated to any RAL colour required.
1.Hot dipped galvanized
2.Polyester Powder Coated
3.Gates - Single Leaf, Double Leaf and Sliding Gates are all available made to measure.
Matching gates are also available, made to your specific requirements.
The quality control of high-security Steel Palisade Fencing With Concrete Sill :
