Double loop security concertina razor barbed wire with pallet

Specifications

Concertina razor barbed wire with pallet
1.ISO9001:2008
quality and good service
3.anti-corrosion
4.good sale team

                 Concertina razor barbed wire with pallet





   Razor barbed wire fencing and razor wire concertina makes the majority of our products. Razor barbed wire fencing is usually made of galvanized steel blade or stainless steel blade. Two pieces of stainless steel razor wire or zinc-coated razor wire can be bounded together by clips to make it stronger. The spiral intersecting barbed wire presents an intersecting shape after opening with beautiful outlook and practical property.

Material

1)  stainless steel wire and sheet

2)  galvanized iron wire and sheet

3)  PVC coated wire and sheet



Specification

Razor Blade Specification
Reference Number	Blade Style	Thickness	Wire Dia	Barb Length	Barb Width	Barb spacing
BTO-10		0.5±0.05	2.5±0.1	12±1	13±1	26±1
BTO-12		0.5±0.05	2.5±0.1	12±1	15±1	26±1
BTO-18		0.5±0.05	2.5±0.1	18±1	15±1	33±1
BTO-22		0.5±0.05	2.5±0.1	22±1	15±1	34±1
BTO-28		0.5±0.05	2.5±0.1	28±1	15±1	34±1
BTO-30		0.5±0.05	2.5±0.1	30±1	18±1	34±1
CBT-60		0.6±0.05	2.5±0.1	60±2	32±1	96±2
CBT-65		0.6±0.05	2.5±0.1	65±2	21±1	100±2



Barbed Tape Wire Specification
Loop Outside Diameter	No. of Loops	Standard Length per Coil	Type	Notes
450mm	33	7-8M	CBT-60.65	Single coil
500mm	56	12-13M	CBT-60.65	Single coil
700mm	56	13-14M	CBT-60.65	Single coil
960mm	56	14-15M	CBT-60.65	Single coil
450mm	56	8-9m(3 CLIPS)	BTO-10.12.18.22.28.30	Cross type
500mm	56	9-10M (3 CLIPS)	BTO-10.12.18.22.28.30	Cross type
600mm	56	10-11M(3 CLIPS)	BTO-10.12.18.22.28.30	Cross type
600mm	56	8-10M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
700mm	56	10-12M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
800mm	56	11-13M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
900mm	56	12-14M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
960mm	56	13-15M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
980mm	56	14-16M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type

                                                                                 Other specification is available



Features

 Compact and rational structure, high safety factor, for the protection of prison and key project .

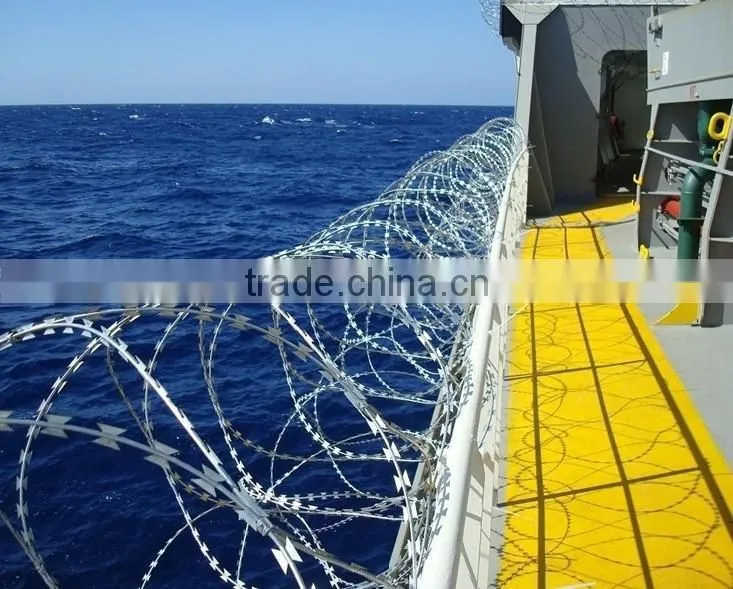

Pictures

 Razor barbed tape /Razor barbed wire mesh is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire. Barbed Tape can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.
