Specifications
Concertion razor wire BTO-221.ISO9001:2008
quality and good service
3.anti-corrosion
4.good sale team
Concertion razor wire BTO-22
1.The material of the concertina razor wire BTO-22
1) stainless steel wire and sheet
2) galvanized iron wire and sheet
3) PVC coated wire and sheet
2.The specification of the concertina razor wire BTO-22
Razor Blade Specification | ||||||
Reference Number |
Blade Style |
Thickness |
Wire Dia |
Barb |
Barb |
Barb |
BTO-10 |
|
0.5±0.05 |
2.5±0.1 |
12±1 |
13±1 |
26±1 |
BTO-12 |
|
0.5±0.05 |
2.5±0.1 |
12±1 |
15±1 |
26±1 |
BTO-18 |
|
0.5±0.05 |
2.5±0.1 |
18±1 |
15±1 |
33±1 |
BTO-22 |
|
0.5±0.05 |
2.5±0.1 |
22±1 |
15±1 |
34±1 |
BTO-28 |
|
0.5±0.05 |
2.5±0.1 |
28±1 |
15±1 |
34±1 |
BTO-30 |
|
0.5±0.05 |
2.5±0.1 |
30±1 |
18±1 |
34±1 |
CBT-60 |
|
0.6±0.05 |
2.5±0.1 |
60±2 |
32±1 |
96±2 |
CBT-65 |
|
0.6±0.05 |
2.5±0.1 |
65±2 |
21±1 |
100±2 |
Barbed Tape Wire Specification | ||||
Loop Outside Diameter |
No. of Loops |
Standard Length per Coil |
Type |
Notes |
450mm |
33 |
7-8M |
CBT-60.65 |
Single coil |
500mm |
56 |
12-13M |
CBT-60.65 |
Single coil |
700mm |
56 |
13-14M |
CBT-60.65 |
Single coil |
960mm |
56 |
14-15M |
CBT-60.65 |
Single coil |
450mm |
56 |
8-9m(3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
500mm |
56 |
9-10M (3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
600mm |
56 |
10-11M(3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
600mm |
56 |
8-10M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
700mm |
56 |
10-12M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
800mm |
56 |
11-13M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
900mm |
56 |
12-14M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
960mm |
56 |
13-15M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
980mm |
56 |
14-16M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
Other specification is available
The introduction of the concertina razor wire BTO-22
Razor barbed wire fencing and razor wire concertina makes the majority of our products. Razor barbed wire fencing is usually made of galvanized steel blade or stainless steel blade. Two pieces of stainless steel razor wire or zinc-coated razor wire can be bounded together by clips to make it stronger. The spiral intersecting barbed wire presents an intersecting shape after opening with beautiful outlook and practical property.
Features: Compact and rational structure, high safety factor, for the protection of prison and key project .

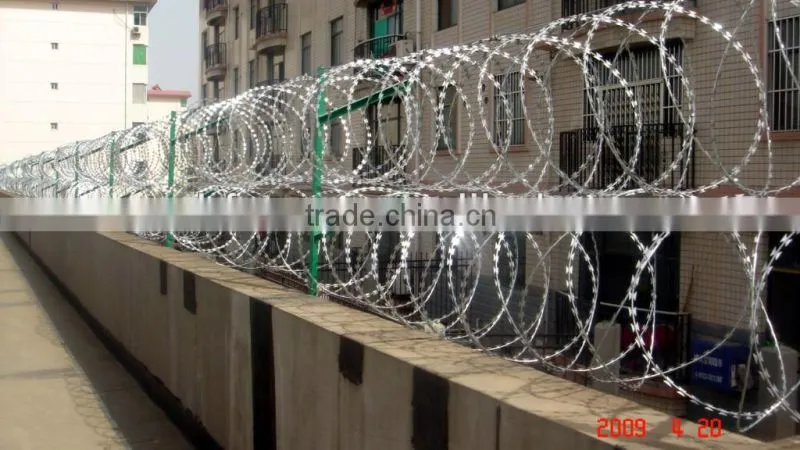

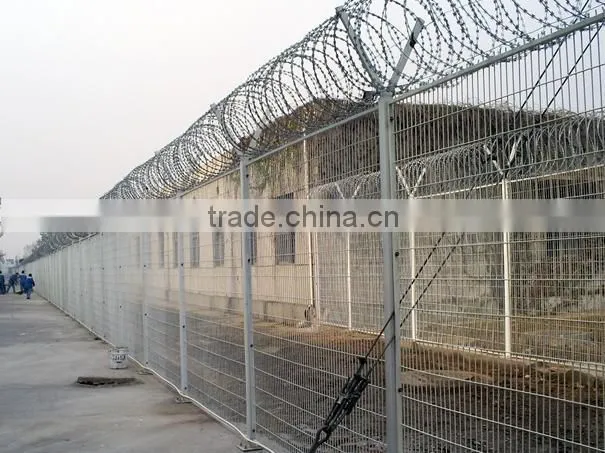

3.The picture of the concertina razor wire BTO-22
4.The production of the concertina razor wire BTO-22
