Home > Products > Metal wire > Galvanized Steel Coiled Bulk Barbed Wire
Galvanized Steel Coiled Bulk Barbed Wire
- Tianjin Xin'gang
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | FANSI | |
| Model Number | FS-BW--2-047 | Material | Steel Wire | |
| Surface Treatment | Galvanized | Type | Barbed Wire Mesh | |
| Razor Type | Other, No razor |
Product Description
Specifications
Bulk barbed wire1.ISO9001:2008
fessional work team
3.high quality
4.low carbon steel wire
Bulk barbed wire
The discription of the bulk barbed wire
Barbed Wire is a kind of modern security fencing materials fabricated with high-tensile wire. Barbed Wire can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.
Currently, Barbed Wire been widely used by many countries in military field, prisons, detention houses, government buildings and other national security facilities. Recently years, barbed tape has apparently become the most popular high-class fencing wire for not only military and national security applications, but also for cottage and society fence, and other private buildings.
Parameter
Type | Wire Gauge (SWG) | Barb Distance (cm) | Barb Length (cm) | |
Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire | 10# x 12# | 7.5-15 | 1.5-3 | |
12# x 12# | ||||
12# x 14# | ||||
14# x 14# | ||||
14# x 16# | ||||
16# x 16# | ||||
16# x 18# | ||||
PVC coated barbed wire; PE barbed wire | before coating | after coating | 7.5-15 | 1.5-3 |
1.0mm-3.5mm | 1.4mm-4.0mm | |||
BWG11#-20# | BWG8#-17# | |||
SWG11#-20# | SWG8#-17# | |||
| PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request. |
|
| |
Wire Gauge | Length (m) | |||
Barb Spacing 3" | Barb Spacing 4" | Barb Spacing 5" | Barb Spacing 6" | |
12X12 | 6.0617 | 6.7590 | 7.2700 | 7.6376 |
12X14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
12-1/2X12-1/2 | 6.9223 | 7.7190 | 8.3022 | 8.7221 |
12-1/2X14 | 8.1096 | 8.814 | 9.2242 | 9.5620 |
13X13 | 7.9808 | 8.899 | 9.5721 | 10.0553 |
13X14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
13-1/2X14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 |
14X14 | 10.4569 | 11.6590 | 12.5423 | 13.1752 |
14-1/2X14-1/2 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
15X15 | 13.8927 | 15.4942 | 16.6666 | 17.5070 |
15-1/2X15-1/2 | 15.3491 | 17.1144 | 18.4060 | 19.3386 |
materials :1.electric galvanized wire 2.hot dipped galvanized wire 3.PVC coated wire

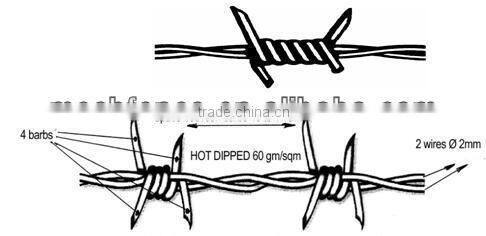

weave types 1.single twisted barbed wire
2.double twisted barbed wire
1) traditional twisted barbed wire
2) reverse twisted barbed wire
features : Barbed wire offers a great protection against corrosion and oxidation caused by the atmosphere. Its high resistance allows greater spacing between the fencing posts.
pictures
Waiting for your enquiry
Contact Us
- Anping Fansi Metal Wire Mesh Factory
- Contact nameMissy Chen Chat Now
- Phone0086-318-7997499
- AddressGuoxi Village development zone,Nanhuan Road,Anping county, Hengshui, Hebei
