Specifications
High tensile galvanized barbed wire1.ISO9001:2008
fessional work team
3.high quality
4.low carbon steel wire

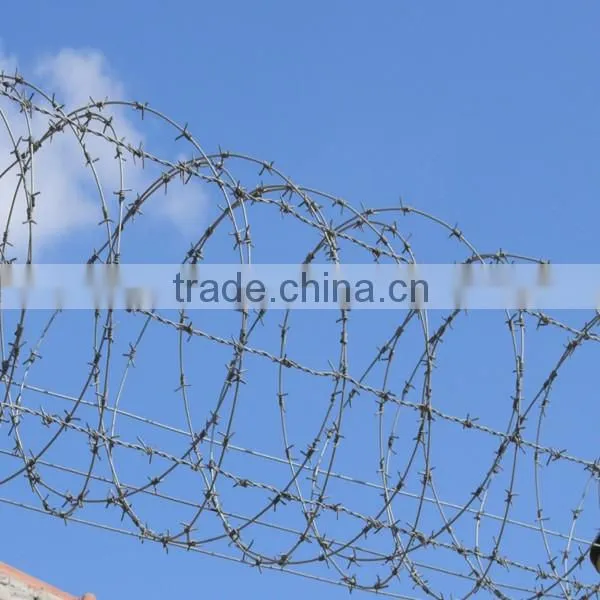

High tensile galvanized barbed wire
The parameter of the barbed wire
Type |
Wire Gauge (SWG) |
Barb Distance (cm) |
Barb Length (cm) |
|
Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire |
10# x 12# |
7.5-15 |
1.5-3 |
|
12# x 12# | ||||
12# x 14# | ||||
14# x 14# | ||||
14# x 16# | ||||
16# x 16# | ||||
16# x 18# | ||||
PVC coated barbed wire; PE barbed wire |
before coating |
after coating |
7.5-15 |
1.5-3 |
1.0mm-3.5mm |
1.4mm-4.0mm |
|||
BWG11#-20# |
BWG8#-17# |
|||
SWG11#-20# |
SWG8#-17# |
|||
|
PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request. |
|
|
|
Wire Gauge |
Length (m) |
|||
Barb Spacing 3" |
Barb Spacing 4" |
Barb Spacing 5" |
Barb Spacing 6" |
|
12X12 |
6.0617 |
6.7590 |
7.2700 |
7.6376 |
12X14 |
7.3335 |
7.9051 |
8.3015 |
8.5741 |
12-1/2X12-1/2 |
6.9223 |
7.7190 |
8.3022 |
8.7221 |
12-1/2X14 |
8.1096 |
8.814 |
9.2242 |
9.5620 |
13X13 |
7.9808 |
8.899 |
9.5721 |
10.0553 |
13X14 |
8.8448 |
9.6899 |
10.2923 |
10.7146 |
13-1/2X14 |
9.6079 |
10.6134 |
11.4705 |
11.8553 |
14X14 |
10.4569 |
11.6590 |
12.5423 |
13.1752 |
14-1/2X14-1/2 |
11.9875 |
13.3671 |
14.3781 |
15.1034 |
15X15 |
13.8927 |
15.4942 |
16.6666 |
17.5070 |
15-1/2X15-1/2 |
15.3491 |
17.1144 |
18.4060 |
19.3386 |
The materials of the barbed wire
1.electric galvanized wire
2.hot dipped galvanized wire
3.PVC coated wire

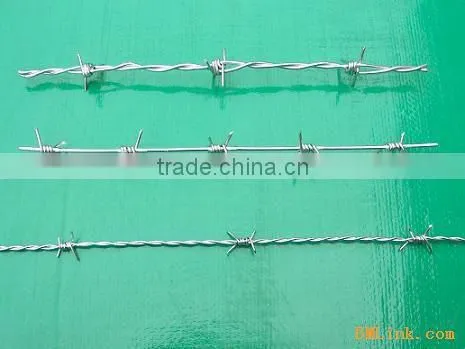

The weave types of the barbed wire
1.single twisted barbed wire
2.double twisted barbed wire
1) traditional twisted barbed wire
2) reverse twisted barbed wire
The features of the barbed wire
Barbed wire offers a great protection against corrosion and oxidation caused by the atmosphere. Its high resistance allows greater spacing between the fencing posts.

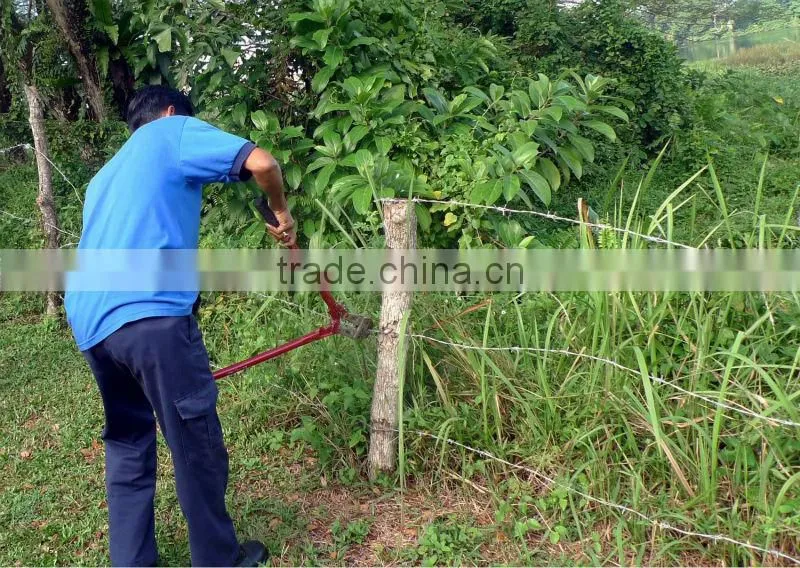

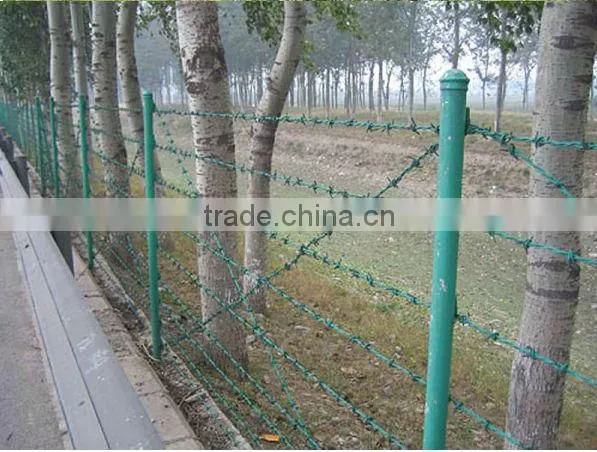

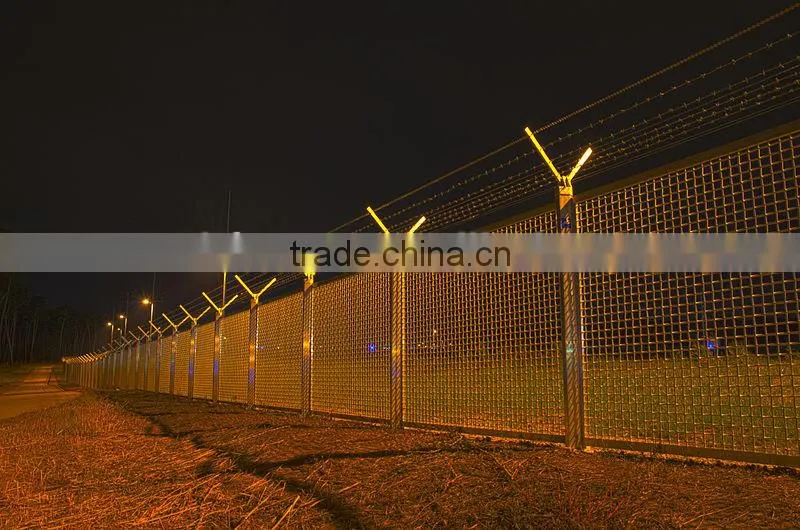

The usage of the barbed wire
1. the protection net in industry
2.agriculture,animal husbandy,dwelling houses
3.plantation of fencing,grass boudary
4. ranch and livestock farn, detention houses

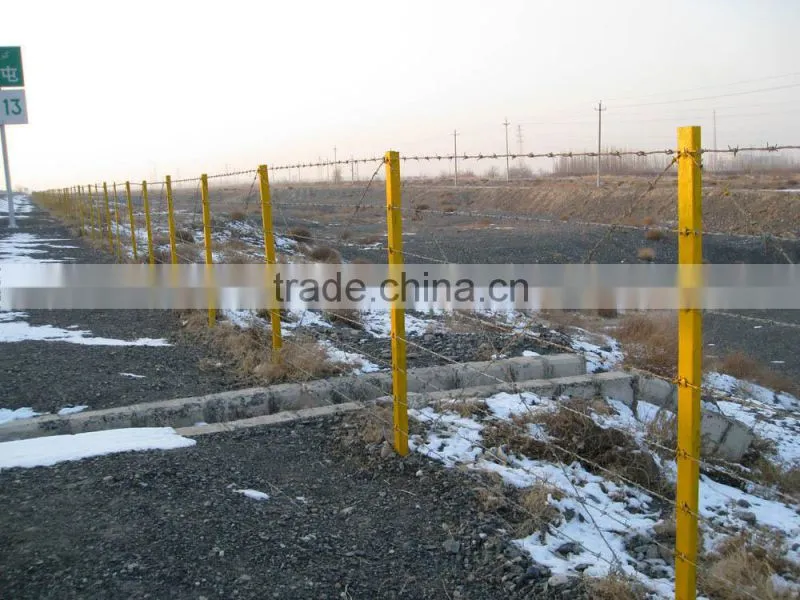

5.railways and highways

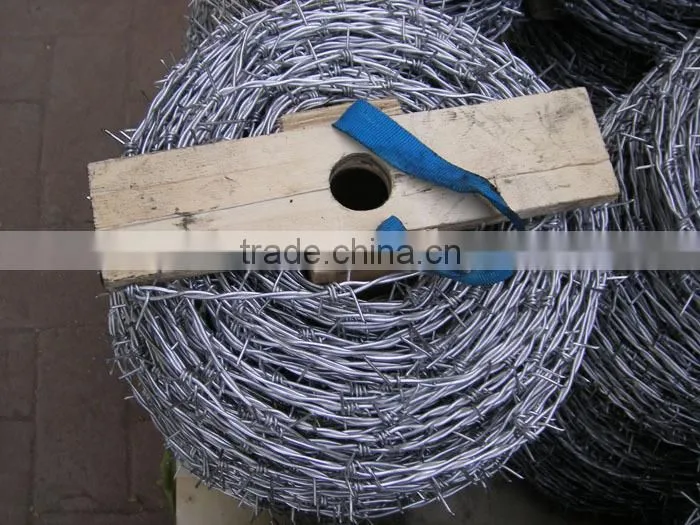

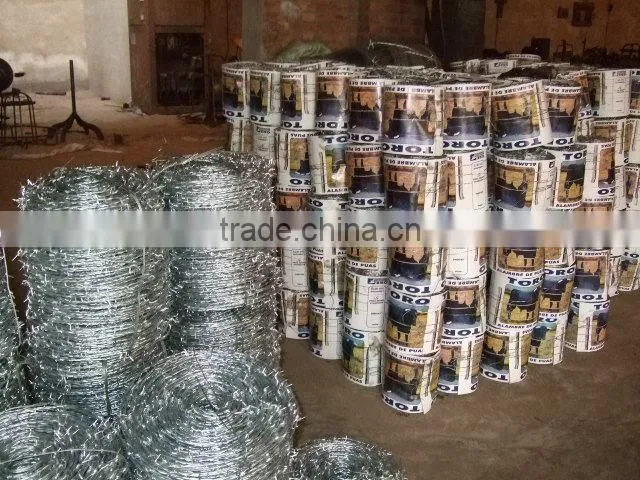

The package of the barbed wire
