Specifications
Cheap barbed wire(weight 25kg per coil )ISO9001:2008
Wire:gauge12-18
tensile strength:0.3-2kn
Bard spacing:3''-6''
Cheap barbed wire(weight 25kg per coil )

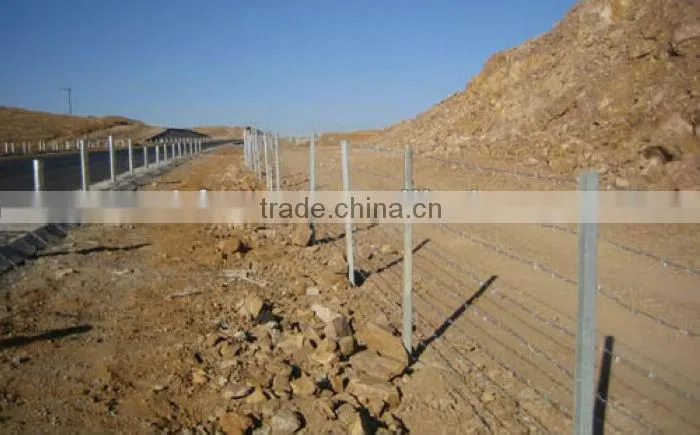

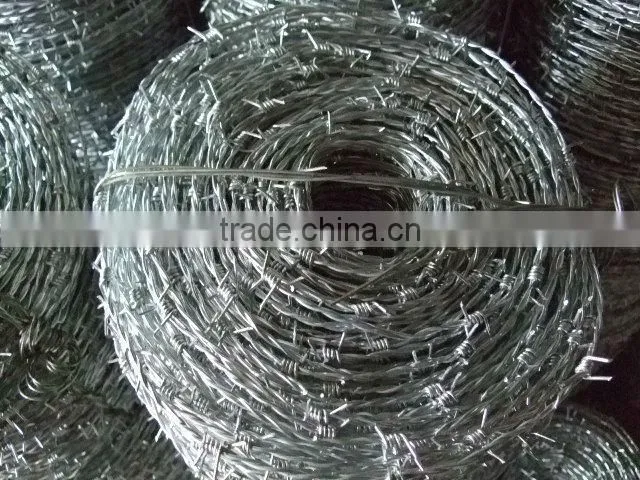

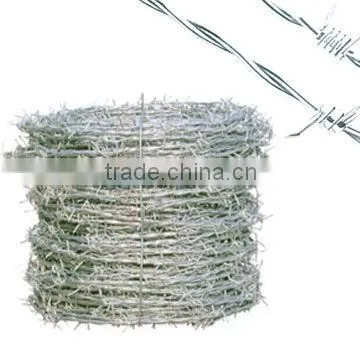

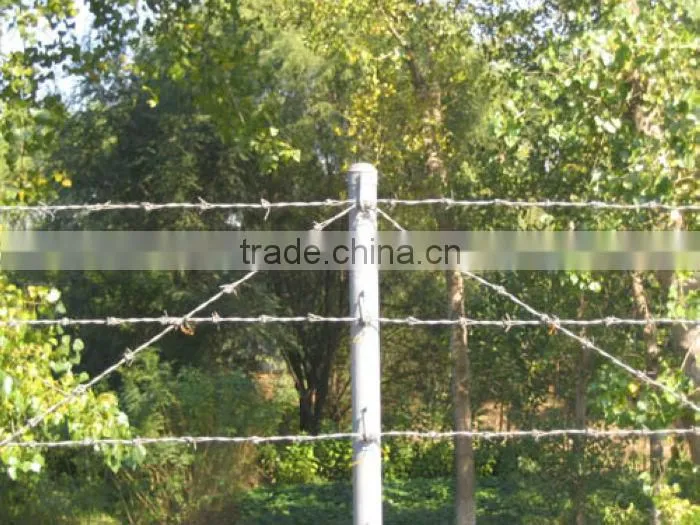

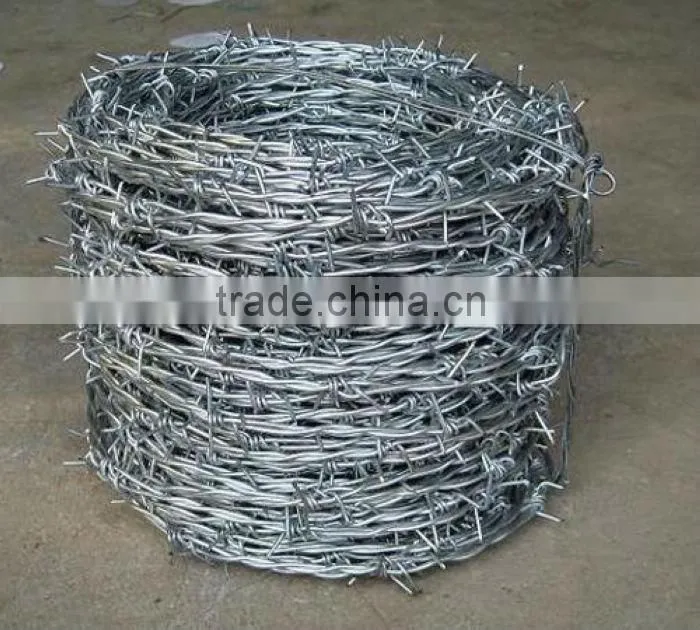

Galvanized Barbed wire
Galvanized Barbed Iron Wire in IOWA type has 2 strands and 4 points. Barbs' distance can be 3-6 inches with a tolerance at 1/2" less or more.
Patterns Available for Galvanized Barbed Wire:
1.Single Twisted Barbed Wire
2.Double Twisted Barbed Wire
1)Traditional Twisted Barbed Wire
2)Reverse Twisted Barbed Wire
Features: Galvanized barbed wire offers a great protection against corrosion and oxidation caused by the atmosphere. Its high resistance allows greater spacing between the fencing posts.
Galvanized Barbed Wire is suitable for industry, agriculture, animal husbandry, dwelling house, plantation or fencing.

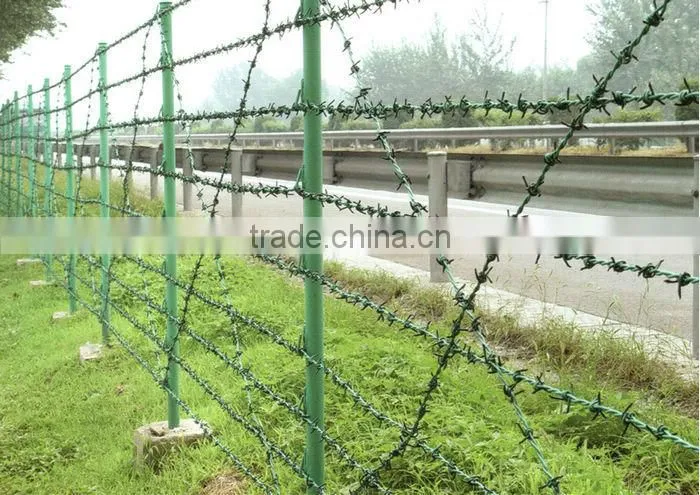

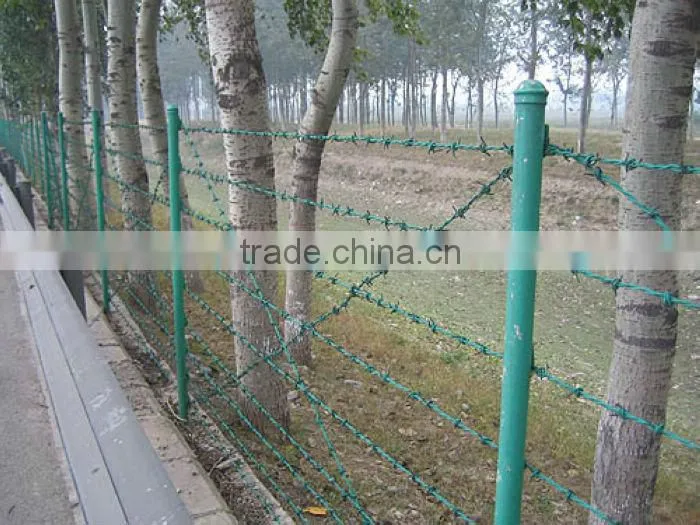

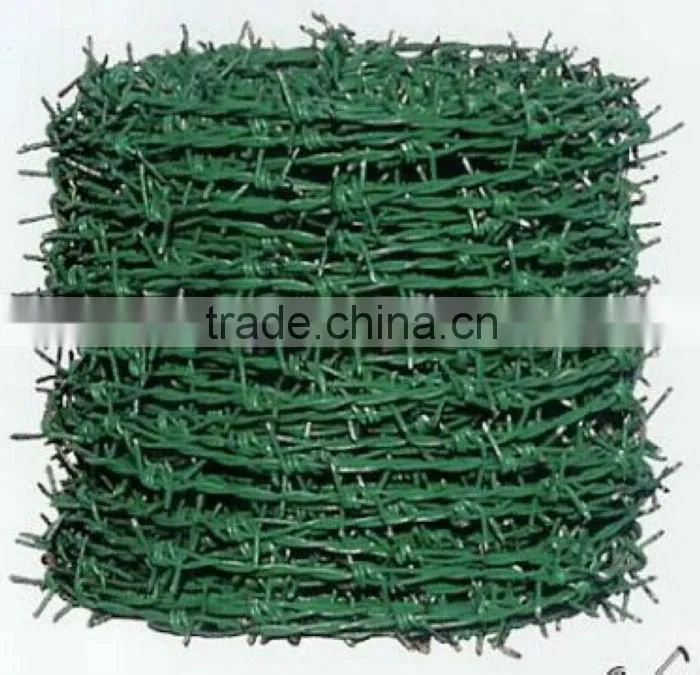

PVC Coated Barbed Wire
We offer plastic coated barbed wire in different colors, mostly green coated.
Technical Info of PVC Coated Barbed Iron Wire:
Core of PVC Coated Barbed Iron Wire can be galvanized iron wire or black annealed iron wire.
Colors: A variety of colors like green, blue, yellow, orange, gray, is available with PVC Coated Barbed Iron Wire produced by us.
Tensile strength of Standard PVC Coated Barbed Iron Wire is 30-45 kgs./sq.mm.
Packing: In coil of 25 kilos or 50 kilos net, lined with P.V.C strips, then wrapped with P.V.C or hessian cloth.

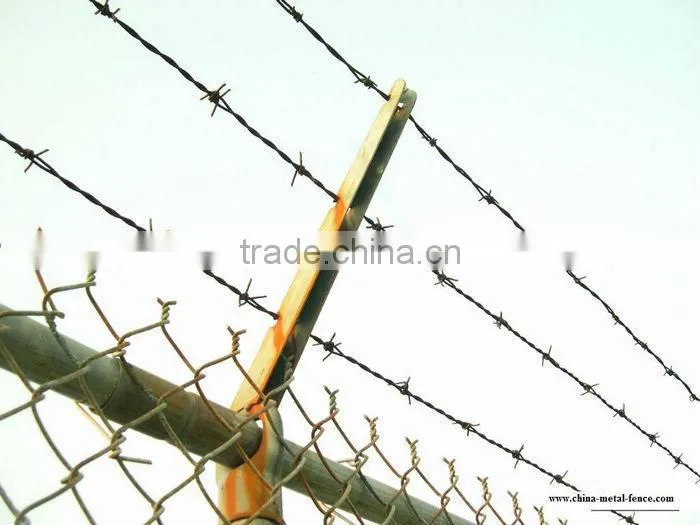

Barbed Wire Uses: Barbed wire can be widely used as accessories for woven wires fences to form a fencing system or security system. It is called barbed wire fences or barbed obstacles when it is used simply by itself along the wall or the building to give a kind of protection. Barbed wire is also written as barbed tape as it is always used in a line to form a kind of tape.
Type |
Wire Gauge (SWG) |
Barb Distance (cm) |
Barb Length (cm) |
|
Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire |
10# x 12# |
7.5-15 |
1.5-3 |
|
12# x 12# | ||||
12# x 14# | ||||
14# x 14# | ||||
14# x 16# | ||||
16# x 16# | ||||
16# x 18# | ||||
PVC coated barbed wire; PE barbed wire |
before coating |
after coating |
7.5-15 |
1.5-3 |
1.0mm-3.5mm |
1.4mm-4.0mm |
|||
BWG11#-20# |
BWG8#-17# |
|||
SWG11#-20# |
SWG8#-17# |
|||
|
PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request. |
|
|
|
Wire Gauge |
Length (m) |
|||
Barb Spacing 3" |
Barb Spacing 4" |
Barb Spacing 5" |
Barb Spacing 6" |
|
12X12 |
6.0617 |
6.7590 |
7.2700 |
7.6376 |
12X14 |
7.3335 |
7.9051 |
8.3015 |
8.5741 |
12-1/2X12-1/2 |
6.9223 |
7.7190 |
8.3022 |
8.7221 |
12-1/2X14 |
8.1096 |
8.814 |
9.2242 |
9.5620 |
13X13 |
7.9808 |
8.899 |
9.5721 |
10.0553 |
13X14 |
8.8448 |
9.6899 |
10.2923 |
10.7146 |
13-1/2X14 |
9.6079 |
10.6134 |
11.4705 |
11.8553 |
14X14 |
10.4569 |
11.6590 |
12.5423 |
13.1752 |
14-1/2X14-1/2 |
11.9875 |
13.3671 |
14.3781 |
15.1034 |
15X15 |
13.8927 |
15.4942 |
16.6666 |
17.5070 |
15-1/2X15-1/2 |
15.3491 |
17.1144 |
18.4060 |
19.3386 |

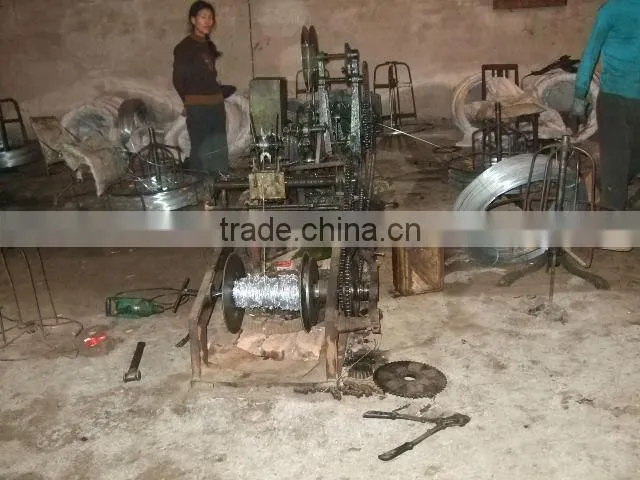

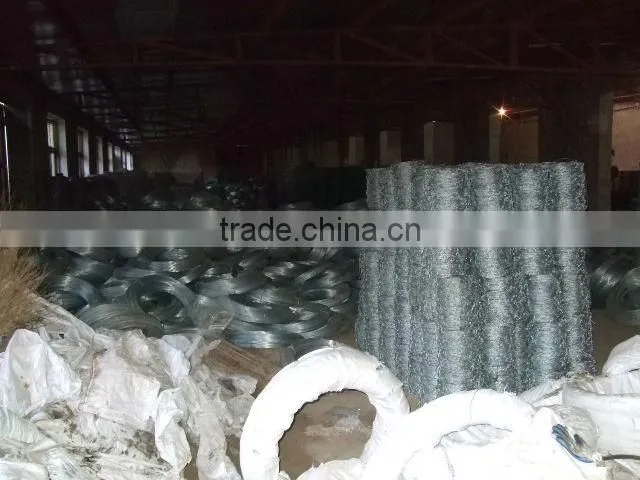

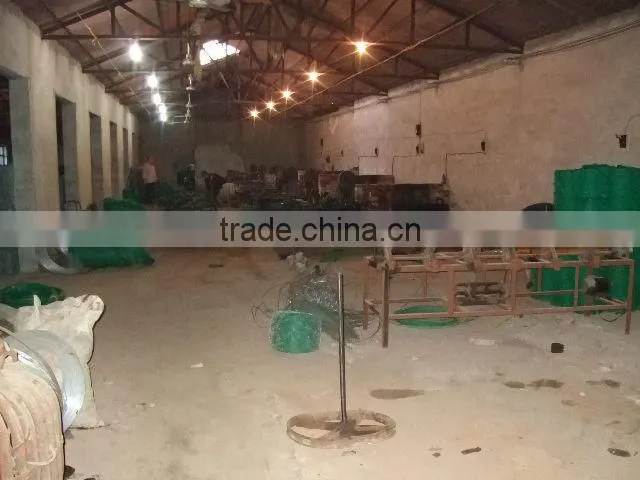

Workshops

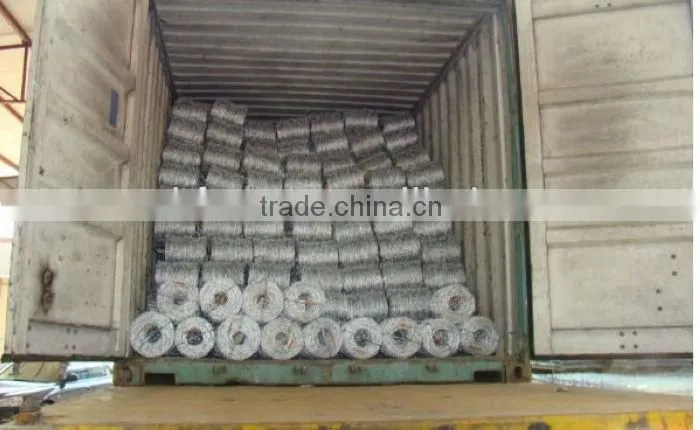

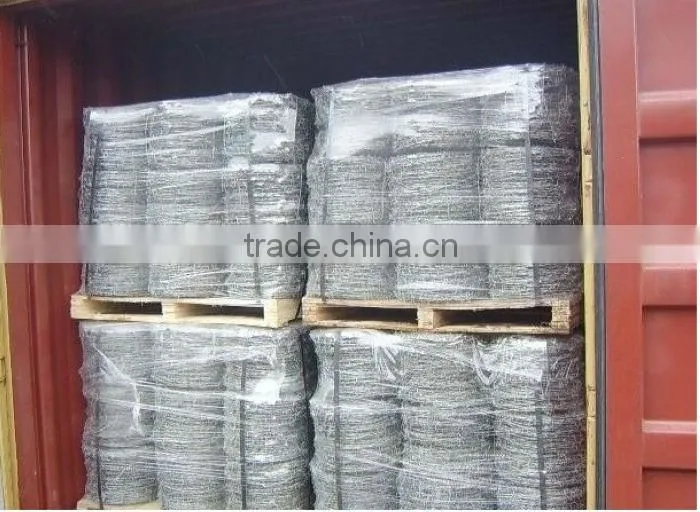

Container loading
