Specifications
hot 2.5m portable safety Road metal barriers
portable Road barriers
safety Road barriers
hot Road barriers
CE IAF ISO9001
Fully Hot Dipped Galvanized steel tube vertical for large areas crowd control barriers
Road barriers'application
Road barriers, also known as pedestrian barrier, is an effective crowd control and site demarcation product extensively used in public areas, such as event, sport venue, public rallies, demonstration, outdoor festival, concerts. They are considered versatile with the following functions:
- Direct pedestrian traffic.
- Keep the crowd in a designated area.
- Protect cordoning off restricted areas.
- Designate space for lines.
- Control large gatherings.
- Deter motorists and pedestrian entering.
- Create allocated walkways.
- Also can be used at construction sites and road works
Why to choose us?
Three types of bases:The barriers are composed of crowd control panels and barrier bases which are welded or bolted to the barrier. Our crowd control barriers are manufactured with fix base, flat base or bridge base as shown in the picture:
Road barriers CCB-001
Road barriers CCB-002
Road barriers CCB-003
Road barriers CCB-1:
- With fixed leg welded to the frame permanently.
- Ideal for public event areas where the speed of installation, dismantling and high security are the main concerns.
- Perfect for directing foot traffic.
Road barriers CCB-2:
- With removal and replaceable flat legs bolted on the panels
- Easy storage, transportation and stacking together.
- Much more stable and safer.
- Flat leg design minimizes the trip hazard.
Road barriers CCB-3:
- Bridge shaped legs
- Removal and replaceable bases
- The most stable type
Interlocking designThe Road barriers can be attached to each other in a line or take corners of up to 90 degrees.Once the
barriers interlocked, it is not easy to topple them over. Panels with single or double hooks are available as your request.
Normally, the two hooks can be manufactured 15 or 25 inches apart Road barrierstake Hand welded with high strength.
crossover points of crowd control barriers are 360 degrees welded complying with advanced welding technology. Road
barriers take Portable frame for handling . Before being interlocked,the Road barrierscan be lifted just by individuals. Its
portable character makes the panels easier to handle, install and transport.
Road barriers take hot dipped galvanized for rust resistance.We select the best galvanization way for the super rust and
corrosion resistance-that is hot dipped galvanized after welding.The thickness of the zinc layer is no less than 42 microns.
After galvanization, they are more anti-weather and durable with a longer service time.If you are in a tight budget, other
galvanization ways are also available.
Road barriers take PVC coating with various colorsThe crowd control barrier can be PVC coated in any color to fit your
scheme and provide aesthetic effects. Details of Road barriers:Material: gauge 16 tubular steelWelded way: 360 degrees
hand welded. Technology standard: hot dipped galvanized after weldingZinc standard: 42 microns, 300g/m2 Specification
of Road barriers:
Panel size |
Outer frame |
Upright tube |
Spacing |
|||
Length (mm) |
Height (mm) |
Outer diameter (mm) |
Thickness (mm) |
Outer diameter (mm) |
Thickness (mm) |
From 100mm to 200mm as your request |
2000 |
1500 |
38 |
2 |
16 |
1.5 |
|
2015 |
1100 |
38 |
1.2 |
12 |
0.7 |
|
2200 |
1100 |
25 |
2 |
20 |
1 |
|
2400 |
1100 |
25 |
2 |
20 |
1 |
|
2400 |
1100 |
38 |
1.2 |
16 |
0.7 |
|
2400 |
1200 |
40 |
2 |
20 |
1 |
|
2500 |
1100 |
25 |
2 |
20 |
1 |
|
2500 |
1100 |
26 |
2.5 |
15 |
1.5 |
|
2500 |
1100 |
38 |
2 |
16 |
1 |
|
2500 |
1150 |
35 |
1 |
16 |
1 |
|
2500 |
1100 |
38 |
2 |
16 |
1 |
|
Road barriers are ideal for directing pedestrians

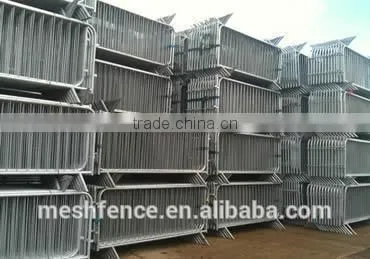

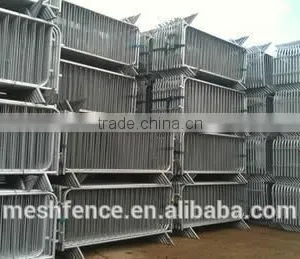

Road barriers are stacking together and waiting for delivery.
PVC coated, special designed Road barriers are also available.
