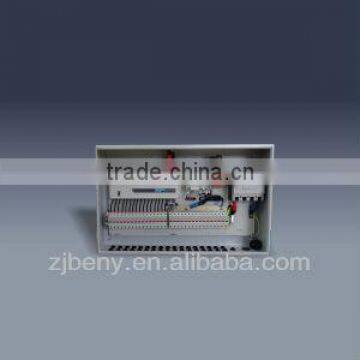

16 string solar combiner box

Specifications

easy installation,
1.Max Voltage: 1000VDC.
2.the component including DC isolator/fuse/spd approved by TUV ,SAA,CE,CB ROSH



         solar combiner box for PV application component

•     Wide range DC input, the maximum open circuit voltage reaches 1000VDC
• Remote monitor, RS485 communication optional
• Simplify PV system wiring
• Comply with the requirement of outdoor installation
• PV only DC fuse
• PV only SPD
• Customized on customer's demand



• solar combiner box brief specification

  DC Moulded  Circuit Breaker: BD-250
• DC Moulded Switch Disconnector: BDH-250
• DC Switch Disconnector: BH-250
• DC Surge Protector Device: BU-40/3
• DC Fuse: BR-30
• Monitoring Device
• Power-supply Mould

                 solar combiner Solutions









solar combiner technical data



1.The PV array series connection maximum input voltage: DC1000V

2. The PV array series connection maximum input current: 1-30A

3. Number of the input loop: According to the requirements

4. The rated current of the fuse: 1-30A

5. The maximum output current: N*(1-30)A

6. The input array positive and negative pole connection wiring diameter: 6mm ­­­­­­

7. The output positive and negative pole/earth wire diameter: 35mm/16mm

8. The permitted input current of each circuit: 1-30A/1.56

9. The communication supply voltage: DC8V~30V

10. Communication method: RS485

11. Weight: 20kg

12.Dimensions (L*W*H):800mm×520mm×190mm
