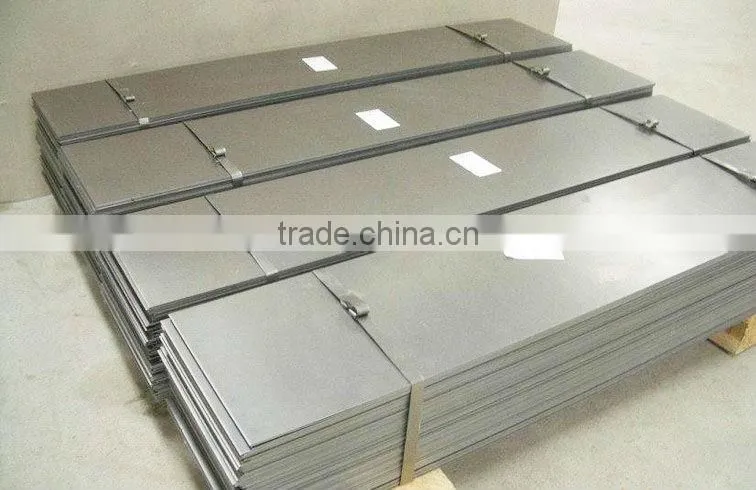

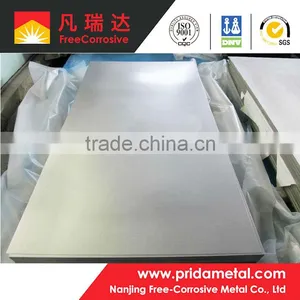

ASTM B265 sheet titanium for textile industry

Specifications

Titanium sheet
a.Ti(min):99.9%(percent)
b.ISO 9001:2008
c.Third Party Inspection
d.Mill test report Provided

ASTM B265 sheet titanium for textile industry

Product Details:

Item name:  titanium 6al4v / ti6al4v sheets for industrial

Material:alloy titanium gr5(Ti-6al4v)

Standard: ASTM B265, ASME SB265,ASTM F136

Dimension:

(0.3-5mm)*Width(<=1000mm)*Length(<=4000mm)
(5-30mm)*Width(<=2000mm)*Length(<=6000mm)
(30-100mm)*Width(<=3000mm)*Length(<=4000mm)

Quality Control and Service:

All of our products are detected by ultrasound making sure that no defects inside.

And you can return within a month if you are not satisfied with our products.

Delivery time:

a.in stock:within 2 days

b.less than 50 tons:15 days

c.more than 50 tons:according to the contract.

Material Performance:

GR1     used in deep drawing parts.

GR2     used in commercial.

GR3     used in pressure vessel.

GR4     in some fittings parts and fastening part,not complex.

GR5     Ti6Al4V used in titanium alloys

GR7     add palladium, most excellent corrosion-resistence.

GR9     Ti3Al2.5V most wildely used in golf club and bicycle girder.

GR12    similar to GR7, high wear resistance

GR23    TC4ELI  or GR5ELI,used in medical appliance.



Chemical Composition:

Grade	ELEMENT COMPOSITION.%(max)
	Ti	Al	V	Fe	C	N	H	O	Other
1	Bal	_	_	0.20	0.08	0.03	0.015	0.18	0.4
2	Bal	_	_	0.20	0.08	0.03	0.015	0.25	0.4
5	Bal	5.5~6.75	3.5~4.5	0.40	0.08	0.05	0.015	0.20	0.4
7	Bal	Pd (0.12~0.25)	_	0.30	0.08	0.03	0.015	0.25	0.4
9	Bal	2.5~3.5	2.0~3.0	0.25	0.08	0.03	0.015	0.25	0.4
23	Bal	5.5~6.5	3.5~4.5	0.25	0.08	0.03	0.0125	0.13	0.4
38	Bal	3.5~4.5	2.0~3.0	1.2~1.8	0.08	0.03	0.015	0.2~0.3	0.4



Mechanical Properties

Grade	Tensil strength(min)		Yeild strength(min)		Elongation(%)
	ksi	MPa	ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
9	90	620	70	438	15
23	115	793	110	759	10
38	130	895	115	794	10



Products Process:

Titanium sponge----spindle--forging --rolling---Shearing machines---ultrasonic

flaw detection---titanium sheet



Packing and Shipping:



Package: Plastic bags and foam paper as inside,Wooden case as outside



Shipping: We offer air shipping(Like DHL,UPS,Fedex,TNT or plane air shipping)



and shipping by sea.



About Inquiry:

If you want to enquire,it's better to include the standard,dimensions and performance.

Then we can quickly reply to you.We accept the trial order for a long time cooperation.
