Specifications

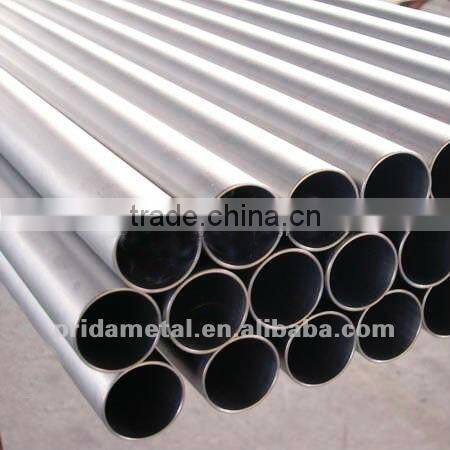

Titanium Pipe/Tube for Medical or Aerospace Application1. Annealed (M)
2. ASTM B 337/338/861/862
3. ASTM F 67/136
4. 3*
Gr1 Titanium pipe
Specifications:
1:Grade: Gr1Gr2
2:Size:0.5-4.5*6-80*500-9000mm
3:Standard: ASTM B337 ASTM B338
4:Feature:
1)high strength.
2)fine corrosion resistance.
3)low density, light weight.
4)high/low temperature resistance.
5)high resistance to strong acid.alkali
5:Application:heat exchanger.chemical equipements. environmental protection equipment cooling pipe titanium heat pipe Electroplating equipment ring precision instruments
6:Quality And test: Strict test is indispensible,because we must insure our clients get the best product
Table 1 cold rolled seamless titanium tube
Grade | Supply status | OD/mm | WT/mm |
Gr1 Gr2 Gr3 Gr7 Gr12 |
M | >10-15 | 0.5 0.6 0.8 1.0 1.25 1.5 2.0 |
>15-20 | 0.6 0.8 1.0 1.25 1.5 2.0 2.5 | ||
>20-30 | 0.6 0.8 1.0 1.25 1.5 2.0 2.5 | ||
>30-40 | 1.25 1.5 2.0 2.5 3.0 | ||
>40-50 | 1.25 1.5 2.0 2.5 3.0 3.5 | ||
>50-60 | 1.5 2.0 2.5 3.0 3.5 4.0 | ||
>60-80 | 2.0 2.5 3.0 3.5 4.0 4.5 |
Table 2 weld titanium tube
Grade | Supply status | OD/mm | WT/mm |
Gr1 Gr2 Gr3 Gr7 Gr12 |
M | 16 | 0.5 0.6 0.8 1.0 |
19 | 0.5 0.6 0.8 1.0 1.25 | ||
25.27 | 0.5 0.6 0.8 1.0 1.25 1.5 | ||
31.32.33 | 0.8 1.0 1.25 1.5 2.0 | ||
38 | 1.5 2.0 2.5 | ||
50 | 2.0 2.5 | ||
63 | 2.0 2.5 |
Table 3 weld-rolled titanium tube
Grade | Supply status | OD/mm | WT/mm |
Gr1 Gr2 Gr3 Gr7 Gr12 |
M | 6-10 | 0.5 0.6 0.8 1.0 1.25 |
>10-15 | 0.5 0.6 0.8 1.0 1.25 1.5 | ||
>15-30 | 0.5 0.6 0.8 1.0 1.25 1.5 2.0 |
Table 4 seamless titanium tube and weld-rolled titanium tube
category |
Seamless titanium tube |
Weld-rolled | |||
OD<15 |
OD>15 | OD | |||
WT<2.0 | WT>2.0-4.5 | 0.5-0.8 | >0.8-2.0 | ||
Length(mm) | 500-4000 | 500-9000 | 500-6000 | 500-800 | 500-5000 |
Table 5 weld titanium tube
category | Weld titanium tube | ||
WT 0.5-1.25 | WT > 1.25-2.0 | WT >2.0-2.5 | |
Length(mm) | 500-15000 | 500-6000 | 500-4000 |
Product Advantage: First -class product . Most reasonable price The fastest delivery
Reminding: our company provide various material and different size titanium tubes. We are the manufacture of titanium product. We will provide you best quality product and competitive price and quickest delivery time. If you have any inquiry about titanium tube, please let me know. I will be very pleased to solve your problem. Waiting for your inquiry!
