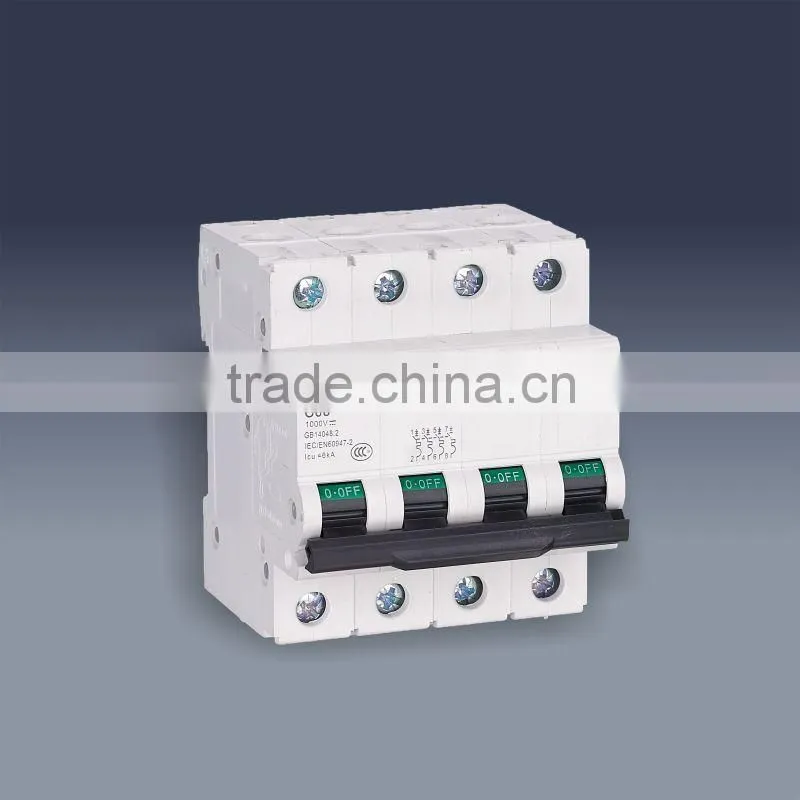

Miniature Circuit Breakers DC MCBS-BB1-63 for Photovoltaic Applications

Name: Miniature Circuit Breakers DC MCBS-BB1-63 for Photovoltaic Applications
Brand: ZJ BENY
SKU: 103592103

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

China

Brand Name:

ZJ BENY

Model Number:

BB1-63

Zhejiang Benyi Electrical Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO OR SHANGHAI PORT

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name ZJ BENY

Model Number BB1-63

Type Mini

Poles Number Other, 1P,2P,3P,4P

Specifications

High short-circuit/breaking capacity
protection functions:overload,short circuit ,unfrequent operation and isolation

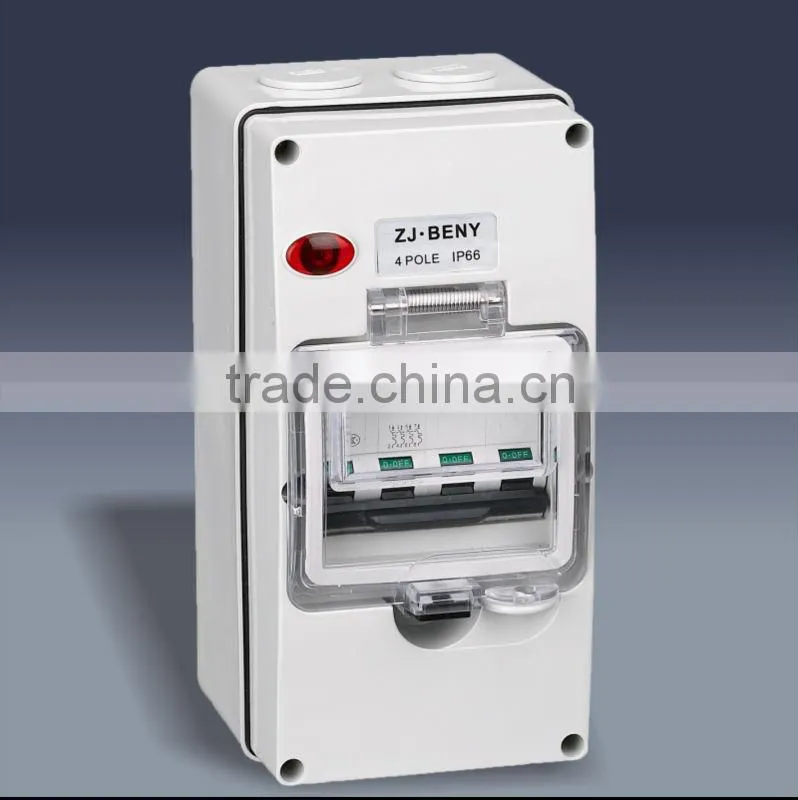

Miniature circuit breaker enclosure

application:

Specialised MCB for DC applications

Especially suitable to protect cables between solar cells and inverters in photovoltaic generation system

Feature:

Circuit indicator window allowing clear labeling of circuits

High short-circuit/breaking capacity

Protection function:overload,short circuit,unfrequent operation and loadbreak disconnector

Specification

BB1-63 : for operating voltages 220V-800 DC

Compliant with IEC60898,GB10963 ISO9001

Current ratings: 1A ,2A,3A,4A,6A,10A,16A,20A,25A,32A,40A,50A to 63 A

Type B,C and D tripping characteristics (details available on request)

Breaking capacities up to 10 kA

Miniature Circuit Breakers DC MCBS-BB1-63 Tripe characteristic

Trip Type	Application Introduction	Trip Rated Current In(A)	Instantaneous Trip Range
B Type	protect pure resistive load and sense light system	1-63A	3~5 In
C Type	protect inductive load and sense light system	1-63A	5-10 In
D Type	Protect high inductive load and the great staring current's impact load(such as Motor,Transformer ect)	1-63A	10-14In

Miniature Circuit Breakers DC MCBS-BB1-63 Tripe technical data

Type	BB1-63 MIniature circuit breaker
poles	1p,2p,3p,4p available
Rated current	63A
rated insulation voltage	1000V
Rated impulse withstand voltage	4KV
Instantaneous trip curve	C/K
Rated operating voltage	DC 220V 440V 630V 800V
Rated current	DC 1A ,2A,3A,4A,6A,10A,16A,20A,25A,32A,40A,50Ato 63 A
Breaking type	H
Ultimate breaking capacity/Run Breaking capacity	10/100%
mechanical endurance	20000 cycles
Electrical endurance	2500 cycles
Housing Material	Nylon

Connection &installation
Protection level	Terminal:IP20;SILE:IP40
Installation	DIN Standard rail
Terminal capacity	10-35 square millimetre
Operating Temperature range	–30°C~+70°C
Resist wet &heat	2 types
operating altitude	2000m
Relative humidity	95% ,20°C~40°C;50% ,40°C
pollution level	2
Installation environment	the place where without obvious shock and impact
Installation category	III
