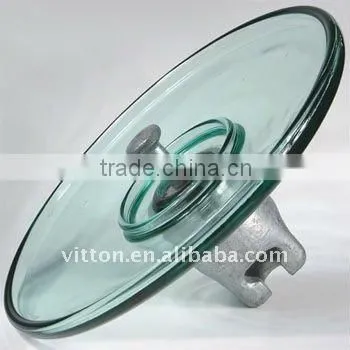

Toughened Glass Insulator
Negotiable
/ Unit
2000 Units(Min.Order)
- 0 per Month
- T/T Credit Card
You May Like
- Wenzhou Yika 7.2KV High Voltage Fuse 63 Amp
- High Viscosity 3W/MK Thermally Conductive Putty For BGA Package
- 3240 Epoxy Board, High-quality Insulation Material, Flexible Customization, Widely Applicable 3240 Epoxy Sheet
- Chinese Factory Electrical Insulation Brown 3025 Phenolic Bakelite Resin Cotton Cloth Fabric Laminate Board Sheet Phenolic Board
- 4x8 fiberglass sheets g10 epoxy glass fiber board g10 material
- Factory Price Bakelite Decorative HPL Press plates bakelite sheet
Product Details
Place of Origin: | China | Brand Name: | XINGYE | Model Number: | XYAY-70 |
Type: | Insulator | Material: | Fiberglass | Application: | High Voltage |
Tensile Strength: | 70kn |
Product Description
Specifications
Glass InsulatorCreepage Distance:320mm
Power-frequency Dry/Wet: 70KV/40KV
Minimum mechanical failing load:70KN
Domestic designation | XYAY-70 | XYAY-100 | XYAY1-120 | XYAY-120 |
D Duaneter D (mm) | 380 | 380 | 380 | 380 |
H Spacing H (mm) | 146 | 127 | 127 | 146 |
Creepage L ( mm ) | 365 | 365 | 365 | 365 |
Ball and socket soupling ( mm ) | 16 | 16 | 16 | 16 |
Minimum mechanical failing load( kN ) | 70 | 70 | 70 | 70 |
Tension Strength ( kN ) | 35 | 35 | 35 | 35 |
Power-frequency Wet ( kV ) | 45 | 45 | 45 | 45 |
Lighting impulse withstand volatge(KV) | 90 | 90 | 90 | 90 |
Impul sepuncture voltage (KV) | 2.8 | 2.8 | 2.8 | 2.8 |
Power frequency puncture voltage | 130 | 130 | 130 | 130 |
Radioinfluence voltage ( µV ) | 50 | 50 | 50 | 50 |
Electric iron visual test | 18/22 | 18/22 | 18/22 | 18/22 |
Power frequency electric arc volatge | 0.12s/20kA | 0.12s/20kA | 0.12s/20kA | 0.12s/20kA |
Net weight | 5.3 | 5.2 | 5.3 | 5 |
- Factory direct price, discount are offered based on order quantity.
- Payment:T/T,30% deposits before production,70%balance to be paid before delivery(Western Union is welcome)
You inquiry will be replied within 24 hours.
Choice us and be part of a great future valued partners!
