copper tube /pipe
- 800 Ton / Tons per Month
- shanghai
- T/T L/C D/P D/A
- Pancake Copper Coil
- 100*100mm Copper Mould Tube for CCM
- China Wholesale C93200 C83600 Wear-resistant Copper Pipe Tube Cheap Hollow Bronze Bars for Bearing Bushings
- Large Diameter Tin Bronze Copper Pipe Factory C95400 C90710 C86300 Posphor Bronze Aluminium Bronze Brass Tube
- Inner Grooved Tube&pipe (IGT)
- Insulated Copper Tube&pipe
Product Details
Type: | Straight Copper Pipe | Application: | Oil Cooler Pipe | Specification: | CUNI 90/10 C7060T CUNI 70/30 C7150T |
Outer Diameter: | 6MM-419.1MM | Grade: | CLASS 50 -CLASS 700 ( 5K 10K) | Thickness: | 0.5MM-14MM |
Length: | 23METERS | Cu (Min): | 90% OR 70% | Alloy Or Not: | Is Alloy |
Wall Thickness: | 0.5MM-14MM | Outside Diameter: | 6-419.1MM | Model Number: | C7060T C7150T |
Place of Origin: | Jiangsu, China |
Product Description
Specifications
Standard: ASTM BS AS DIN JIS KSMaterial: Copper Alloy
Dimensions: 3mm - 419.1mm
Capacity: 700 TONS
Cert: BV, TUV,ISO9001

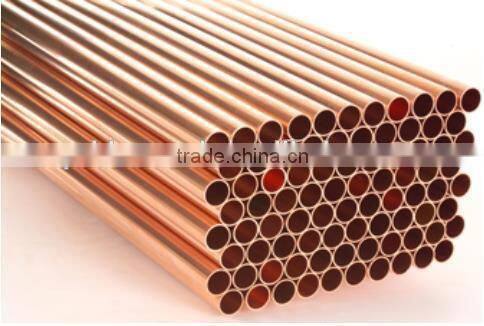

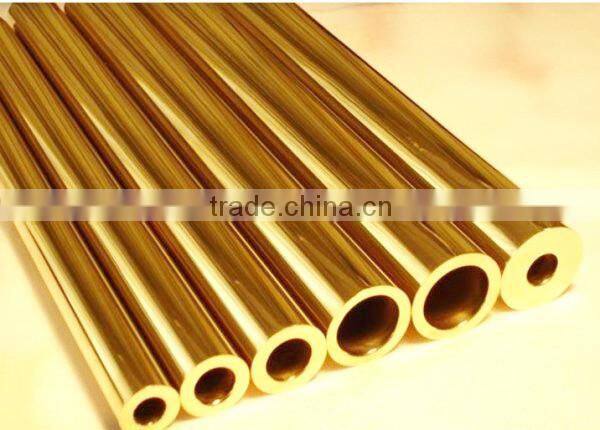

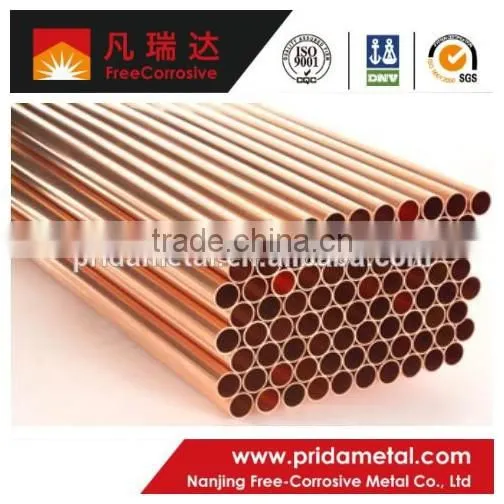

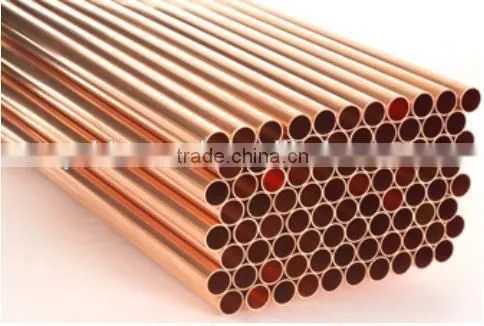

Copper tube /pipe
Copper and copper alloy tubes for industry are superior at thermal conductivity, corrosion resistance, physical properties and mechanical properties. Using in the field of Shipbuilding, Heat exchanger, Heating coil, Desalination plants, Petrochemistry equipment and offshore project.
Products including
Copper pipe ,copper tube ,brass pipe ,brass tube ,bronze pipe,bronze tube
Type
straight copper pipe,pancake coil copper pipe,capillary copper pipe
Standard
GB/T1527-2006,JIS H3300-2006,ASTM B75M,ASTMB42,ASTMB111,ASTMB395,
ASTM B359,ASTM B188,ASTM B698,ASTM B640,etc
Material
T1,T2,C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920,
TP1,TP2,C10930,C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300,
TU1,TU2,C12500,C14200,C14420,C14500,C14510,C14520,C14530,C17200,C19200,
C21000,C23000,C26000,C27000,C27400,C28000,C33000,C33200,C37000,C44300,
C44400,C44500,C60800,C63020,C65500,C68700,C70400,C70600,C70620,C71000,
C71500,C71520,C71640,C72200,etc
Specification
Shape | Round,Square,Rectangular,Oval,half-round |
Round | OD:2-914mm (1/16"-36") WT:0.2-120mm(SCH5S-SCH160S) |
Square | Size:2*2-1016*1016mm(1/16"-40") WT:0.2-120mm |
Rectangular | Size:2*4-1016*1219mm(1/16"-48") WT:0.2-120mm |
Length | 1m,2m,3m,6m,or as required |
Hardness | 1/16 hard,1/8 hard,3/8 hard,1/4 hard,1/2hard,full hard,soft,etc |
Surface | mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required |
Application
1. Pancake Coil for ACR, General Engineering Applications
2. LWC Coil for ACR, General Engineering Applications
3. Straight Copper Tubes for ACR and Refrigeration
4. Inner-grooved copper tube for ACR and Refrigeration
5. Copper Pipe for Transportation System of water, gas and oil
6.PE-coated copper tube for water/gas/oil transportation system
7.Semi-finished Copper tube for industrial applications
