Home > Products > Standard Components > Full sizes of bolts and screws
Full sizes of bolts and screws
- 100 Ton / Tons per Month
- shanghai
- T/T L/C D/P D/A
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Pridametal | Model Number: | Follow ASTM standard |
Product Description
Specifications
Full sizes of bolts and screws1.Name:furniture screws
2.Material:stainless steel
3.Diameters: as required
4.Customized
1.Name:furniture screws
2.Material:stainless steel
3.Diameters: as required
4.Customized designs are welcome.
furniture screws
1.Description:DIN Standard Screw
2.Standard:DIN
3.Material:stainless steel
4.Grade:no
5.Diameters:2.9-6.3, as required
6.Length:6.5-75mm, as required
7.Slot:cross recessed
8.Head: trusss head
9.Thread:no
10.Point: sharp point
11.Packing:box,carton,pallet or according to your requirements

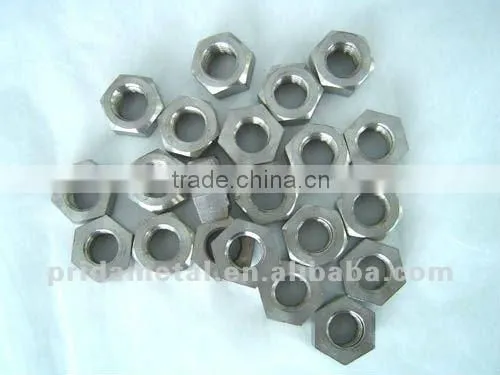

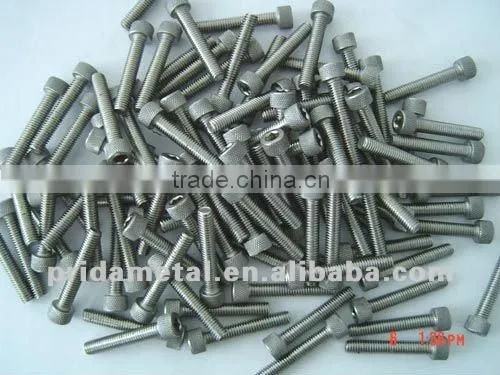

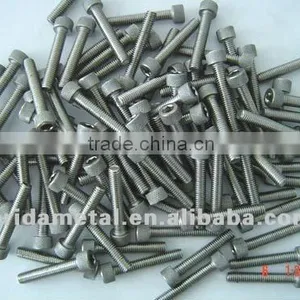

Specifications of titanium Screws,nuts and washers
Size: Bolt sizes:M3~M20xLength Nut sizes:M3~M30 Washer sizes:M4~M16,
Materials:Gr1,Gr2,Gr3,Gr4,Gr5,Gr6,Gr7,Gr9,Gr12.
Standard:DIN912,DIN6912,DIN7991,DIN6921,DIN931,DIN934,DIN6923,DIN985
Chemical elements contents:
Grade | ELEMENT COMPOSITION,% | ||||||||
Ti | Al | V | Fe | C | N | H | O | Other,Max | |
Grade 1 | Blance | _ | _ | 0.20 | 0.8 | 0.03 | 0.015 | 0.18 | 0.40 |
Grade 2 | Blance | _ | _ | 0.30 | 0.8 | 0.03 | 0.015 | 0.25 | 0.40 |
Grade 3 | Blance | _ | _ | 0.30 | 0.8 | 0.05 | 0.015 | 0.35 | 0.40 |
Grade 4 | Blance | _ | _ | 0.50 | 0.8 | 0.05 | 0.015 | 0.40 | 0.40 |
Grade 5 | Blance | 5.5-6.75 | 3.5-4.5 | 0.40 | 0.8 | 0.05 | 0.015 | 0.20 | 0.40 |
Grade 7 | Blance | _Pd 0.12-0.25 | _ | 0.03 | 0.8 | 0.03 | 0.015 | 0.25 | 0.40 |
Grade 9 | Blance | _2.5-3.5 | 2.0-3.0_ | 0.25 | 0.8 | 0.03 | 0.015 | 0.15 | 0.40 |
Grade 12 | Blance | _Mo 0.2-0.4 | Ni 0.6-0.9_ | 0.30 | 0.8 | 0.03 | 0.015 | 0.25 | 0.40 |
Tensile properties:
Grade | Tensile Strength,min | Yield Strength,0.2% Offset | Elongation,min % | ||||
Ksi | Mpa | min | max | ||||
Ksi | Mpa | Ksi | Mpa | ||||
Grade 1 | 35 | 240 | 20 | 138 | 45 | 310 | 24 |
Grade 2 | 50 | 345 | 40 | 275 | 65 | 450 | 20 |
Grade 3 | 65 | 450 | 55 | 380 | 80 | 550 | 18 |
Grade 4 | 80 | 550 | 70 | 483 | 95 | 655 | 15 |
Grade 5 | 130 | 895 | 120 | 828 | _ | _ | 10 |
Applications:
Widely applied to industrial fields, sportng bicycle,especially racing bicycle,racing car,racing motorcycle,boats and some other fields
What we can offer:
M5 x 0.8mm | 10mm |
M5 x 0.8mm | 15mm |
M5 x 0.8mm | 20mm |
M5 x 0.8mm | 25mm |
M5 x 0.8mm | 30mm |
M5 x 0.8mm | 40mm |
M6 x 1.0mm | 10mm |
M6 x 1.0mm | 15mm |
M6 x 1.0mm | 20mm |
M6 x 1.0mm | 25mm |
M6 x 1.0mm | 30mm |
M6 x 1.0mm | 35mm |
M6 x 1.0mm | 40mm |
M6 x 1.0mm | 45mm |
M6 x 1.0mm | 50mm |
M6 x 1.0mm | 60mm |
M6 x 1.0mm | 70mm |
M6 x 1.0mm | 90mm |
M8 x 1.25mm | 20mm |
M8 x 1.25mm | 25mm |
M8 x 1.25mm | 30mm |
M8 x 1.25mm | 35mm |
M8 x 1.25mm | 40mm |
M8 x 1.25mm | 45mm |
M8 x 1.25mm | 50mm |
M8 x 1.25mm | 60mm |
M8 x 1.25mm | 70mm |
M10 x 1.25mm | 30mm |
M10 x 1.25mm | 40mm |
M10 x 1.25mm | 50mm |
M10 x 1.5mm | 30mm |
M10 x 1.5mm | 40mm |
M10 x 1.5mm | 50mm |
M10 x 1.5mm | 60mm |
M10 x 1.5mm | 70mm |
