galvanized steel portable cattle panel yard

Specifications

  galvanized steel portable cattle panel yard

Materials: Carbon steel

Corrosion Form: hot-dipped galvanized or paint

Features: It can quickly and easily be installed, without the need to disturb the surface area by digging holes or laying foundations.

Main markets: Australia, European countries, Canada, America and Asia countries.

Description:

-1.8m high with 6 bars/rails or 1.6m high with 5 bars/rails.

-Complete with Caps & Foot plates.

-Holes for ground pin on one leg of each panel.

-Elongated lug holes in brackets, for ease when connecting.

Specification

Different specifications are available according to customers' special inquiry or detailed drawings.

1)Round style livestock panels(Style 1)

Hot-dipped galvanized cattle panels

Height x Length :1.8x2.1m

Round pipe:40mm OD x 1.6mm thickness

2 joining pins supplied

Package: in high quality pallet

Round style livestock panels(Style 2)

Hot-dipped galvanized cattle panels

Height x Length :1.8x2.1m

Round pipe:32mm OD x 1.6mm thickness

2 joining pins supplied

Package: in high quality pallet

2) Oval tube style cattle panel

Hot-dipped galvanized cattle panels

Height x Length :1.8x2.1m

Vertical pipe:40x40mm RHS x 1.6mm thickness

Horizontal pipe:30x60mm oval rail x 1.6mm thickness

2 joining pins supplied

Package: in high quality pallet

3)Square tube style livestock

Hot-dipped galvanized cattle panels

Height x Length :1.8x2.1m

Square pipe:40x40mm RHS x 1.6mm thickness

2 joining pins supplied

Package: in high quality pallet

4) panel gates

Outside frame 2250mm (high) x 2100mm (long) x 40x40mm x 1.6mm square tube

Gate 1800mm (high) x 2030mm (long) x 30X60mm x 1.6mm oval tube - 6 bar

Hinges 2 Hinges to support gate

Catch Slam catch

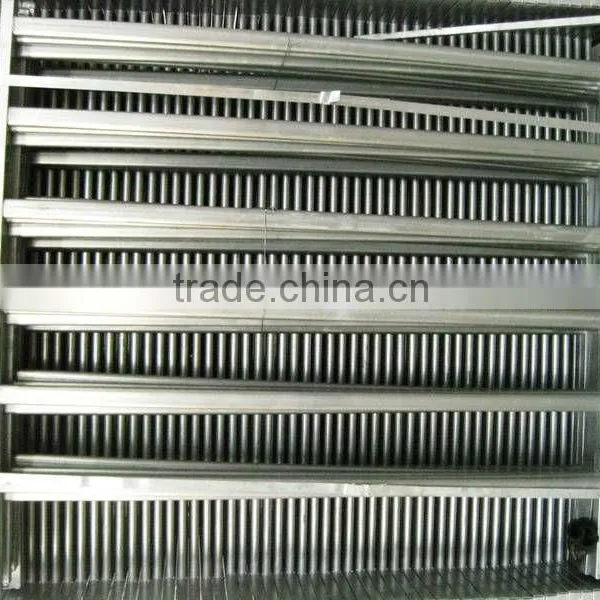

Details showroom
