Specifications
incoloy 800 welding wires1.Incoloy 800H sheet, plate, rod, tube, and other castings & forgings
2.Incoloy 825, 901, inconel 6
| Place of Origin: Jiangsu China (Mainland) | Brand Name:pridametal | Model Number: 800/800H/800HT |
| Application:Chemical&Oil Field,Spring,Filter,e... | Shape: Wire rod | Material: Incoloy 800/800H/800HT |
| Dimensions: 0.3mm~8mm | Chemical Composition: See below description |
| Packaging Detail: | woven bag or arm shaft |
| Delivery Detail: | It depend on Quantity |
Incoloy 800 welding wire Type:wire,bar,pipe,strip,sheet Material: Inconel600, 601, 625, 718, X750, Incoloy901, 925, 926,

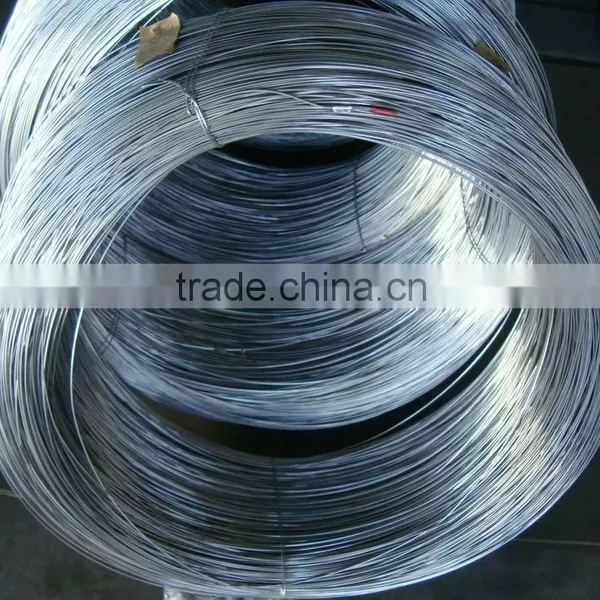

Incoloy 800 welding wire
Incoloy 800/800H800HT Chemical composition:
Alloy |
% |
Ni |
Cr |
Fe |
C |
Mn |
Si |
Cu |
S |
Al |
Ti |
800 |
Min. |
30 |
19 |
0.15 |
0.15 |
||||||
Max. |
35 |
23 |
balance |
0.1 |
1.5 |
1 |
0.75 |
0.015 |
0.6 |
0.6 |
|
800H |
Min. |
30 |
19 |
0.05 |
0.15 |
0.15 |
|||||
Max. |
35 |
23 |
balance |
0.1 |
1.5 |
1 |
0.75 |
0.015 |
0.6 |
0.6 |
|
800HT |
Min. |
30 |
19 |
0.06 |
0.15 |
0.15 |
|||||
Max. |
35 |
23 |
balance |
0.1 |
1.5 |
1 |
0.75 |
0.015 |
0.6 |
0.6 |
|
AI+Ti: 0.85-1.20 | |||||||||||
Incoloy 800/800H 800HT Physical properties:
Density |
8.0 g/cm³ |
Melting point |
1350-1400 °C |
Incoloy 800/800H/800HT Alloy minimum mechanical properties in the room temperature:
Alloy |
Tensile strength |
Yield strength |
Elongation |
Rm N/mm² |
R P 0. 2N/mm² |
A 5 % |
|
800 |
500 |
210 |
35 |
800H |
450 |
180 |
35 |
800/800H/800HT Characteristic as below:
1.Excellent corrosion resistance in the water media of the extremely high temperature of 500°C. 2.Good stress corrosion resistance 3.Good machining
Incoloy 800/800H/800HT Metallurgical structure:
800H is face-centered cubic lattice structure. very low carbon centent and increased Ti:C rate improve the stability of the structure, anti-allergy , and anti-intergranular corrosion. Low temperature annealing of 950°C ensure the fine grain structure.
Incoloy 800/800H/800HT Corrosion resistance:
800H can not be corroded in many kinds of media. Its high nickel content made it have good stress corrosion resistance cracking property in the water corrosion condition.High Chromium content made it can better resist pitting and crevice corrosion cracking. This alloy can resist nitric acid and organic acid corrosion, but it is not so fine in the sulfuric acid and hydrochloric acid. 800H not only good corrosion resistance in both oxidation and non-oxidizing salt, maybe a little pitting in halide, but also very good corrosion resistance property in the mixture of water,smoke, steam,air and carbon dioxide.
Incoloy 800/800H/800HT Application range and field:
1.Nitrate condenser---Corrosion resistance of nitrc acid 2.Steam heating pipes--Very good mechanical property
3.Heat up element tube--Very good mechanical property
4.For the application of up to 500°C enviornment, alloy supply state change to annealing.
