[HK SANTEK] PSW7 Series Sine Wave Inverter DC To AC Converter 1-12KW From Plant
Features:
1.Low battery voltage trip selectable, extracting max power from various batteries with different protections
2.Low quiescent current, selectable sensing cycle to reduce power consumption
3-step intelligent battery charging
4.8 preset battery type selector plus de-sulphation for totally flat batteries
5.PFC(Power Factor Correction) for charger, less power consumption than conventional units
6.Delay before transfer, extra protections for loads under generator mode
7.Input AC voltage range selectable
8.8 ms typical transfer time
9.Ability to select/deselect power saver mode
10.17 alarms/warnings, informative for easier operation and trouble-shooting
Parameter :
| Model No. | 10001 (2) | 20001(2,4) | 30001(2,4) | 40002 (4) | 50002 (4) | 60002 (4) |
| Nominal Power | 1000W | 2000W | 3000W | 4000W | 5000W | 6000W |
| AC Input | ||||||
| Phase & waveform | Single phase & sinewave | |||||
| Voltage | 120VAC/230VAC | |||||
| Acceptable Voltage | 194-243VAC164-243VAC(wide mode) | |||||
| Line Low Transfer | 85V±4%/184(154 wide mode±4%) | |||||
| Line Low Return | 95V±4%/194(164 wide mode±4%) | |||||
| Line high Transfer | 135V±4%/253±4% | |||||
| Line high Return | 127V±4%/243±4% | |||||
| Frequency | 50Hz or 60Hz (auto sensing) | |||||
| Line Low Transfer | 47Hz for 50Hz,57Hz for 60Hz | |||||
| Line high Transfer | 55Hz for 50Hz,65Hz for 60Hz | |||||
| Output | ||||||
| Phase & waveform | Single phase & sinewave(bypass mode sync to input) | |||||
| Voltage | 230VAC(bypass mode sync to input) | |||||
| Voltage Regulation | ±10%rms(bypass mode sync to input) | |||||
| Frequency | 50Hz±0.3Hz(bypass mode sync to input) | |||||
| Crest Power | 3 times of ratings | |||||
| Short Circuit Protection | Yes,shutdown after 10 minutes | |||||
| Power Factor | 0.9-1.0 | |||||
| DC Input | ||||||
| Battery Voltage | 12V/24V | 12V/24V/48V | 24V/48V | |||
| Minimum Start Voltage | 10V for 12V,20V for 24V,40V for 48V | |||||
| Low Battery Alarm | 10.5V for 12V,21V for 24V,42V for 48V | |||||
| Low Battery Transfer | 10V for 12V,20V for 24V,40V for 48V | |||||
| High Voltage Alarm | 16V for 12V,32V for 24V,64V for 48V | |||||
| Max Charging Current | 70A35A | |||||
| Over Charge Voltage | 15.7V for 12V,31.4V for 24V,62.8V for 48V | |||||
| Transfer Efficiency | ||||||
| line Mode | >95% | |||||
| Battery Mode | >88% | |||||
| power saver | Available when the load is less than 25 Watts | |||||
| Indicators | ||||||
| 7-LED Display | From the right to the left,LED1 line mode (green lighting),LED2 inverter mode | |||||
| (green lighting),LED3 charging mode(yellow lighting),LED4 Fully charged | ||||||
| (green lighting),LED5 over heat shutdown(red lighting),LED6 Overloaded | ||||||
| shutdown(red lighting),LED7 Saving Mode(green lighting) | ||||||
| 3-LED Display | Charging Mode(green lighting),inverter mode(green lighting), Alarm(red lighting) | |||||
| Switch selector | Saving Mode is on/off when push the switch forwards/backwards, keeping it horisontal is | |||||
| turning the inverter off. | ||||||
| Audible Alarm | Sounding when the heatsink's tem is over 105°C and shutdown after 30 seconds. | |||||
| Protections | low battery,over charging,over temp,over load | |||||
| Communications | RS-232/USB(custom-made) | |||||
| Enviromental | ||||||
| Operating Environment | 0-40°C,0-90%RH(non-condensing) | |||||
| Audible Noise | <60dB | |||||
| Physical | ||||||
| Net Weight(KG) | 18 | 20 | 24 | 35 | 45 | 45 |
| Dimension,D X W X H(mm) | 218X179X442 | 218X179X598 | ||||
| *Specifications are subject to change without prior notice. | ||||||

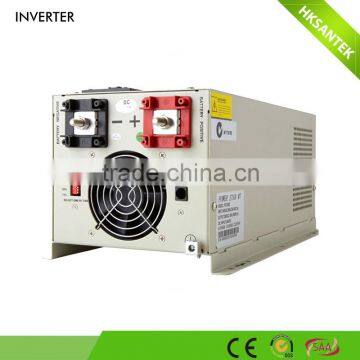

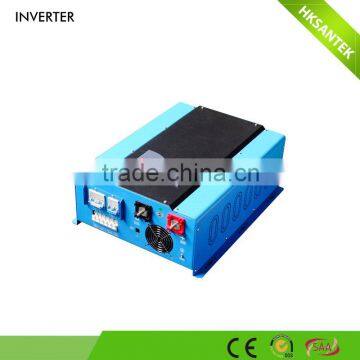

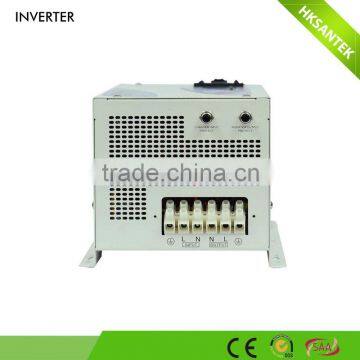

Sine Wave Inverter DC To AC Converter 1-12KW Image:
Pure Sine Wave DC To AC Inverter Control Board :
Sine Wave Inverter DC To AC Converter 1-12KW Charging Board: Max Charging Current Up To 70A
Sine Wave Inverter DC To AC Converter 1-12KW Transformer:Copper Material
How does it work?
Applications:
Computer center,network center,communication system,automation control system ect.
Sine Wave Inverter DC To AC Converter 1-12KW Production ability:10000pcs per month
HKSANTEK Quanlity Policy
Quality is a system, quality is a project,it can contains all the activities of the whole factory,HKSANTEK's belief is "behave
ourseleves firstly, then keep the materials &produce in good level, finally assure the products's quality.everyactivity
effect the quality,so every one is the QC staff in factory.
All the running of HKSANTEK Company is compliant with the ISO9001-2008 and ISO 14001-2004
FAQ And Solutions for Sine Wave Inverter DC To AC Converter 1-12KW :
1.Does it have CPU control?
Answer:Yes,it has.
2.Does it has communication interface ?which kind of communication interface? What of software is used to control?
Answer:Yes,it has,RS232,WINPOWER sofrware is used to control input and output voltage,frequency,battery voltage and load percentage .
3.Is the output 3 wire+ earth wire ?
Answer:No,the output is 2 wire(null line and live line)+earth line.
4.Is it has resistance of motor?
Answer:Yes,it is,it can load 3 times rated current,and could last 10s.
5.How much is the output current?
Answer:Rated power divide by output voltage.
6.Is the charging current adjustable?
Answer:No,it isn't adjustable.
7. what protection function does the inverter have?
Answer:Low battery,over charging,over temp,over load protection and so on.
8.How many stages for charging?
Answer:Three stages:constant current,constant voltage and floating charge.
9.How long is the transfer time?will it give a alarm when it transfers?
Answer:Less than 10ms,it will not give a alarm when it transfers.
| Model | N.G | W.G | Packing size | ||||
| 1KW | 18 | 20 | 580*315*305 mm | ||||
| 1.5KW | 20 | 22 | |||||
| 2KW | 20 | 22 | |||||
| 3KW | 24 | 26 | |||||
| 4KW | 35 | 38 | 755*319*305 mm | ||||
| 5KW | 45 | 48 | |||||
| 6KW | 45 | 48 |
Sine Wave Inverter DC To AC Converter 1-12KW Delivery time:
| Sample Lead time: | 5 days | |||||
| Production lead time: | 20days (subject to the actual quantity) | |||||
Sine Wave Inverter DC To AC Converter 1-12KW Shipping:
Our Services
Now we are currently searching for new biz partners around the world,we hope to bulid the strong relationships with foreign importers and dealers.We will do our best to strengthen the customer's brands and market growth by our futher cooperation.
We can also provide samples,or have it mage to order, excellent after-sales service and permanent technical support .
Why choose us?
1. 11 years gold credit supplier on Alibaba.
2. 11 years UPS and Power Inverter export experiences.
3. 11 years UPS and Power Inverter manufacturer experiences.
4. 11 years of high-level OEM experience.
5. 5 production lines
6. 400 employees.
7. 10,000 square meters factory size (ters)
8. 80,000pcs monthly capacity
9. Export percentage: 90%
10. Hi-tech advanced R&D team with 32 senior engineers .
11. Certifications--applied with CE,SONCOP, ISO 9001, ISO14001 etc
12.Quality guarantee—warranty.
