1KW to 6KW pure sine wave power Inverter with charger
Specification
1 DC to AC inverter
2 Pure sine wave inverter
3 75A charge current
4 90% efficiency
5 CE RHOS ISO9001
Why Choose our inverter
1 Yingli inverter supplier, good quality
2 Pure sine wave out, continuous output power 8000w,peak power 24000w
4 Unique advantage: battery power priority and grid power priority can set by user
5 Wide AC input voltage : 145-276Vac or 78-144Vac
6 Frequency : 50HZ/60HZ auto
7 Can be single phase or split phase 120V/240VAC
8 CE ISO9001 RHOS Certification
Inverter Paremeter:
| Model No. | 10001 (2) | 20001(2,4) | 30001(2,4) | 40002 (4) | 50002 (4) | 60002 (4) |
| Nominal Power | 1000W | 2000W | 3000W | 4000W | 5000W | 6000W |
| AC Input | ||||||
| Phase & waveform | Single phase & sinewave | |||||
| Voltage | 120VAC/230VAC | |||||
| Acceptable Voltage | 194-243VAC164-243VAC(wide mode) | |||||
| Line Low Transfer | 85V±4%/184(154 wide mode±4%) | |||||
| Line Low Return | 95V±4%/194(164 wide mode±4%) | |||||
| Line high Transfer | 135V±4%/253±4% | |||||
| Line high Return | 127V±4%/243±4% | |||||
| Frequency | 50Hz or 60Hz (auto sensing) | |||||
| Line Low Transfer | 47Hz for 50Hz,57Hz for 60Hz | |||||
| Line high Transfer | 55Hz for 50Hz,65Hz for 60Hz | |||||
| Output | ||||||
| Phase & waveform | Single phase & sinewave(bypass mode sync to input) | |||||
| Voltage | 230VAC(bypass mode sync to input) | |||||
| Voltage Regulation | ±10%rms(bypass mode sync to input) | |||||
| Frequency | 50Hz±0.3Hz(bypass mode sync to input) | |||||
| Crest Power | 3 times of ratings | |||||
| Short Circuit Protection | Yes,shutdown after 10 minutes | |||||
| Power Factor | 0.9-1.0 | |||||
| DC Input | ||||||
| Battery Voltage | 12V/24V | 12V/24V/48V | 24V/48V | |||
| Minimum Start Voltage | 10V for 12V,20V for 24V,40V for 48V | |||||
| Low Battery Alarm | 10.5V for 12V,21V for 24V,42V for 48V | |||||
| Low Battery Transfer | 10V for 12V,20V for 24V,40V for 48V | |||||
| High Voltage Alarm | 16V for 12V,32V for 24V,64V for 48V | |||||
| Max Charging Current | 70A35A | |||||
| Over Charge Voltage | 15.7V for 12V,31.4V for 24V,62.8V for 48V | |||||
| Transfer Efficiency | ||||||
| line Mode | >95% | |||||
| Battery Mode | >88% | |||||
| power saver | Available when the load is less than 25 Watts | |||||

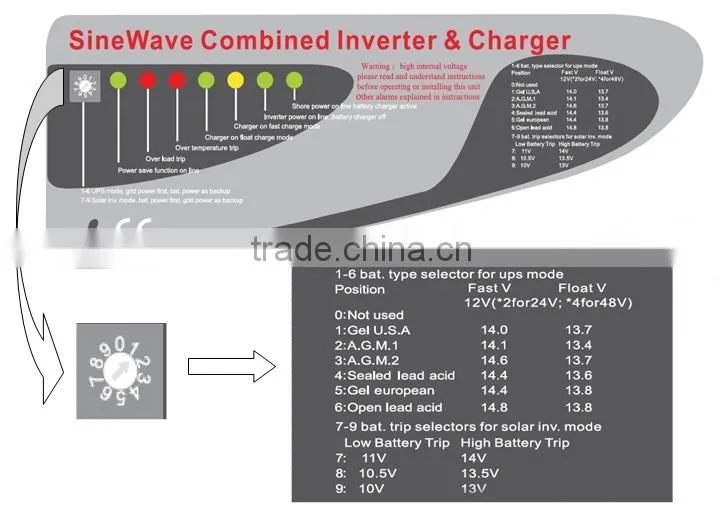

| Indicators | ||||||
| 7-LED Display | From the right to the left,LED1 line mode (green lighting),LED2 inverter mode | |||||
| (green lighting),LED3 charging mode(yellow lighting),LED4 Fully charged | ||||||
| (green lighting),LED5 over heat shutdown(red lighting),LED6 Overloaded | ||||||
| shutdown(red lighting),LED7 Saving Mode(green lighting) | ||||||
| 3-LED Display | Charging Mode(green lighting),inverter mode(green lighting), Alarm(red lighting) | |||||
| Switch selector | Saving Mode is on/off when push the switch forwards/backwards, keeping it horisontal is | |||||
| turning the inverter off. | ||||||
| Audible Alarm | Sounding when the heatsink's tem is over 105°C and shutdown after 30 seconds. | |||||
| Protections | low battery,over charging,over temp,over load | |||||
| Communications | RS-232/USB(custom-made) | |||||
| Enviromental | ||||||
| Operating Environment | 0-40°C,0-90%RH(non-condensing) | |||||
| Audible Noise | <60dB | |||||
| Physical | ||||||
| Net Weight(KG) | 18 | 20 | 22 | 35 | 38 | 40 |
| Dimension,D X W X H(mm) | 218X179X442 | 218X179X598 | ||||
| *Specifications are subject to change without prior notice. | ||||||

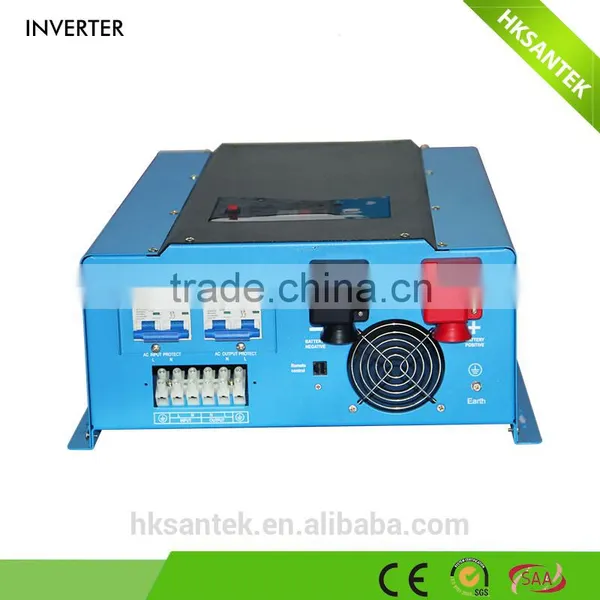

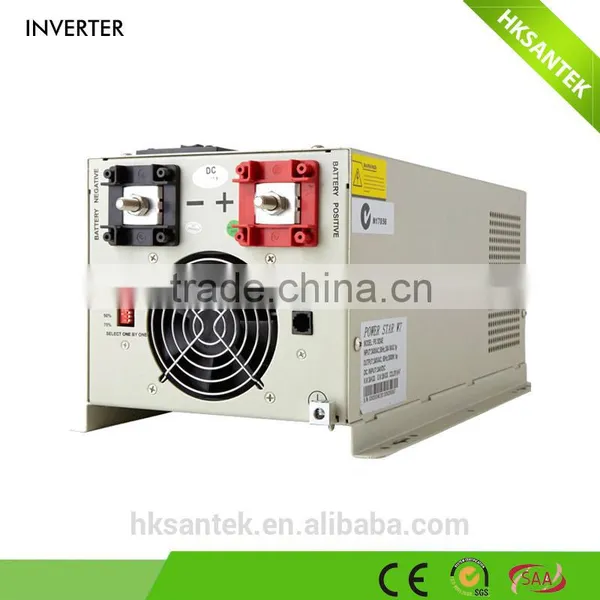

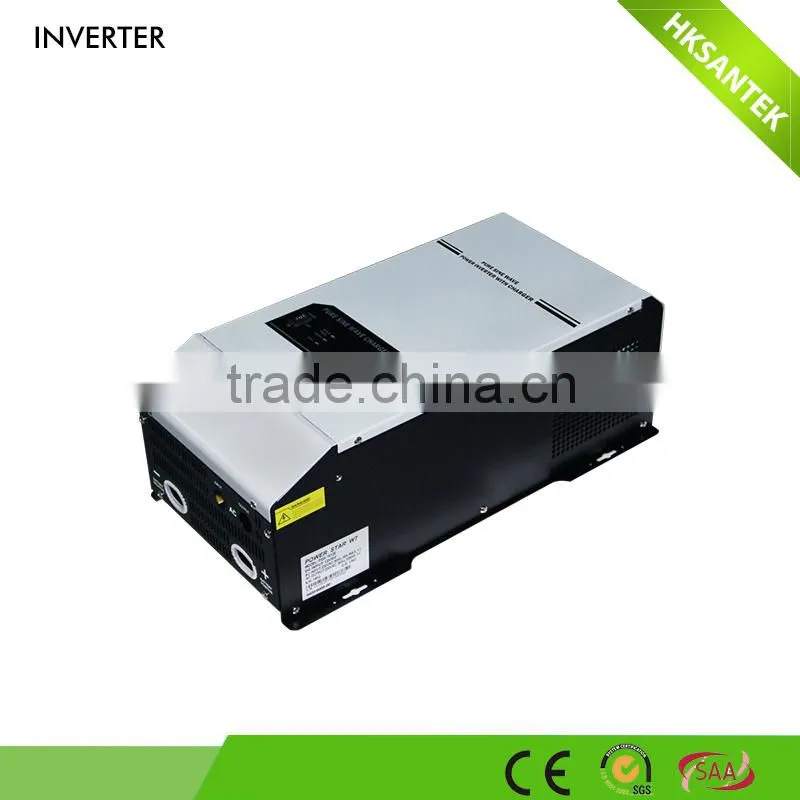

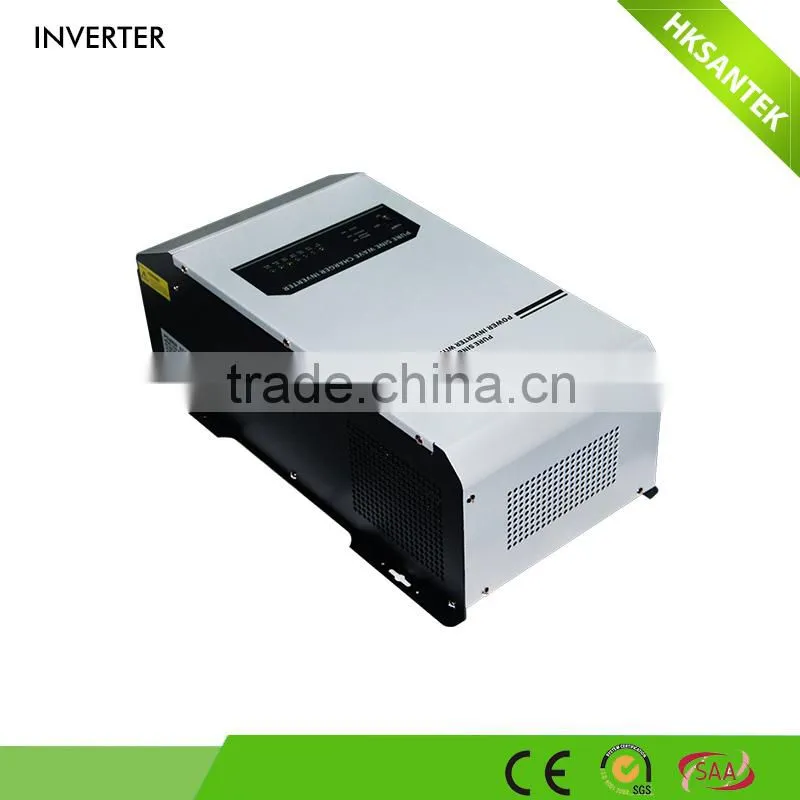

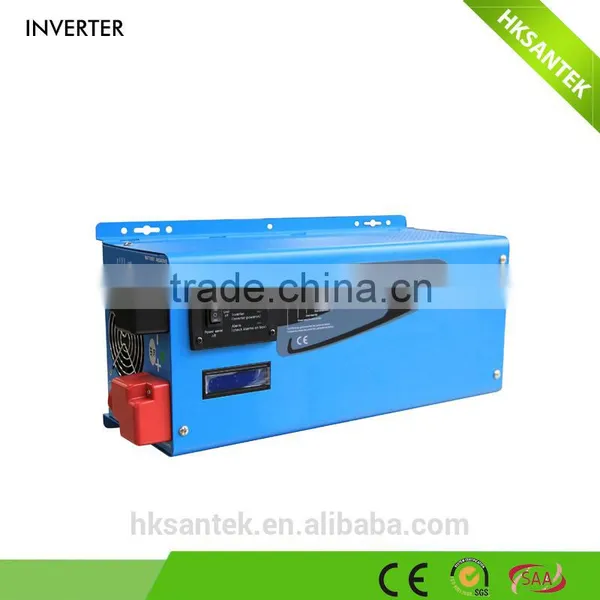

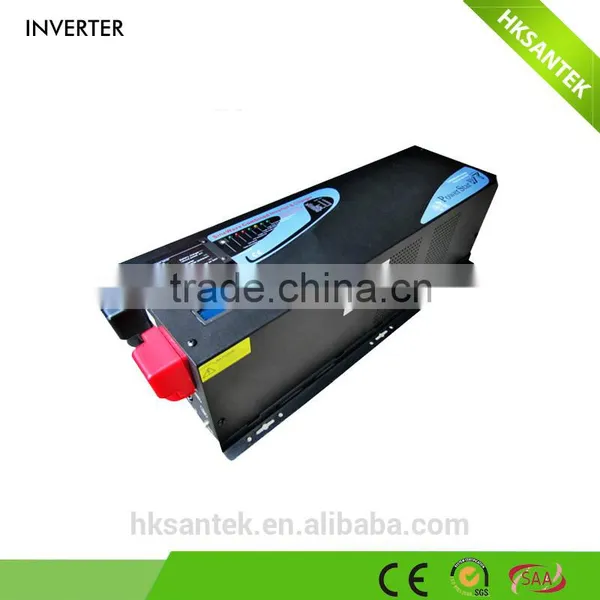

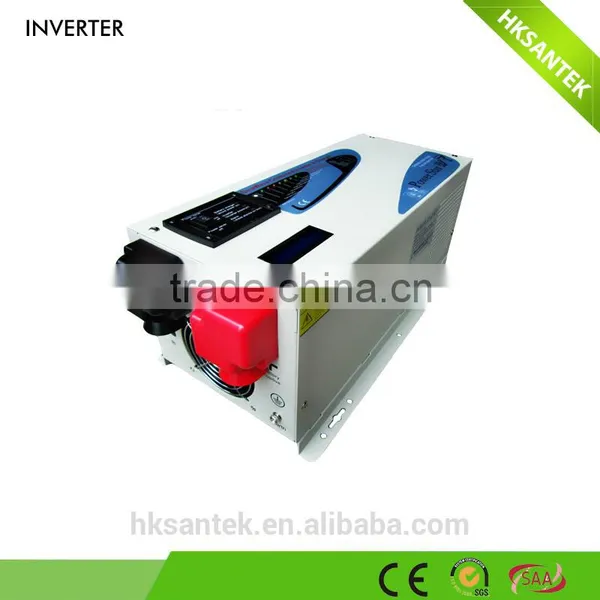

Picture view

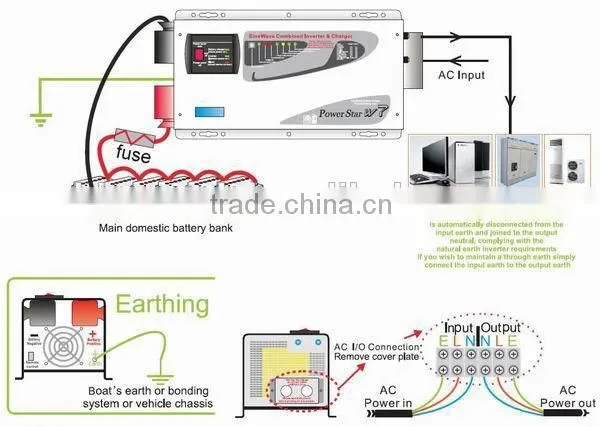

Application
Certification of 1000w to 6000w dc to ac inverter
CE ,ISO9001,RoHS
packing & delivery&shipping
| Model | N.G | W.G | Packing size | ||||
| 1KW | 18 | 20 | 580*315*305 mm | ||||
| 1.5KW | 20 | 22 | |||||
| 2KW | 20 | 22 | |||||
| 3KW | 24 | 26 | |||||
| 4KW | 35 | 38 | 755*319*305 mm | ||||
| 5KW | 45 | 48 | |||||
| 6KW | 45 | 48 |
Delivery time:
| Sample Lead time: | 5 days | |||||
| Production lead time: | 20days (subject to the actual quantity) | |||||
Shipping:

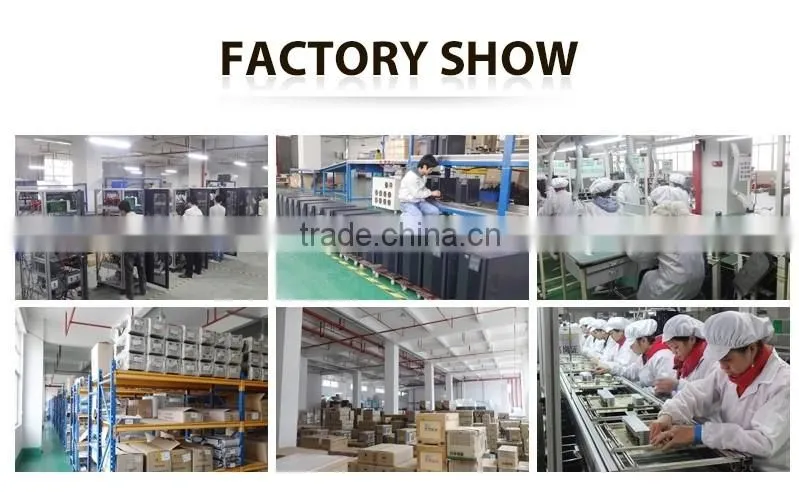

Why us
Founded in 2004, Shenzhen Sunray Power Co., Ltd is a professional manufacturer which produces and develops uninterruptible power supply (UPS) systems, inverter and solar power systems.
With our strong R&D team, complete quality system and advanced management, sunray has been one of the top suppliers in power field.Our factory was located in GuangMing new district and it covers an area of 10000 square meters .
With advanced Ameirican technology and custmos from all over the word support ,the turnover of us surpassed 100 million RMB in 2004 .We always provide customs with good products.
Sending us an inquiry now !!!
