1KW to 6KW solar power system solar inverter

FOB Price

USD $205 - $566 / Set

1 Set(Min.Order)

Supply Ability 5000 Set / Sets per Month
Port SHENZHEN
Payment Terms:T/T D/P D/A Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	HKSANTEK, Santak Inverter / Ups	Model Number:	SCI
Output Power:	Other, >1000KW	Output Type:	Single	Size:	486400181
Weight:	18 kg	Input Voltage:	100/120/220/230/240vac	Output Voltage:	100/120/220/230/240vac
Type:	DC/AC Inverters	Output Frequency:	50 or 60 hz	Output Current:	30A

Product Description

1KW to 6KW solar power system solar inverter

Product Description

Product Features:

1,pure sine wave inverter with AC charger

2,build in MPPT solar charge controller 40A or 50A

3,working modes switche automatically (AC grid bypass mode ,inverter mode ,AC charging mode ,solar charging mode )

4.Auto transfer between grid power and solar power

Technical Parameters

Product Specification:

Model	SCI500	SCI1000	SCI1500	SCI2000	SCI3000	SCI4000	SCI5000	SCI6000
AC INPUT
Waveform & Phase	Pure sine wave(utility or generator)&Single Phase
Norminal Voltage	110/120/220/230/240VAC						220/230/240VAC
Voltage Range	95-127vac/194-253vac						194-253vac
Frequency	50HZ or 60HZ(Auto Adjust)
Frequency Range	48-54HZ/58-64HZ
AC OUTPUT
Waveform & Phase	Pure sine wave(utility or generator)&Single Phase
Norminal Voltage	110/120/220/230/240VAC						220/230/240VAC
Frequency	50HZ or 60HZ(Auto detect)
Peak Power	3 times of ratings
BATTERY
Battery DC	12V/24V	12V/24V/48V				24V/48V
DC Input	10-16V/20-32V/40-64V
Over Charging	15.7V/31.4V/62.8V
Max Charing Current	20A-75A
Battery Type	GEL,AGM,Sealed lead acid
MPPT CONTROLLER
PV Input	15-30VDC/30-55VDC
Max Charing Current	20A/30A/40A/50A
Max.Output Current	15A
TRANSFER EFFICIENCY
MPPT Efficiency	>95%
Line Mode	>95%
Battery Mode	>85%
Power Saver	Available When The Load Is Less Than 50Watts
Transfer Time	10ms
INDICATORS
7-LED Display	From Right To Left:1.Line Mode(Green),2.Inverter Mode(Green),3.Charging Mode(Yellow),4.Fully Charged(Green),5.Over Temp(Red),6.Overload(Red),7.Saving Mode(Green)
2-LED Display(MPPT)	Power,CHG.Mode
3-LED Display	Charging Mode(Greening Lighting),Inverter Mode(Greening Lighting),Alarm(Red Lighting)
LCD Display	Input Voltage,Output Voltage,Frequency,Battery Voltage,Load
Switch Selector	Saving Mode Is On/Off When Push The Switch Forwards/Backwards,Keeping It Horisontal Is Turning The Inverter Off
Working Mode	AC Power Priority(1-6)/Battery Power Priority(7-9)
Protections	Over Temp,Over Load,Over Voltage,Shortdown
Communications	RJ11/RS232(Optional)
ENVIROMENTAL
Operating Enviroment	0-40°C,0-95%Rh(non-condesing)
Audible Noise	<60dB
Dimension D×W×H(mm)	486400181					486432181
Net Weight(KG)	18	20.8	22.8	24.5	29.1	40	48	50

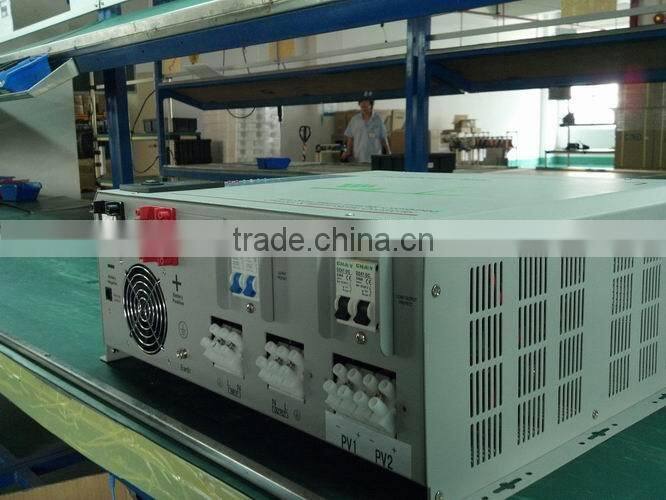

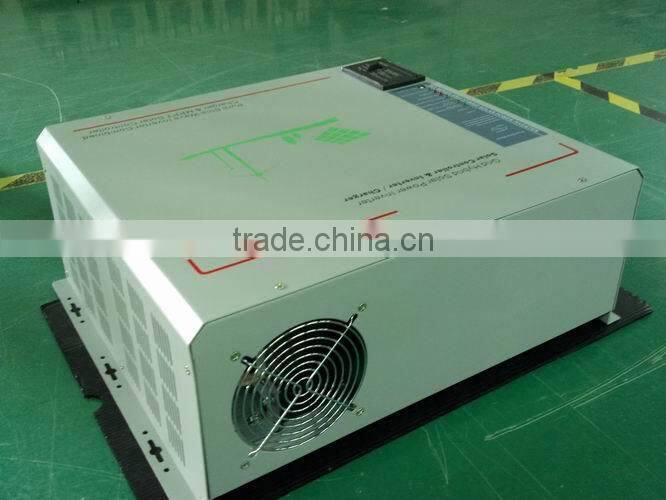

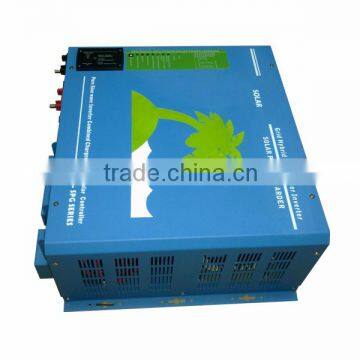

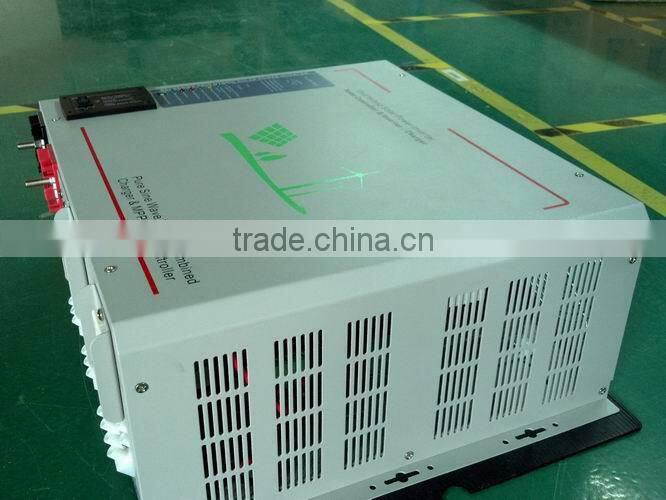

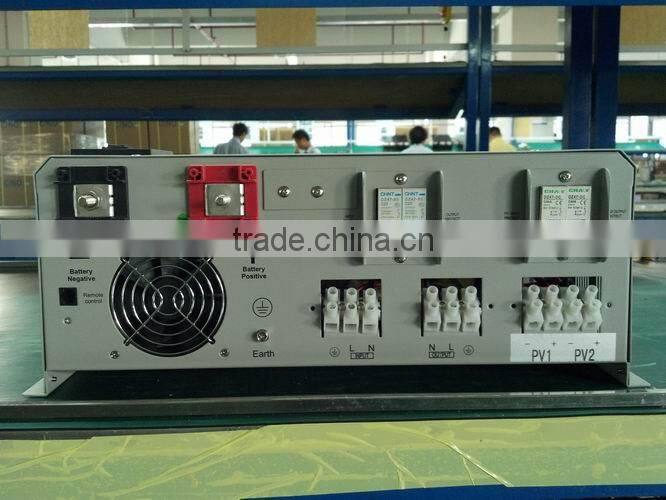

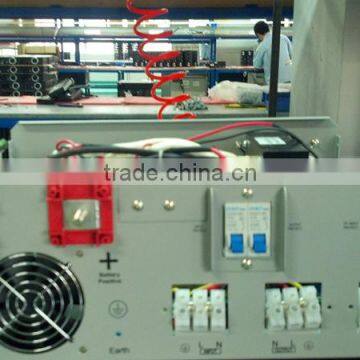

Product Pictures

Product Show:

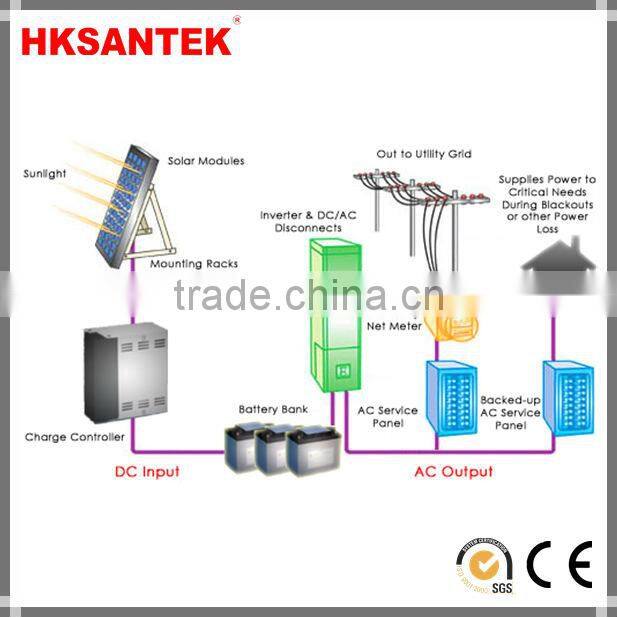

How It Work

Packaging & Shipping

Delivery Time:

Sample Lead time:		5 days
Production lead time:		20days (subject to the actual quantity)

About us

Founded in 2004, Shenzhen Sunray Power Co., Ltd is a professional manufacturer which produces and develops uninterruptible power supply (UPS) systems, inverter and solar power systems.

With our strong R&D team, complete quality system and advanced management, sunray has been one of the top suppliers in power field.Our factory was located in GuangMing new district and it covers an area of 10000 square meters .

With advanced Ameirican technology and custmos from all over the word support ,the turnover of us surpassed 100 million RMB in 2004 .We always provide customs with good products.

Welcom to contact us!
