Pure Sine Wave PV Hybrid Inverter 5KW From Plant

Shenzhen Santek Power Co., Limited
Pure Sine Wave PV Hybrid Inverter 5KW From Plant thumbnail-1
Pure Sine Wave PV Hybrid Inverter 5KW From Plant thumbnail-2
Pure Sine Wave PV Hybrid Inverter 5KW From Plant thumbnail-3
Pure Sine Wave PV Hybrid Inverter 5KW From Plant thumbnail-4
Pure Sine Wave PV Hybrid Inverter 5KW From Plant thumbnail-5
Pure Sine Wave PV Hybrid Inverter 5KW From Plant thumbnail-6
Pure Sine Wave PV Hybrid Inverter 5KW From Plant photo-1
Pure Sine Wave PV Hybrid Inverter 5KW From Plant photo-2
Pure Sine Wave PV Hybrid Inverter 5KW From Plant photo-3
Pure Sine Wave PV Hybrid Inverter 5KW From Plant photo-4
Pure Sine Wave PV Hybrid Inverter 5KW From Plant photo-5
Pure Sine Wave PV Hybrid Inverter 5KW From Plant photo-6
US$ 350 - 560 MOQ: 6 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SHENZHEN SANTEK
Model Number:
SCI
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SHENZHEN SANTEK
Model Number SCI
Output Power 1 - 200KW
Output Type Single
Size 460*440*200
Weight 49KG
Input Voltage 110/120/220/230/240VAC
Output Voltage 110/120/220/230/240VAC
Type DC/AC Inverters
Output Frequency 50Hz +_0.3Hz
Output Current 20A

Pure Sine Wave PV Hybrid Inverter 5KW From Plant



 Key Features:





1. Solar energy first, grid power as


2.Combined AC charger and MPPT solar charge controller


3.MPPT solar controller to increase solar energy efficiency


4.Automatic transfer between grid power and solar power within 10ms


5. Plug and play design with the all breakers of solar power system


6.Wall mounted design with wired remote control


7.Power saver( stand by) function with lower idle consume


8. Battery selector for different battery to improve battery life


9.Rs232 communication is optional for LED mode




10.SNMP Net Agent card is optional for LED mode







Pure Sine Wave PV Hybrid Inverter 5KW Specification:



ModelSCI500SCI1000SCI1500SCI2000SCI3000SCI4000SCI5000SCI6000
AC INPUT
Waveform & PhasePure sine wave(utility or generator)&Single Phase
Norminal Voltage110/120/220/230/240VAC220/230/240VAC
Voltage Range95-127vac/194-253vac194-253vac
Frequency50HZ or 60HZ(Auto Adjust)
Frequency Range48-54HZ/58-64HZ
AC OUTPUT
Waveform & PhasePure sine wave(utility or generator)&Single Phase
Norminal Voltage110/120/220/230/240VAC220/230/240VAC
Frequency50HZ or 60HZ(Auto detect)
Peak Power3 times of ratings
BATTERY
Battery DC12V/24V12V/24V/48V24V/48V
DC Input10-16V/20-32V/40-64V
Over Charging15.7V/31.4V/62.8V
Max Charing Current20A-75A
Battery TypeGEL,AGM,Sealed lead acid
MPPT CONTROLLER
PV Input15-30VDC/30-55VDC
Max Charing Current20A/30A/40A/50A
Max.Output Current15A
TRANSFER EFFICIENCY
MPPT Efficiency>95%
Line Mode>95%
Battery Mode>85%
Power SaverAvailable When The Load Is Less Than 50Watts
Transfer Time10ms
INDICATORS
7-LED DisplayFrom Right To Left:1.Line Mode(Green),2.Inverter Mode(Green),3.Charging Mode(Yellow),4.Fully Charged(Green),5.Over Temp(Red),6.Overload(Red),7.Saving Mode(Green)
2-LED Display(MPPT)Power,CHG.Mode
3-LED DisplayCharging Mode(Greening Lighting),Inverter Mode(Greening Lighting),Alarm(Red Lighting)
LCD DisplayInput Voltage,Output Voltage,Frequency,Battery Voltage,Load
Switch SelectorSaving Mode Is On/Off When Push The Switch Forwards/Backwards,Keeping It Horisontal Is Turning The Inverter Off
Working ModeAC Power Priority(1-6)/Battery Power Priority(7-9)
ProtectionsOver Temp,Over Load,Over Voltage,Shortdown
CommunicationsRJ11/RS232(Optional)
ENVIROMENTAL
Operating Enviroment0-40°C,0-95%Rh(non-condesing)
Audible Noise<60dB
Dimension D×W×H(mm)486*400*181486*432*181
Net Weight(KG)1820.822.824.529.1404850

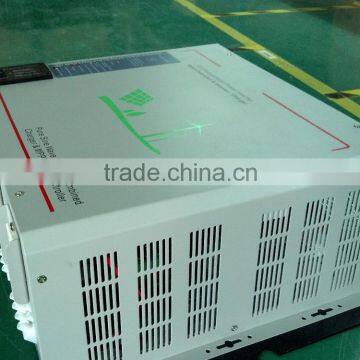

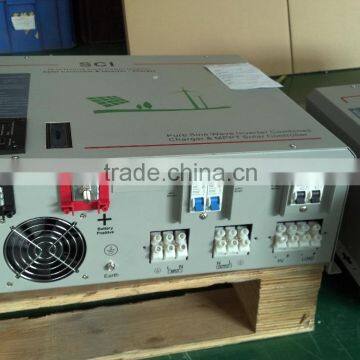

Pure Sine Wave PV Hybrid Inverter 5KW Image:



 Pure Sine Wave PV Hybrid Inverter 5KW From PlantPure Sine Wave PV Hybrid Inverter 5KW From Plant

 Pure Sine Wave PV Hybrid Inverter 5KW From Plant



Pure Sine Wave PV Hybrid Inverter 5KW From Plant



Pure Sine Wave PV Hybrid Inverter 5KW Shipping :



Pure Sine Wave PV Hybrid Inverter 5KW From Plant



Pure Sine Wave Of Grid Solar Inverter Delivery Time:



Sample Lead time:5 days
Production lead time:20days  (subject to the actual quantity)



Pure Sine Wave PV Hybrid Inverter 5KW Certification:



Pure Sine Wave PV Hybrid Inverter 5KW From Plant





Quality Control Equipment:



Pure Sine Wave PV Hybrid Inverter 5KW From Plant



Applications:



 Computer center,network center,communication system,automation control system or other  critical system ect.



Pure Sine Wave PV Hybrid Inverter 5KW From Plant

Pure Sine Wave PV Hybrid Inverter 5KW From Plant
