For Pakistan 10A/20A Charging Current 700w home ups
Features:
1. High conversion efficiency, smart soft start function.
2. Multiple protection circuit for low voltage
3. Smart, light, easy for carry
4. Portable size power inverter
5. Electricity - Battery automatic conversion
6. Different choice of input voltage range
7. High efficiecy rate of DC - AC conversion, minimize energy loss

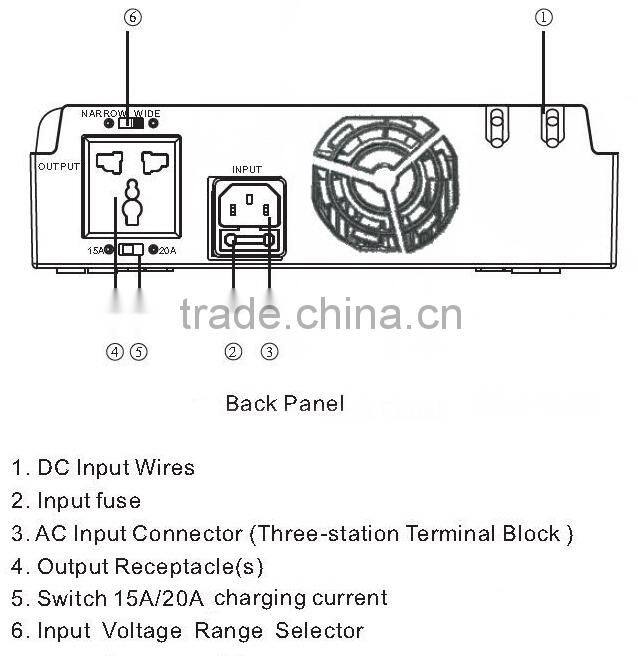

8. 10A/20A charge current manual select
9. Different front panels to choose
10.Intelligent charge control, can ensure the effective charging,but can not avoid excessive charging
11. Ultra-load protection
12. With the multiple protection circuit, no harm to equipments
13. Modified/Square waveform output.
14. 21 years' experience in home power supply industry.
Protection
To ensure the safety of the power inverter, five protections are designed,
including reverse polarity protection, over voltage protection, low voltage protection, short-circuit protection, ground fault protection.
Application
This power inverter is extraordinarily designed for home use, which can convert DC 12V of portable power supply to AC 230V and it works for almost all the household electrical resistive appliances such as MP3/MP4 player, cell phone, laptop, emergency light, electric blanket, electric shaver, electric cooker, digital camera, digital video, CD/DVD player, XBOX/PS4 game player, ordinary electric lamps, bulb, rice cooker, electric iron, desktop computer, fax machines, printers, LCD TV, electric fans, cell phone chargers, electric iron , drinking fountain, hair dryer and so on.(Note: Only pure sine wave inverter can run sensitive electric appliances that are including refrigerator, washing machine, microwave oven, induction cooker, electric drill,compressor, air conditioner,mercury lamp, sodium lamp and so on)
Specification
| Model | PG500 | PG1000A | PG1000B | PG2000 |
| Rated Power | 300W | 600W | 600W/700W | 1200W/1500W |
| Input | ||||
| Nominal Voltage | 110/120VAC or 220/230/240VAC | |||
| Voltage Range | 90-145VAC or 170-280VAC (Narrow Range) | |||
| 50-145VAC/90-280VAC (Wide Range) | ||||
| Output | ||||
| Voltage (Battery mode) | 120VAC or 230VAC | |||
| Frequency | 50Hz 0.1Hz | |||
| Waveform | Modified sine wave | |||
| Power factor (AC to AC) | >95% | |||
| Power factor (DC to AC) | >80% | |||
| Battery | ||||
| Type | Sealed Lead-Acid, Maintenance-free | |||
| Normal Voltage | 12VDC | 24VDC | 12VDC | 24VDC |
| Charger Current | 10 and 20amp selectable | |||
| Switch time | 8ms(NARROW) | |||
| LED indicators | ||||
| Utility mode | Green light | |||
| Battery mode | Yellow light | |||
| Over-load/fault | Red light | |||
| Audible alarm | ||||
| Low Voltage (battery mode) | Beeping sound every twoseconds | |||
| Over-load | Beeping sound twice every sound | |||
| Fault | Continuous beeping sound | |||
| Conduction/RFI | ||||
| CB7260.2/EN50091-2CLASS A | ||||
| Environmental | ||||
| Operating Temperature | 0∼40 | |||
| Relative Humidity | 0%∼90% non-condensing | |||
| Measurement | ||||
| Dimensions(mm) | 260*224*80 | |||
| Weight(kg) | 1.7 | 1.9 | 2 | 2.5 |
Delivery time:
| Sample Lead time: | 5 days | |||||
| Production lead time: | 20days (subject to the actual quantity) | |||||

Company Profiles
Founded in 2004, Shenzhen Sunray Power Co., Ltd is a professional manufacturer which produces and develops uninterruptible power supply (UPS) systems, inverter and solar power systems.
With our strong R&D team, complete quality system and advanced management, sunray has been one of the top suppliers in power field.
Our factory was located in GuangMing new district and it covers an area of 10000 square meters .
With advanced Ameirican technology and custmos from all over the word support ,the turnover of us surpassed 100 million RMB in 2004 .We always provide customs with good products.
Send us an inquiry now !!!
Modified sine wave inverter with PWM controller
