Specifications
1>Rack convertible2>High frequency and double conversion
3>Fully digitized microprocessor control
Major Features
1.Rack convertible
2.High Frequency and double conversion online technology
3.Fully digitized microprocessor control
4.Smart RS232 communication with monitoring software
5.Optional SNMP card slot
6.Wide input voltage range
7.Advanced PFC technology
8.Self-testing when UPS startup
9.Advanced battery management
10.Automatic battery charging in UPS off mode
11.Lighting and surge protection
12.Short circuit and overload protection
13.Network/fax/modem surge protection
14.Optional extension battery pack
Specification
| Model | 1KN/1KS | 2KN/2KS | 3KN/3KS | 6KN/6KS | 10KN/10KS |
| Power Capacity (VA/W) | 1KVA/0.7KW | 2KVA/1.4KW | 3KVA/2.1KW | 6KVA/4.2KW | 10KVA/7KW |
| Input | |||||
| Voltage Range | Load≤60%,55±5V~138±5V; 60%≤Load≤70%,60±5V~138±5V; 70%≤Load≤80%,70±5V~138±5V; Load80%≥80±5V~138±5V. | ||||
| Frequency Range | 46~54Hz(50Hz),or 56~64Hz(60Hz) | ||||
| Phase | Single phase | ||||
| Power Factor | >0.98 | ||||
| Output | |||||
| Voltage Range | 110VAC/115V/220VAC±2% | ||||
| Frequency Range | The same as the utility frequency (Line mode),50Hz±0.2%(Battery mode) | ||||
| Power Factor | 0.7 | ||||
| Waveform | Pure sine wave | ||||
| THD(Full linear load) | <3% | ||||
| THD(Full non-linear load) | ≤8%(Output :110V),≤10%(Output:115/120Vac) | ||||
| Current Crest Ratio | 3:1 Max | ||||
| Overload Capacity | Line mode:108%-150%, for 30s ,then transfer to bypass & alarm; >150%, for more than 200ms , transfer to bypass & alarm. Battery mode:108%-150%, for 30s , then turn off & alarm; >150%, for more than 200ms ,then turn off & alarm. | ||||
| Short-circuit protection | Bypass Mode: the breaker trip off ; AC/Battery mode:Circuit protection,inverter off, fault. | ||||
| Waveform | Pure sine wave | ||||
| Transfer time (AC mode & Battery mode) | 0ms | ||||
| Efficiency | ≥85%(AC mode );≥83%(Battery mode) | ||||
| Battery | |||||
| Type | 12V Sealed Lead-Acid Maintenance free Battery | ||||
| Recharge Time | 8hrs to 90% of capacity after full load discharge | ||||
| LED/LCD Indicators | |||||
| Status | Load Lever/Battery lever,battery,Utility Power,Inverter,Bypass,overload,default. | ||||
| Audible Alarm | |||||
| Condition | Bypass,battery mode,battery low,overload, fault | ||||
| Acoustic Noise | |||||
| At 1 meter distance | <45dBA | <50dBA | |||
| Communications | |||||
| DB-9 Port | RS232 Serial Interface,SNMP(Optional) | ||||
| Operating Temperature | 0~40°C | ||||
| Environmental | |||||
| Storage temperature | 25-55°C | ||||
| Atitude | <1500m | ||||
| Operating Humidity | 0~95% non-condensing | ||||
| Weight | |||||
| Net(kg) | 16.3/9.1 | 33/11.5 | 39/12.3 | 82.5/19.5 | 93.2/21.5 |
| Dimensions | |||||
| W*D*H(mm) | 482.6*450*88(2U) | 482.6*600*130(3U) | 482.6*606*174(4U) | ||
| Battery Pack Size | 482.6*450*88(2U) | 482.6*450*88(2U) | 482.6*600*130 | 482.6*606*174 | |

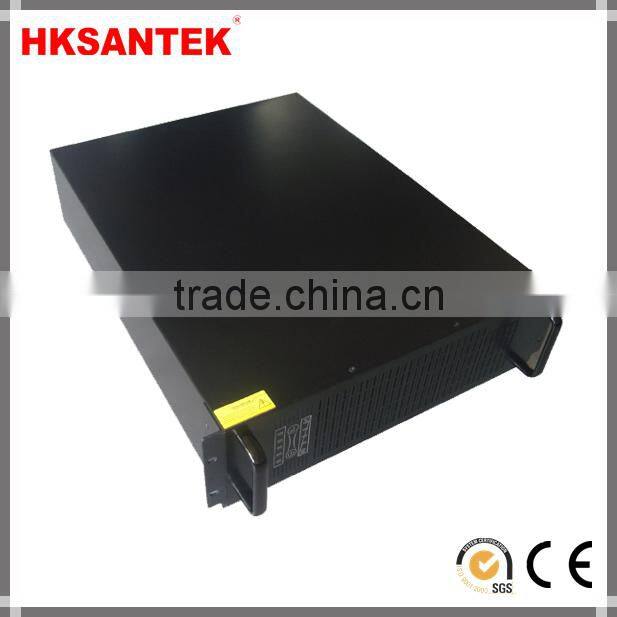

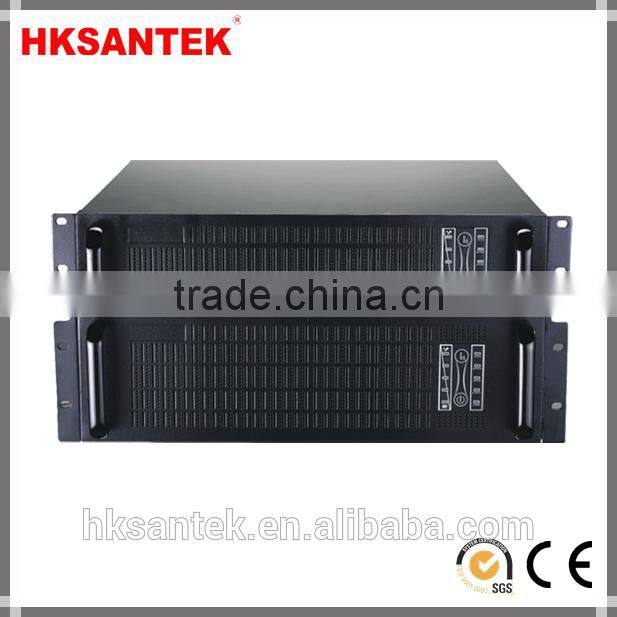

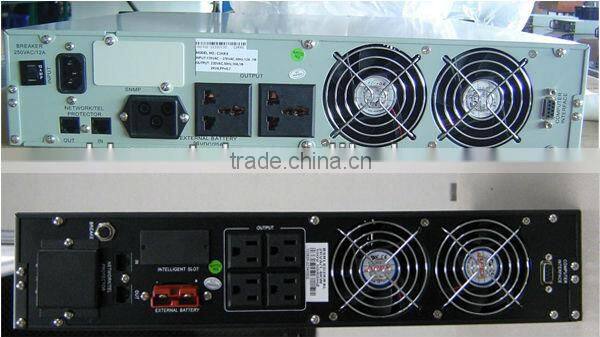

Product view
Shipping :
Delivery Time:
| Sample Lead time: | 5 days | |||||
| Production lead time: | 20days (subject to the actual quantity) | |||||
Certification:
About us
Founded in 2004, Shenzhen Sunray Power Co., Ltd is a professional manufacturer which produces and develops uninterruptible power supply (UPS) systems, inverter and solar power systems.
With our strong R&D team, complete quality system and advanced management, sunray has been one of the top suppliers in power field.
Our factory was located in GuangMing new district and it covers an area of 10000 square meters .
With advanced Ameirican technology and custmos from all over the word support ,the turnover of us surpassed 100 million RMB in 2004 .We always provide customs with good products.
Welcom to contact us!
