Specifications
1.Pure Sine Wave Online UPS 8KVA2.Sine Wave PWM Function
3.IGBT Inverter Design
4.MOQ:1pcs.
5.RS232

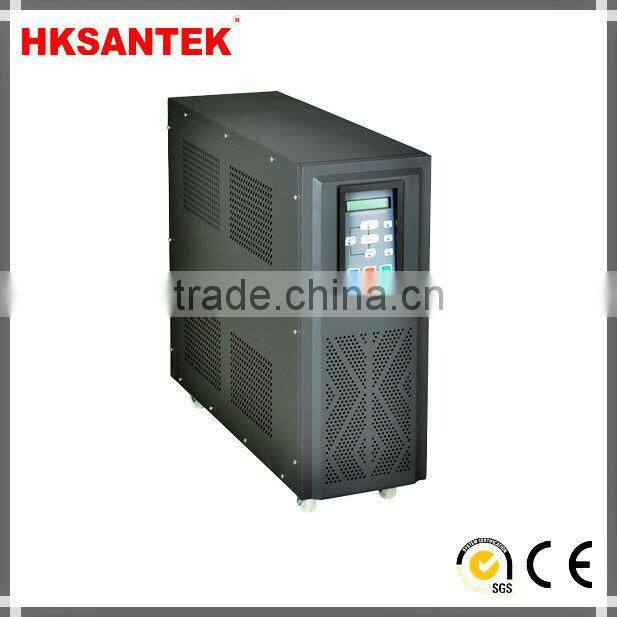

High Quality Low Frequency Industry Pure Sine Wave Online UPS 8KVA For Networking Equipments
True online double conversion design providing all power protection
Sine wave PWM function
IGBT inverter design
Wide input voltage range
Pure sine wave output with less than 3% THD
Generator compatible
Cold start
Load/battery power meter display
Overload, online, battery status LED/LCD
Advanced battery management
Automatic charging in UPS off mode
Zero transferring time on any mode transfer
Smart RS-232 communication port
Optional SNMP card
| MODEL | 1KS | 2KS | 3KS | 4KS | 6KS | 8KS | 10KS | 12KS | 15KS |
| RATED POWER | 1KVA | 2KVA | 3KVA | 4KVA | 6KVA | 8KVA | 10KVA | 12KVA | 15KVA |
| (VA/W) | 0.8KW | 1.6KW | 2.4KW | 3.2KW | 4.8KW | 6.4KW | 8KW | 9.6KW | 12KW |
| INPUT VOLTAGE | 220Vac or 230Vac | ||||||||
| INPUT | |||||||||
| VOLTAGE RANGE | 65~275Vac±5V with AVR | ||||||||
| FREQUENCY | 50/60Hz±5% | ||||||||
| Power Factor | >0.92 | ||||||||
| Max. input current | 6A | 10A | 14A | 24A | 34A | 45A | 56A | 65A | 84A |
| OUTPUT | |||||||||
| Voltage | 220Vac±1% or 230Vac±1% | ||||||||
| Frequency | 50/60Hz±0.5%(battery mode) | ||||||||
| Power Factor | 0.8 | ||||||||
| THD | <3% with linear load | ||||||||
| Overload Capability | >125% for 30s then turn to bypass; >150% for 1ms then turn to bypass | ||||||||
| Current Crest Ratio | 3:1(max) | ||||||||
| overall efficiency | >80% | ||||||||
| Transfer Time | |||||||||
| From inverter to battery | 0ms | ||||||||
| Battery | |||||||||
| Voltage | 48VDC | 192VDC | |||||||
| Recharge Time | 8~10 hrs to 90% of capacity after full load discharge | ||||||||
| LED /LCD Indications | |||||||||
| LED | Battery level,utility power,inverter,bypass,Fault, overload | ||||||||
| LCD | Input/output voltage,Frequency,battery voltage,load percent,Tempreature | ||||||||
| Communications | |||||||||
| interface | RS232 SNMP(optional) | ||||||||
| Protection Standard | |||||||||
| Surge Protection | lEEE527B | ||||||||
| Noise protection | FCC.A | ||||||||
| Working conditon | |||||||||
| Temperature | 0~40°C | ||||||||
| Humidity | 0~95%°C non-condensing | ||||||||
| Storage tempreature | -25°C~55%°C | ||||||||
| Acoustic Noise | <55dB(at 1 meter distance) | ||||||||
| Weight | |||||||||
| N.W(Kg) | 46 | 63 | 75 | 65 | 69 | 88 | 100 | 120 | 150 |
| G.W(Kg) | 56 | 78 | 90 | 85 | 89 | 118 | |||
| W×D×H)mm | 200×530×460(S) | 220×580×540(S) | |||||||
| S: long backup | |||||||||
| YD/T 1095-2000 | |||||||||
Produce line
Quality Control Equipment:
Applications:
Computer center,network center,communication system,automation control system or other critical system.
About the company
HKSANTEK'S Quality Policy
Qaulity is a system, quality is a project,it can contains all the activities of the whole factory,HKSANTEK's belief is "behave
ourseleves firstly, then keep the materials &produce in good level, finally assure the products's quality.everyactivity
effect the quality, so every one is the QC staff in factory.
All the running of HKSANTEK Company is compliant with the ISO9001-2008 and ISO 14001-2004
