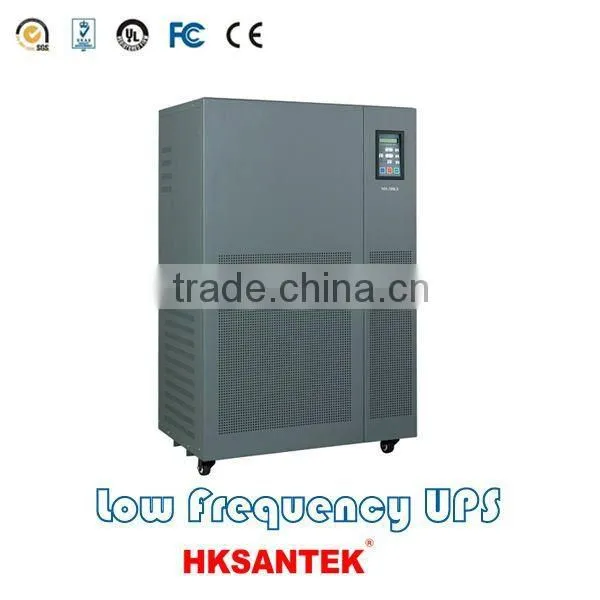

20KVA/16KW 3phase industrial frequency online ups

Specifications

20KVA/16KW 3phase industrial frequency online ups
1,True online double conversion
2, IGBT
3,optional SNMP

20KVA/16KW 3phase industrial frequency online ups



Application:

Critical servers, storage appliance and other networking equipments

Features:

True online double conversion design providing all power protection

Sine wave PWM function

IGBT inverter design

Wide input voltage range

Pure sine wave output with less than 3% THD

Generator compatible

Cold start

Load/battery power meter display

Overload, online, battery status LED/LCD

Advanced battery management

Automatic charging in UPS off mode

Zero transferring time on any mode transfer

Smart RS-232 communication port

Optional SNMP card

SPECIFICATION
MODEL	6KS	10KS	15KS	20KS	25KS	30KS
RATED POWER	6KVA	10KVA	15KVA	20KVA	25KVA	30KVA
(VA/W)	4.8KW	8KW	12KW	16KW	20KW	24KW
INPUT
INPUT VOLTAGE	380VAC(3 phases) or 190VAC(3 phase)
VOLTAGE RANGE	304-456VAC or 152-228VAC
FREQUENCY	50/60Hz±5%
Power Factor	>0.8
Max. input current	10A	16A	24A	32A	40A	56A
OUTPUT
Voltage	230VAC/120VAC±1%
Frequency	Sync to input(line mode),50Hz or 60Hz±0.05
Waveform Type	pure sinewave
Power Factor	0.8
THD	<3% with linear load
Overload Capability	110%-150% for 5 minutes or >150% for 300ms then transfer to bypass & alarm
Current Crest Ratio	3:1(max)
overall efficiency	>90%
Transfer Time
From inverter to battery	0ms
Battery
Voltage	192VDC				240
Recharge Time	8~10 hrs to 90% of capacity after full load discharge
LED /LCD Indications
LED	Battery level,utility power,inverter,bypass,Fault, overload
LCD	Input/output voltage,Frequency,battery voltage,load percent,Tempreature
Communications
interface	RS232       SNMP(optional)
Protection Standard
Surge Protection	lEEE527B
Noise protection	FCC.A
Working conditon
Temperature	0~40°C
Humidity	0~95%°C non-condensing
Storage tempreature	-25°C~55%°C
Acoustic Noise	<55dB(at 1 meter distance)
Weight
N.W(Kg)	118	155	240	297	326	336
G.W(Kg)	138	175	265	327	356	366
W×D×H mm	310X590X870		410X670X935	725X430X 1180
S: long backup
YD/T  1095-2000
