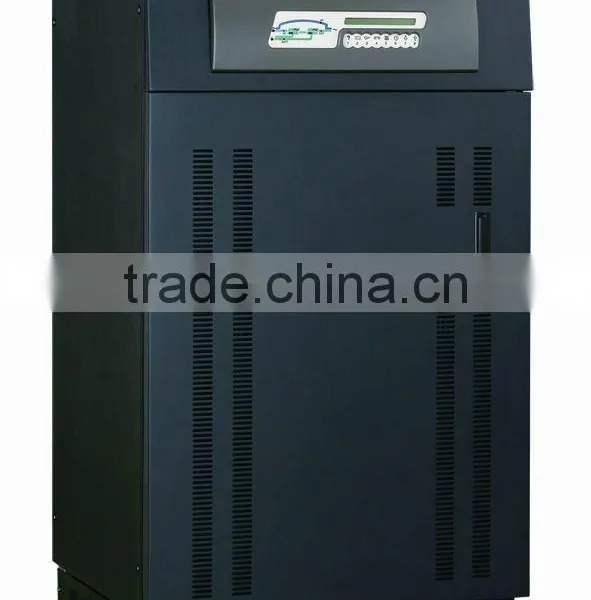

True Online three phase Low Frequency UPS 30K,60K 100K

Specifications

True Online three phase Low Frequency UPS
1,True online double conversion
2, IGBT
3,optional SNMP

True Online three phase Low Frequency UPS


High reliability
True on-line static bypass technology, to provide strong overload and fault protection device.
Internal manual maintenance bypass, further improve the reliability of continuous operation of the load.

Network management humanity
Communicate with PC by RS232.
Use SNMP adapter, UPS can realize remote network management function.

Parallel redundancy
Can parallel 8 units UPS;
Parallel UPS units can share a battery pack;
Non-fixed master/slave parallel

MODEL-HT	10KS	20KS	30KS	40KS	60KS	80KS	100KS	120KS	160KS	200KS
RATED POWER	10KVA	20KVA	30KVA	40KVA	60KVA	80KVA	100KVA	120KVA	160KVA	200KVA
(VA/W)	8KW	16KW	24KW	32KW	48KW	64KW	80KW	96KW	128KW	160KW
INPUT
INPUT VOLTAGE	380VAC(3 phases) or 190VAC(3 phase)
VOLTAGE RANGE	304-456VAC or 152-228VAC
FREQUENCY	50/60Hz±5%
Power Factor	>0.97
Max. input current	18A	37A	55A	72A	108A	130A	160A	190A	245A	310A
OUTPUT
Voltage	380VAC/190VAC±1%
Frequency	Sync to input(line mode),50Hz or 60Hz±0.05
Waveform Type	pure sinewave
Power Factor	0.8
THD	<3% with linear load
Overload Capability	110% for 300mins /125% for 10mins /150% for 1min then transfer to bypass & alarm
Current Crest Ratio	3:1(max)
overall efficiency	>90%
Transfer Time
From inverter to battery	0ms
Bypass
Voltage	380VAC
bypass voltage range	±10%,±15%,±20% adjustable
Battery
Voltage	384VDC						432VDC	480VDC
Recharge Time	8~10 hrs to 90% of capacity after full load discharge
LED /LCD Indications
LED	Battery level,utility power,inverter,bypass,Fault, overload
LCD	Input/output voltage,Frequency,battery voltage,load percent,Tempreature
Communications
interface	RS232       SNMP(optional)
Intelligent Slot	Dry Contact/EPO/SNMP Card (optional)
Working conditon
Temperature	0~40°C
Humidity	0~95%°C non-condensing
Storage tempreature	-25°C~55%°C
Acoustic Noise	<55dB	<60dB				<65dB	<70dB
Weight
N.W(Kg)	223	260	336	351	497	556	756	901	1300	1350
G.W(Kg)	280	317	393	408	574	633	856	1001	1400	1450
W×D×H mm	555*725*1220				800*745*1400		1070*745*1400		1420*745*1810
S: long backup
