CJ-10 Foundation Pile Concrete Defects Tester

Name: CJ-10 Foundation Pile Concrete Defects Tester
Brand: Solid
SKU: 103571729

US$ 2,812.9 - 3,540.9 MOQ: 1 Set

Key Specifications

Place of Origin:

Beijing, China

Brand Name:

Solid

Model Number:

CJ-10

Solid (Beijing) Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Beijing Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Beijing, China

Brand Name Solid

Model Number CJ-10

Power Other, Electronic, lithium battery, DC 12V,AC 100V~240V,50/60Hz

Usage Other, concrete ultrasonic tester

CJ-10 Foundation Pile Concrete Defects Tester

Product Description

Application of concrete Defects Tester:

Testing of building foundation piles by cross-hole sonic logging;

Inspection of concrete defects by ultrasonic method, such as uncompacted ,cellular, hole area.

Detecting defects of one hole by one trigger two receive.

Testing dynamic performance of geotechnical investigation,rock,concrete etc.

Specification

Technology code for testing of building foundation piles JGJ 106 —2003

Technical Specification of Dynamic Pile Tests for Highway Engineering JTG/TF81-01-2004

Technology specification for inspection of concrete defects by ultrasonic method CECS 21: 2000

Technical specification for geotechnical investigation method GB50021—2001

Technical Specifications of Concrete Defects Tester:

Main Control Unit	high-performance Embed Computer
Display	640*480High brightness TFT Panel
Receive Channel	2
Max Sample Data length	64k
Trigger Mode	Continuous Trigger,External Trigger
Trigger Voltage(V)	65,125,250,500,1000 selectable
Receive sensitivity	≤30μv
Amplifier gain	82dB
Amplifier bandwidth	5KHz~500 kHz
Sample Periods	0.05μs~6.4μs,8 grades electable
Sound time accuracy	0.05μs
Amplifier resolution	0.39%
Temperature	-10℃—+40℃
Power	Interior & External lithium battery,work more than 6 hours DC 12V AC 100V~240V,50/60Hz
storage	1G(Internal)+2G(U-Disk)
communication interface	USB
Weight	1.75 kg (include lithium battery)
Size	260 mm×185 mm×60 mm

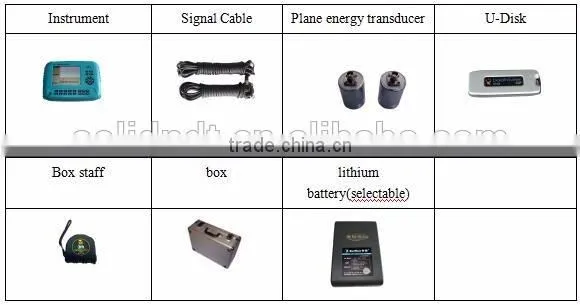

Concrete Ultrasonic Tester Interfaces

Features of non-metallic concrete ultrasonic defect tester

High efficient testing. Lifting speed is more than 60m/s(20 cm distance);
Display the test data graphically. User can watch analyze result directly;
Fast and precise Automatic judge the sound parameters. Real-time wave display to assure test efficiency;
Humanized software design. Software design apply to User and construction plant. its help information ensure user handle easily;
Linking the rebound apparatus directly. Detecting strength of concrete by ultrasonic-rebound combine method with linking rebound apparatus directly, and get strength of concrete in time. The functions apply for national patent;
Being sensitive to receiving signal. Can receive signal more than 10m in concrete without defects;
Can supply smooth power for radial energy transducer needless external power;
Standard USB storage with big capacity;
Interior lithium battery supply power for apparatus work more than 6 hours;
Portable, small, light apparatus (1.75Kg);
Extending function for testing thickness of concrete by impacting echo method;
Professional and powerful analysis software on windows system. It can export the data to Excel or word for advanced analysis.
