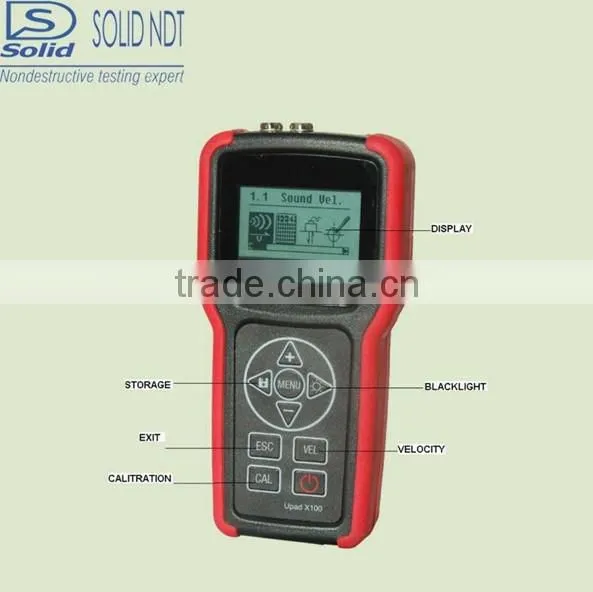

Solid UPAD VX manufactory 2016 newest Ultrasonic velocity gauge
1.Ultrasonic Velocity Gauge
2.Nondestructive Velocity Testing
3.Auto Probe Zeroing Calibration Without Block
Upad VX Series Ultrasonic Velocity Gauge will be the best choice for accomplishing measurement with its superior feather. It is reliable and durable.Upad VX Series fit to measure cast iron, metal, plastic, china, glass, glass fiber and any other good conductors of ultrasonic, complies to JB/T9219 Standards
SPECIFICATIONS
Principle |
Ultrasonic(Pulse-Echo/Echo-Echo) |
Dimension (mm) |
165×82×30 |
|||
Resolution |
0.1mm(> 100mm)/0.01mm(<100mm) |
Accuracy |
±(0.5%H+0.01)mm |
|||
Nodularity |
Percentage: 50~100%,1% Grade:1-6 |
Thickness Range |
0.75-50mm |
|||
Velocity |
1000~9999m/s |
Weight |
250g |
|||
Calibration |
Auto Sound-Velocity-Calibration |
Measuring Range |
Noarmal:0.75-40mm Coating: 2-25mm |
|||
Auto Probe Zeroing Calibration |
Pulser |
150V Negative Pulse |
||||
Indicator |
Probe Connection Indicator |
Receiver |
Gain |
High/Low/Auto |
||
Coupling Indicator |
Bandwidth |
0.5-15MHz |
||||
Environment |
Temperature:-20°C~70°C |
Measuring |
Result Showing |
Online Statistic/Velocity |
||
Humidity:5%~90% |
Statistic |
Online:Max Min ,Standard Devration |
||||
DISLAY |
LCD |
High-Contract 128*64 |
File: Max, Min AVG, mean square error |
|||
|
Beautiful printed characters, Number , Symbol, High Brightness EL Backlight |
Alarm |
Threshold Acoustooptical Alarm |
||||
Memory |
Files |
1000 groups |
||||
Thickness Logging |
1000 data sets/group ,liner |
|||||
|
Update Rate |
Single Point: 5 times/s |
USB Storage |
Connection USB is allowed, convenient to read thickness values |
|||
Scan Mode: 25times/s | ||||||
Input/Output |
Probe Cable |
LEMO 00 (C5) x2 |

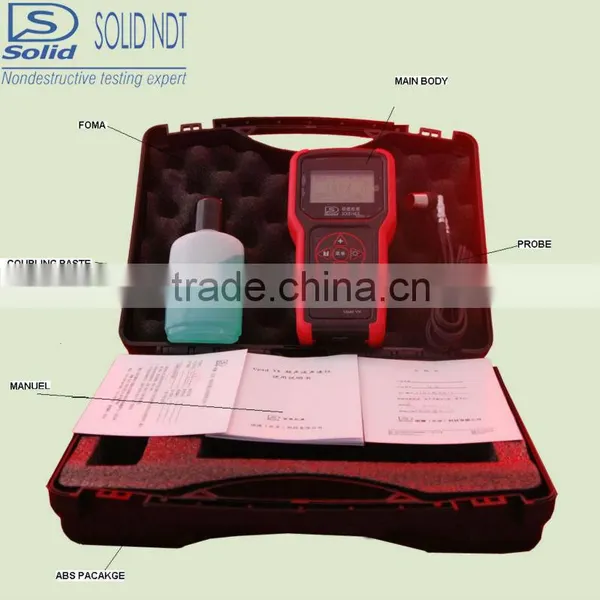

Standard Package |
Main Body |
1 |
|
Communication |
USB |
Probe |
1 |
|||
Language |
Chinese /English |
Manuel |
1 |
|||
Unit |
mm/inch |
Carrying Case |
1 |
|||
Power Source |
Battery |
1.5V AAA x4 |
Coupling paste |
1 |
||
Working Time |
200 hours |
Battery |
1 group |
|||
PROBE
Applying |
Mode |
Frequency |
Probe Diameter |
Measuring Range |
Min Pip Diameter |
Standard |
DA301S |
5 MHz |
10mm |
0.75mm~20.0mm |
Φ20mm×3.0mm |
High attenuation |
DA408S |
2 MHz |
22mm |
Less than 50mm |
20mm |
Our advantages:
- All of the items have 1 year warranty(we could change a new one for if there has quality problems,but buyer need to pay for the freight)
- We could prepare the products at once for customers' immediately purchase.
- We offer technic support and lifelong after-sale services.
Delivery Time:
1) After you make the order,we'll contact you and prepare the itme as fast as possible.
2) Finish preparing the model,we ship it for you by DHL/UPS/FedEx/TNT/EMS and give you the tracking number(The process takes about half one day or one day).
3) The shipping time is about 3~5 days by DHL/UPS/FedEx/TNT,10 days by EMS
4) We'll try our best to make the item arrive on time.As the courier,weather and local custom,maybe sometimes it'll be delayed.Your understanding will be highly appreciated
Pls take a Note:
A) The product will be carefully packed by cotton boxes before it's sent out.
B) We'll try our best to make the item arrive on time.As the courier,weather and local custom,maybe sometimes it'll be delayed.Your understanding will be highly appreciated.
C) Pls do not leave not good feedback before contacting us.We're always make the perfect services for our customers all the time.Making promise is the key point in business.
D) The product will be carefully TESTED,then packed by cotton box before it's sent to customer.
Warranty:
All of our products have 1 year warranty.That to say.If the model has any quality problems that you're satisfied,pls do not hesitate to send it back to us for changing a new one or repairing for you.This is our business,and we make the promise.
Contact details:
If you have any questions,pls feel free to e-mail us or call us directly.If nobody answers,pls do not worry.Leave us the message,we'll contact you as fast as possible.Thanks a lot.
Any problems,pls send me feedback or call me for details.We welcome your inquiry.Many thanks.
