Home > Products > FRP/FIBERGLASS SQUARE TUBES > Natural Surface Treatment and Building Application FRP Fiberglass Square Tube
Natural Surface Treatment and Building Application FRP Fiberglass Square Tube
- 10000 Meter / Meters per Month
- Fiberglass Square Tubes:Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | SC | Model Number: | SCJ160526001 |
| Application: | Industrial and Home Appliance,Agriculture,Gardening,Curtain Rods,etc | Surface Treatment: | Smooth | Technique: | Pultrusion |
| Dimensions: | Customized |
Packaging Details
Fiberglass Square Tubes: Carton,Woven belts
Product Description

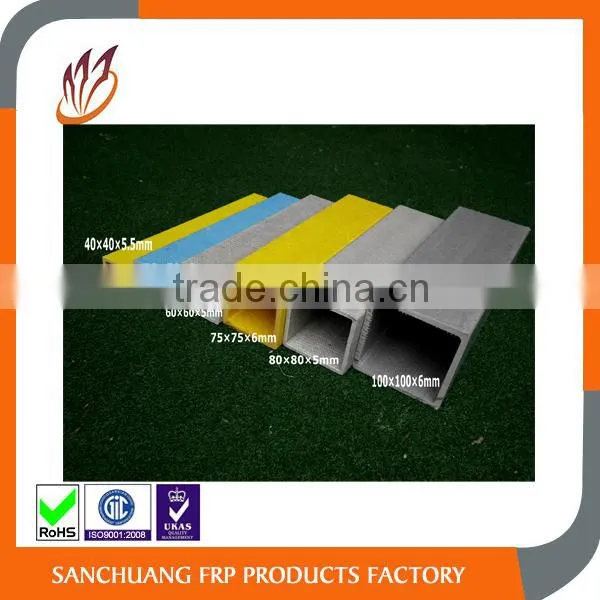

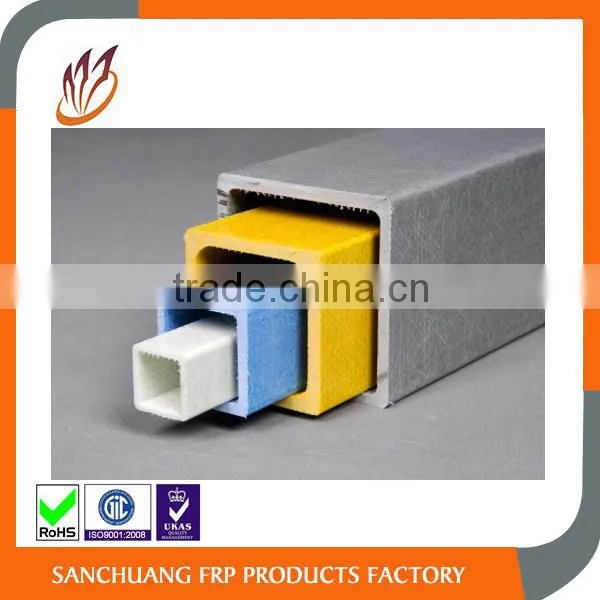

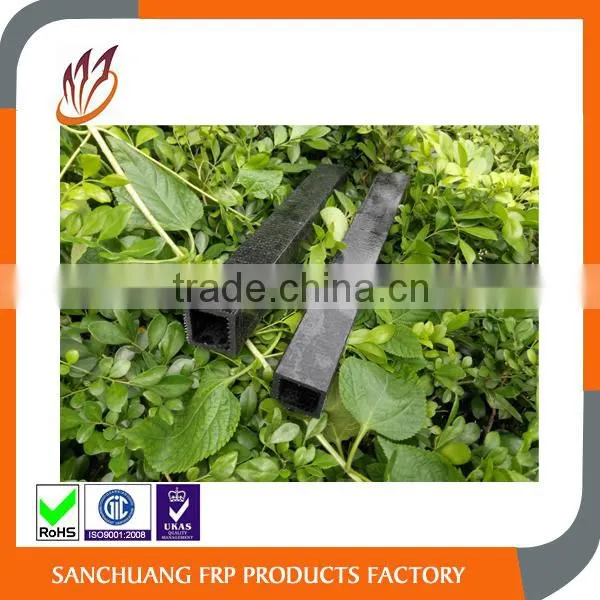

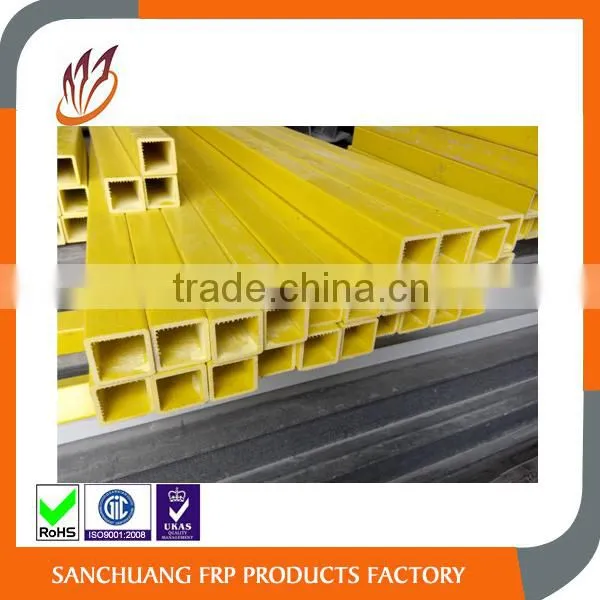

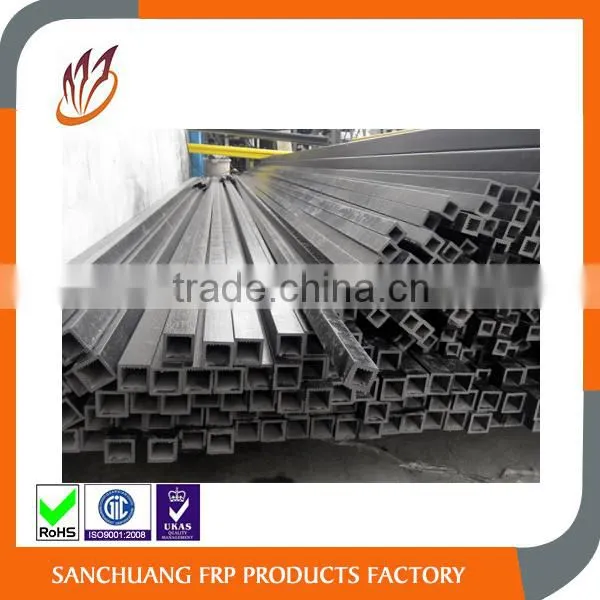

Natural Surface Treatment and Building Application FRP Fiberglass Square Tube

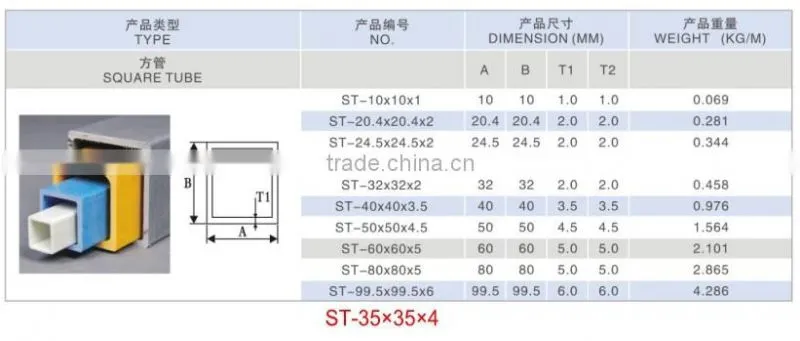

1.Specs
Currently,there are other standard sizes,which are not only have the exsiting moulds but also some stocks.If they are some just suitable for you,the mould cost as well as the cycle time can be reduced largely.What's more,a few samples can be provided free for your test first.Anyway,if you have some other specs required,customizing is always available and the most welcome.
3.Technogy
Pultrusion process is a kind of method to make continuous composite profiles,which use the twistless roving on the creel with other continuous reinforced composites, polyester surface mat,ect. to proceed the resin impregnation, and then keep the forming mould at certain section, make the continuous depanning after curing in the intramode. Thus,the pultrusion products come out by this automatic production process.Pultrusion products includes fiberglass pultrusion profiles,carbon fiber pultrusion profiles,fiberglass and carbon fiber pull wound profeiles,ABS or smilar thermoplastic and FRP or other thermoset co-extrusion profiles.The common products like round rods,round tubes,flat bars,square tubes,steel angles,U-bars,joist steels,T profiles and other kinds of special profiles.
4. Why choose Sanchuang's fiberglass hollow tubes?
1)High Strength
2)Excellent Heat Resistance
3)Low Water Absorption
4)Low Thermal Insulation Coefficient
5)Anti-corrosion
6)Anti-aging
7)Insulation
8)Security
The Features of Our Fiberglass Hollow Tubes:
High strength yet light weight: | Helps save on transportation |
Corrosion resistant: | Won’t rot, rust or corrode |
Fire-retardant and nonconductive: | Helps create a safer environment |
Dimensionally stable: | Won’t shrink, swell, warp or bow |
Virtually maintenance-free: | Durable and weather-resistant for a longer life cycle |
Easy to fabricate and install: | Can be cut, drilled and assembled with standard tools |
Non-leaching: | Does not require environmentally hazardous preservatives |
Fiberglass Hollow Tubes Testing Results for Physical Properties:
(No.) | Testing items | Unit | Testing results | Testing standard |
1 | Density | g/cm3 | 1.85-1.9 | ASTM D792 |
2 | Water absorption | % | 0.57 | ASTM D570 |
3 | Flexural strength | MPa | 302 | ASTM D790 |
4 | Flexural modulus | GPa | 18.6 | ASTM D790 |
5 | Tensile strength | MPa | 210 | ASTM D638 |
6 | Tensile modulus | GPa | 22 | ASTM D638 |
7 | Flame retardant rating |
| V0/V1 | UL94 |
8 | Dielectric breakdown voltage | KV | 14.98 | ASTM D149-09 |
Notes: The above testing results are based on ordinary materials, if any special requirements, feel free to contact with us.
5.Application
As a kind of excellent performance materials, the fiberglass hollow tubes are used very widely in industrial and home appliance art and craft,cages,agriculture and gardening,toy parts,tent poles,etc
Carton,films or woven belts are for your choice,while international express,by sea or air are available.If having sepcial request,pls tell us in advance!
Sanchuang FRP Products Factory has been a research and development, production and sales of composite technology enterprises since 2005.
Our Tenets:
Creating Excellence, Innovation, Honesty
The Main Products Include:
Fiberglass and carbon fiber pultrusion profiles
SMC/BMC/DMC molding products
RTM products
Winding molding tubes
High-quality hand lay-up products
So far,our company provide products and services for the United States, Canada, Germany, United Kingdom, France, Italy, Spain, Denmark, Netherlands, Sweden, Hungary, Bulgaria, Mexico, Australia, Japan, South Korea, Vietnam, Philippines, Egypt etc. more than 35 countries and over 120 customers .
Q: Are you Trading Company or Manufacturing Factory?
A: We are the leading manufacturer in Guangdong area for 10 years, our products have competitive price and quality guarantee. Welcome to send your inquiry!
Q: I am interested in your products, could I get sample for free?
A: We can supply a few pieces FREE samples if we have some in stock, and you only need to pay the freight cost by yourself. Welcome to send your inquiry for FREE samples!
Q: How about the delivery time?
A: 10-15days after receiving the deposit based on the MOQ. Normally, 30-35days to finish the order for a 20ft container. Of course, we can also meet the urgent delivery time if the production schedule is not tight. Welcome to ask for the detailed delivery time according to your order quantity!
Q: How can you guarantee the product quality?
A: We have the quality control system ISO9001:2008, and it’s been followed strictly. We also have the professional QC team, and each our package worker will be in charge of the final inspection according to the QC instruction before packing.
Q.What certifictes do you have?
A:Yes,ISO,SGS and ROHS are available now.Others also can be made as you request.
Q.Is the third party quality test acceptable?
A:Sure,it will be our great honor.They are always welcome.
Q.What's the life time of the FRP profiles?
A:Normally,it is about 15 years.
Q.How to make them with UV resistant?
A:Adding some UV resistant material.Sometimes,if it is in high demands,we will consider UV painting
Q: I'd like to know your payment terms.
A: Basically, the payment terms are T/T, L/C at sight. Western Union, Paypal, Moneygram, Alipay, Credit card are acceptable for sample order.
For more questions,product catalog,price and samples,click here now,we are always ready for you.
Company Profile
SanChuang FRP Products Factory is a comprehensive enterprise integrating research & development ,production ,sales .Our major products are fiberglass and carbon fiber pultruded profiles ,SMC/BMC compression molding products and hand lay-up products .
Our factory has advanced production lines for pultrusion ,pultrusion & winding ,FRP combined with plastic ,SMC/BMC .The FRP products are widely used in chemical industry ,construction ,power industry ,transportation ,light industry ,petrochemical industry ,sports ,agriculture and so on .At present ,our products have been sold to North America ,Europe ,Southeast Asia ,North Africa ,Japan ,and so on .
With the tenet "Creating Excellence, Innovation and Honesty" ,our facory established stable status in this field ,and our products are also approved by the customers .In the future ,we will always pursue high quality ,high technology content ,high value-added ,to supply superior products and services for all customers .
Welcome to visit our factory !
Contact Us
- Sanchuang FRP Products Factory In Shipai Town Dongguan City
- Contact nameLouis liu
- Phone0086-0769-86554662
- Address5 Road Chikan Industrial Estate,Shipai town. Dongguan,Guangdong
-
