Ultrasonic Flaw Detecor for sale

Name: Ultrasonic Flaw Detecor for sale
Brand: SOLID
Price: USD $2,900 - 8,000 / Piece

FOB Price

USD $2,900 - $8,000 / Piece

1 Piece(Min.Order)

Supply Ability 30 Piece / Pieces per Month
Port Beijing
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Beijing, China	Brand Name:	SOLID	Model Number:	ufd
Power:	Electronic	Usage:	Process Testing Machine

Product Description

Ultrasonic Flaw Detecor for sale

Feature

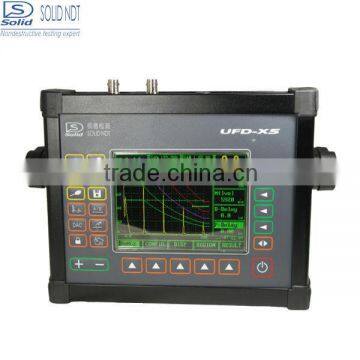

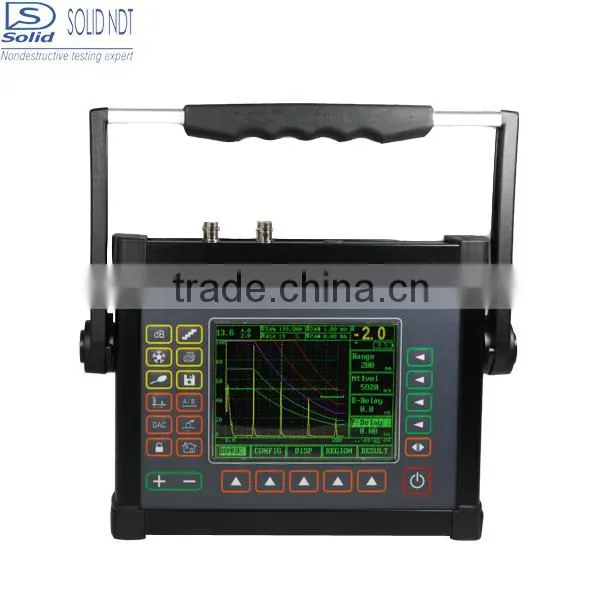

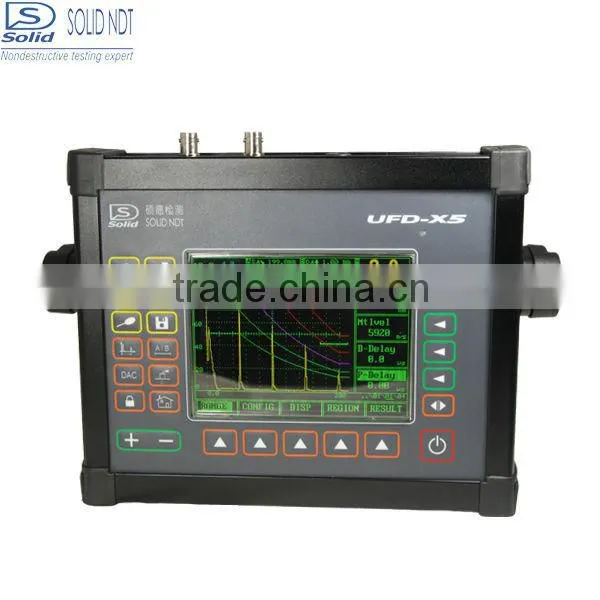

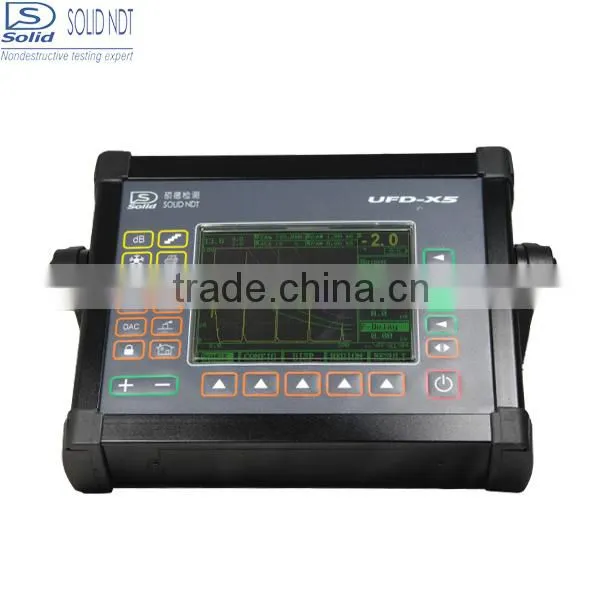

SOLID UFD X5 digital intelligent ultrasonic detectors uses the latest ultrasonic detector design and manufacturing technology, perfectly blend the science technology and humanity, elegant and fashionable.Using integrated circuit, free charge maintenance and design, high-Speed USB data communications. Widely used in electric power, railway, petrochemical industry, boiler pressure, steel structure steel manufacturing, metallurgy industry, shipbuilding, aerospace and other fields.

Specification

Measuring Range

1.0-1,200mm

Measuring Resolution

0.01mm(< 100mm)/ 1mm(>100mm)

Velocity

500~20,000m/s( 20 fixed velocities)

Delay

Display Delay: -20~3400us resolution: 0.1us Probe Delay : 0~99us resolution: 0.01us

Auto Calibration

Velocity Calibration& Probe Delay Calibration

Linear Error

Horizontal linearity error≤0.1% Vertical linearity error ≤3%

Dynamic Range

≥36dB

Sensitivity Leavings

≥64dB 200mm 2 flat-bottomed hole

Dimension (mm)

240*180*50

Weight

1.9Kg(including battery pack)

Working Environment

Temperature:-20°C~70°C, Humidity:5%~90%,

Pulse

150V Negative Pulse

Damping :50/150/400Ω

Pulse repetition frequency PRF could be adjusted

Receiver

Measuring mode:Peak /Verge

Bandwidth:0.3~1 / 0.5~4 /2~15MHz

Detector Pattern: RF/Full-Wave/Positive /Negative half- wave

Testing Mode: pulse-Echo/Pulser-Receiver/transmission

Gain :0 to 110dB Customers define steps 0/0.2/0.5/1/2/6/12

Display

LCD

TFT Color. Display,5 options for variable brightness.

GUI Theme

Simple/Classical/Gray/Bright Light/ Dark Light

Screen Update Rate

≥60 Hz

Gate/Measuring/ Alarm

Gate

Two Separated Gates A/B

Value Display

5 value display areas, one of them is mainly area. Chosen measuring content SA/SB/DA/DB/PA/PB/A%A/A%B/dBtA/dBtB/dBrA/dBrB/SBA/DBA/PBA/LA/LB

Alarm

Thickness Value Threshold Alarm ,Separated Gate Alarm Logically

Memory

Channelparameters: 20 groups

A Scan: 2000 groups

Thickness Logging: 200,000 data sets ,liner

Wave Video: 5 min

Reference Wave:4

Input/Output

Probe Cable: LEMO/BNC

Communication :RS232

Area

Language: Chinese /English

Unit: mm/inch

Clock: Date and Time

Power Source

Battery:High power lithium battery ,capable of preventing over-charge and over-discharge

Power Indicator:Proportional battery gauge indicating remaining operation time

Working Time:Continuous working over 10 hours

Power adapter:Input 100~240V/50~60Hz output 9VDC/4A

High Grade

USB for Storage

3 kinds of data report, screenshot , wave, thickness value

Gate:

Analysis the details of the wide gate area

B Scan:

Thickness/ Shape scan Gray/Color board Design

Freezing Curve

Yes

Feature Indicator

Measuring of the sound distance wave front & amplitude

CSC Curve Calibration

Value correction according to probe angle, pieces thickness and curvature diameter

Lock

Single menu independently lock to avoid system adjust related data;

Data group could lock to avoid wrong delete

Screen saver

Standby/Character/Power Off

Equivalent Curve

DAC curve

Recording 30 calibration points; auto gain; any order calibration; two correction matter calibration/edit ; considering of material attenuation and surface saving factor; 5 estimate curves of adjusted gain, comply to JIS&API standard

DGS Curve

DGS Curve fits to three references, includes flat bottomed ,flat-bottomed hole, through holes; considering of material attenuation and surface saving factor, estimating flaw matter; equivalent size/equivalent gain/percentage;

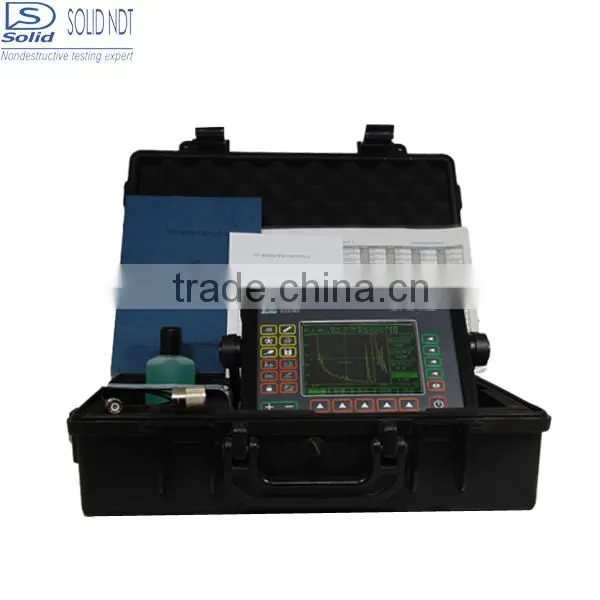

Standard Package

Main Body 1

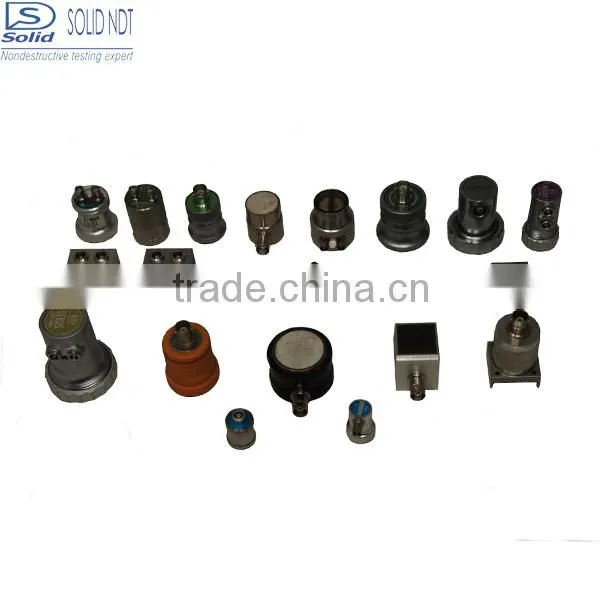

Straight probe 1

Angle probe 1

Manuel 1

Carrying Case 1

Probe Cable 1

Coupling Paste 1

Power Adaptor 1

Battery 1 group

Optional Accessories

Interface Gate:Applied when flaw detector in a environment which has medium, e.g water

Printer:TP serial printer , 3 data report: screen shot , wave , thickness value

Huge capacity battery:Continuous working time: over 20 hours
