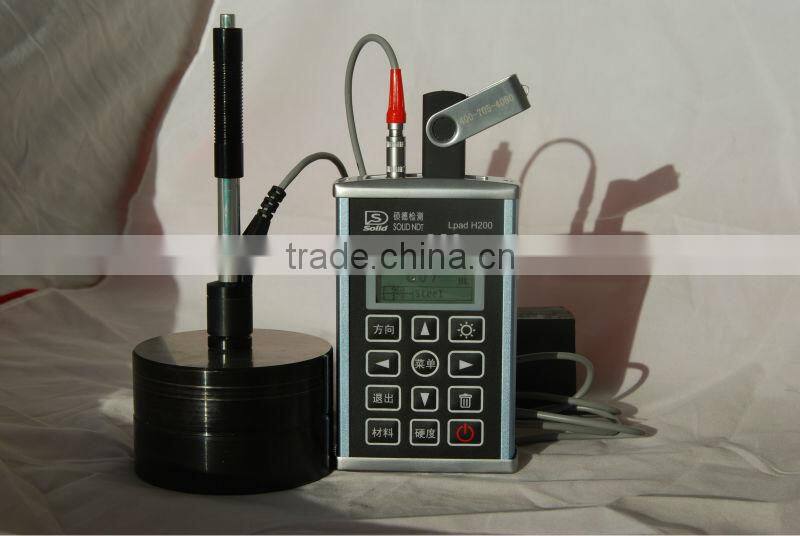

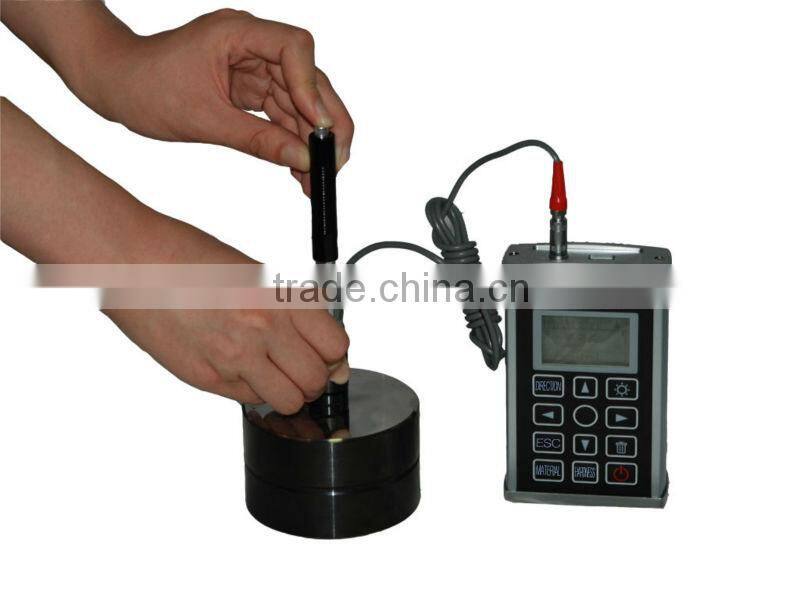

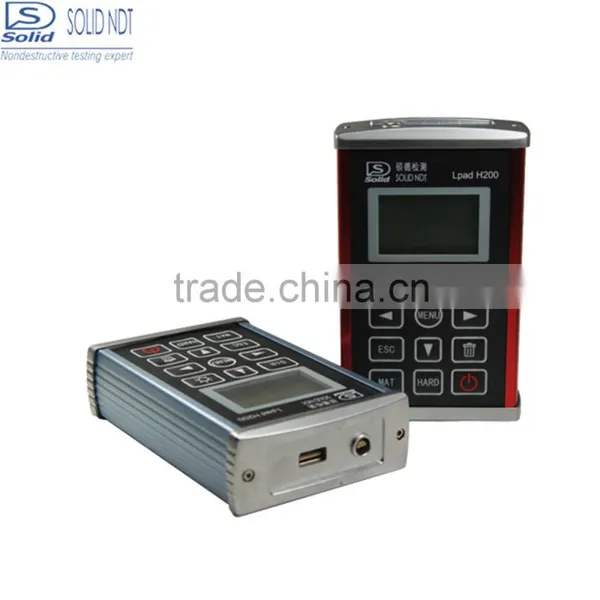

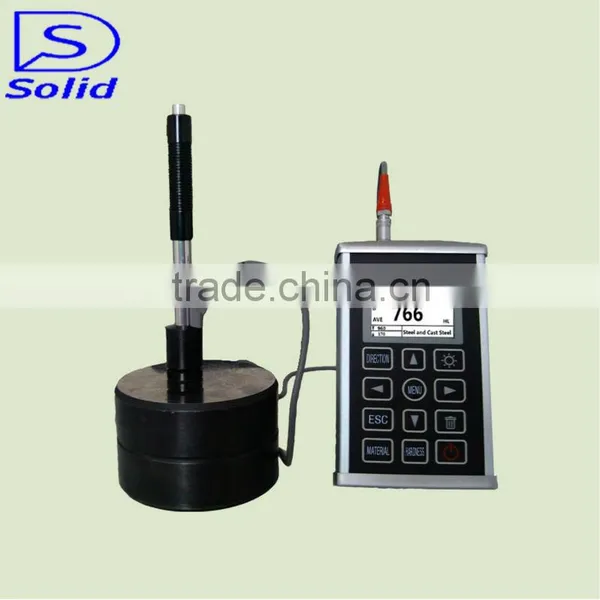

Solid LpadH200 Electronic Hardness Tester

Measuring Direction

Universal (Up,Inclined Up, Down, Inclined Down ,Level)

Measuring Range

(170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV,(30.6-102.6)HS, (59.1-88)HRA, 13.5-101.7)HRB

Hardness Scale

H ,HB , B(HRB), C(HRC) , A(HRA) , HV , HS

Accuracy

±0.5%(HLD=800)

Indication Repeatability 0.8%

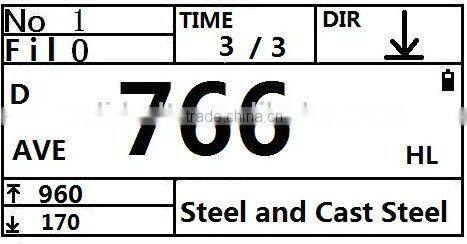

Display

High contrast 128x64 LED Beautiful printed characters ,Number , Symbol, High Brightness EL Backlight

Memory

Data Sets: 600 files

Data Scan     Yes

Language: Chinese /English

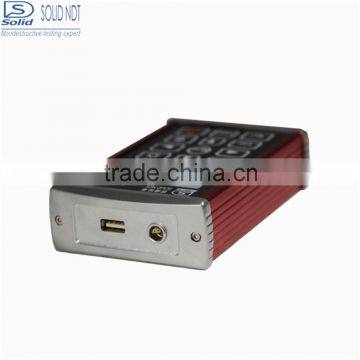

USB for Storage : connection USB is allowed ,there is no need other software for reading results

Power

Battery: 1.5V AA Battery*2

Low Battery Indicator: Yes

Power Off : Auto

Working Time: Over 200 hours

Environment

Operation Temperature-10-50°C

Storage Temperature:-30°C-60°C

Relative humidity≤90%

Standard Package

Main Body               1

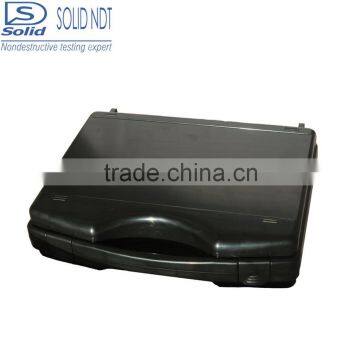

Carrying Case               1

D Impact Device          1

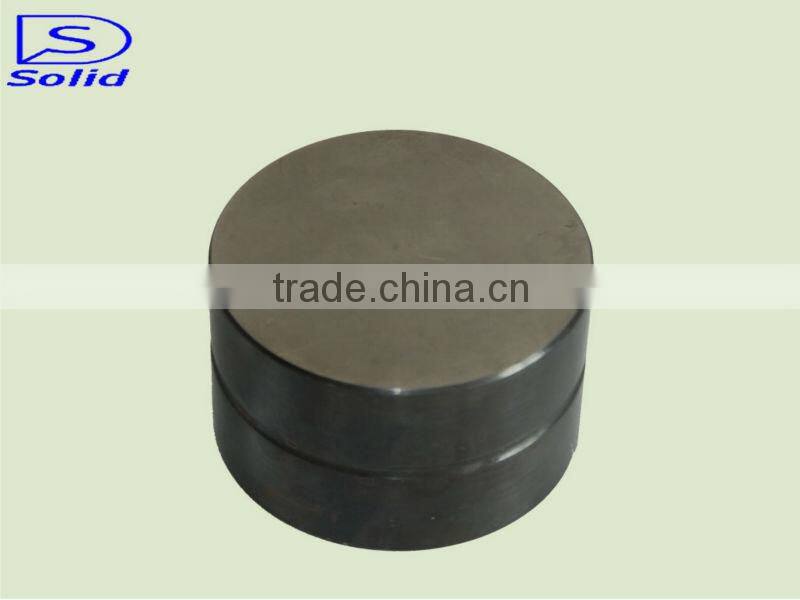

Standard Block                 1

Materials

Steel and Cast Steel ,Alloy Working Steel ,Stainless Steel, Gray Cast Steel, Ductile Iron, Casting Aluminum Alloy, Brass, Bronze, Cooper, forged steel

Applying Area

Axe or other parts    Analysis of pressure vessel,turbine and other devices invalid; heavy working pieces; Installed machines or permanent assembly; Working pieces with a narrow testing space;

Regular and original report are required; Metal material warehouse material distinction ;

Large scale work pieces in several big range measuring parts of the rapid inspection
