Solid Newest pen mini stone hardness tester

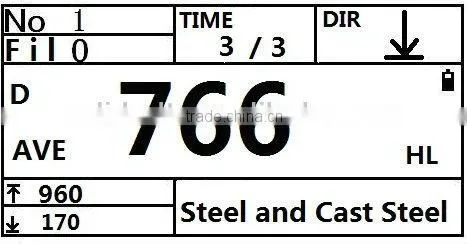

1:Different Hardness Scales Display
2::Threshold Alarm
3::Massive Data Memory-600 data files
4:Battery:1.5V*2
Advantages
Spercifications
|
The measuring direction Support.360(vertical,inclined,horizontal,oblique, vertical) |
The impact energy Impact of body mass |
11mJ 5.5g/7.2g |
|
|
Detection range (170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV,(30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB |
Ball hardness: Ball diameter: The ball head material: |
1600HV 3mm Cac2 |
|
|
Hardness standards HL,HV,HRA,HRC,HRB,HB,HV,HS |
Impact device diameter: Impact device length: Weight of the device: |
20mm 86(147)/ 75mm 50g |
|
|
Error of indication HLD:±6 (760HLD) |
The maximum hardness: |
940HV |
|
|
Repeatability value HLD:6 (760HLD) |
Surface average roughness Ra : |
1.6μm |
|
|
Power Supply Rechargeable lithium battery |
The minimum weight of specimen: Direct measurement Stable support To compact coupling |
>5kg 2~5kg 0.05~2kg |
|
|
Appearance size 148mm×40mm×30mm |
The minimum thickness of specimen Dense coupling The minimum depth of hardened layer |
5mm ≥0.8mm |
|
Working conditions |
Ball indentation size |
||
Rechargeable lithium battery |
The hardness of 300HV |
The indentation diameter |
0.54mm 24μm |
Working time |
The hardness of 600HV |
The indentation diameter |
0.54mm 17μm |
More Details
Main Produscts
Red
Dark Blue
Orange
Packaging & Shipping
Our Services
Our Certifications
We established in 2006 . We are a professional manufacturer for non-destructive testing (NDT) instruments which includes hardness tester, ultrasonic thickness gauge, ultrasonic flaw detector etc.
Our Clients
Our Partners
Our advantages:
- All of the items have 1 year warranty(we could change a new one for if there has quality problems,but buyer need to pay for the freight)
- We could prepare the products at once for customers' immediately purchase.
- We offer technic support and lifelong after-sale services.
Delivery Time:
1) After you make the order,we'll contact you and prepare the itme as fast as possible.
2) Finish preparing the model,we ship it for you by DHL/UPS/FedEx/TNT/EMS and give you the tracking number(The process takes about half one day or one day).
3) The shipping time is about 3~5 days by DHL/UPS/FedEx/TNT,10 days by EMS
4) We'll try our best to make the item arrive on time.As the courier,weather and local custom,maybe sometimes it'll be delayed.Your understanding will be highly appreciated
Pls take a Note:
A) The product will be carefully packed by cotton boxes before it's sent out.
B) We'll try our best to make the item arrive on time.As the courier,weather and local custom,maybe sometimes it'll be delayed.Your understanding will be highly appreciated.
C) Pls do not leave not good feedback before contacting us.We're always make the perfect services for our customers all the time.Making promise is the key point in business.
D) The product will be carefully TESTED,then packed by cotton box before it's sent to customer.
Warranty:
All of our products have 1 year warranty.That to say.If the model has any quality problems that you're satisfied,pls do not hesitate to send it back to us for changing a new one or repairing for you.This is our business,and we make the promise.
Contact details:
If you have any questions,pls feel free to e-mail us or call us directly.If nobody answers,pls do not worry.Leave us the message,we'll contact you as fast as possible.Thanks a lot.
Any problems,pls send me feedback or call me for details.We welcome your inquiry.Many thanks.
