Solid NDT hvs 10 vickers hardness tester
- 50 Piece / Pieces per Month
- Beijing
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Beijing, China | Brand Name: | SOLID | Model Number: | UFD X5 |
Power: | Electronic | Usage: | Process Testing Machine |
Product Description
Specifications
1 portable flaw detector2 USB for Storage ,Plug and Play
3 B Scan-Display Flaw Directly
4 Intelligent DAC curves
Solid NDT hvs 10 vickers hardness tester
1 portable flaw detector
2 USB for Storage ,Plug and Play
3 B Scan-Display Flaw Directly
4 Intelligent DAC curves
1 portable flaw detector
2 USB for Storage ,Plug and Play
3 B Scan-Display Flaw Directly
4 Intelligent

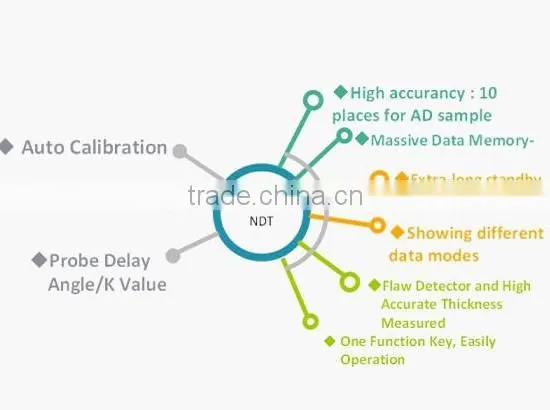

Advantages
Specification
Measuring Range | 1.0-1,200mm | ||||||
Measuring Resolution | 0.01mm(< 100mm)/ 1mm(>100mm) | ||||||
Velocity | 500~20,000m/s( 20 fixed velocities) | ||||||
Delay | Display Delay: -20~3400us resolution: 0.1us Probe Delay : 0~99us resolution: 0.01us | ||||||
Auto Calibration | Velocity Calibration& Probe Delay Calibration | ||||||
Linear Error | Horizontal linearity error≤0.1% Vertical linearity error ≤3% | ||||||
Dynamic Range | ≥36dB | ||||||
Sensitivity Leavings | ≥64dB 200mm 2 flat-bottomed hole | ||||||
Dimension (mm) | 240*180*50 | ||||||
Weight | 1.9Kg(including battery pack) | ||||||
Working Environment | Temperature:-20°C~70°C, Humidity:5%~90%, | ||||||
Pulse | 150V Negative Pulse | Damping :50/150/400Ω | |||||
Pulse repetition frequency PRF could be adjusted | |||||||
Receiver | Measuring mode:Peak /Verge | Bandwidth:0.3~1 / 0.5~4 /2~15MHz | |||||
Detector Pattern: RF/Full-Wave/Positive /Negative half- wave | |||||||
Testing Mode: pulse-Echo/Pulser-Receiver/transmission | |||||||
Gain :0 to 110dB Customers define steps 0/0.2/0.5/1/2/6/12 | |||||||
Display | LCD | TFT Color. Display,5 options for variable brightness. | |||||
GUI Theme | Simple/Classical/Gray/Bright Light/ Dark Light | ||||||
Screen Update Rate | ≥60 Hz | ||||||
Gate/Measuring/ Alarm | Gate | Two Separated Gates A/B | |||||
Value Display | 5 value display areas, one of them is mainly area. Chosen measuring content SA/SB/DA/DB/PA/PB/A%A/A%B/dBtA/dBtB/dBrA/dBrB/SBA/DBA/PBA/LA/LB | ||||||
Alarm | Thickness Value Threshold Alarm ,Separated Gate Alarm Logically | ||||||
Memory | Channelparameters: 20 groups | A Scan: 2000 groups | |||||
Thickness Logging: 200,000 data sets ,liner | Wave Video: 5 min | Reference Wave:4 | |||||
Input/Output | Probe Cable: LEMO/BNC | Communication :RS232 | |||||
Area | Language: Chinese /English | Unit: mm/inch | Clock: Date and Time | ||||
Power Source | Battery:High power lithium battery ,capable of preventing over-charge and over-discharge | ||||||
Power Indicator:Proportional battery gauge indicating remaining operation time | |||||||
Working Time:Continuous working over 10 hours | |||||||
Power adapter:Input 100~240V/50~60Hz output 9VDC/4A | |||||||
More Details

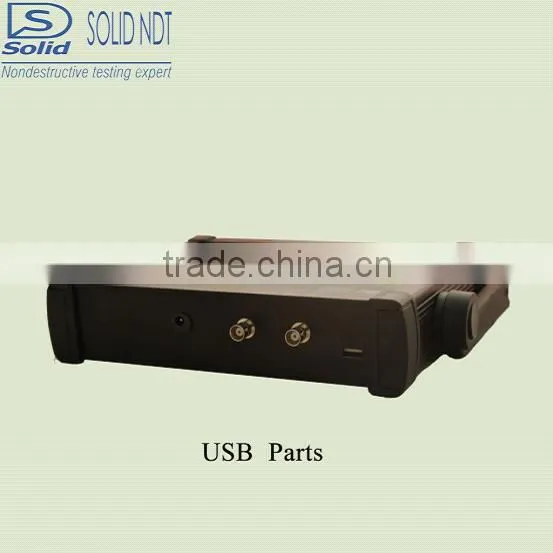

USB Parts

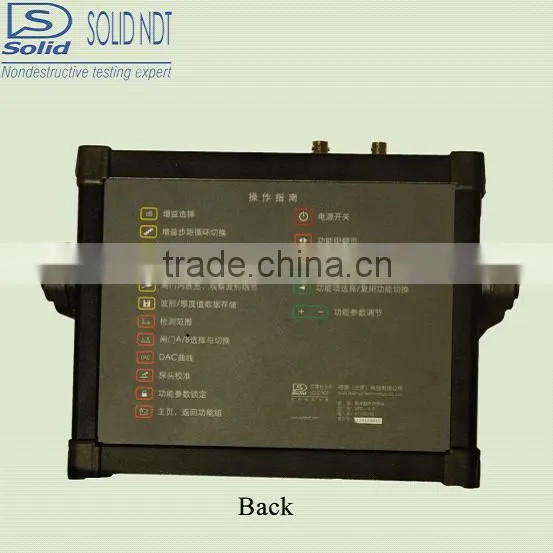

Back

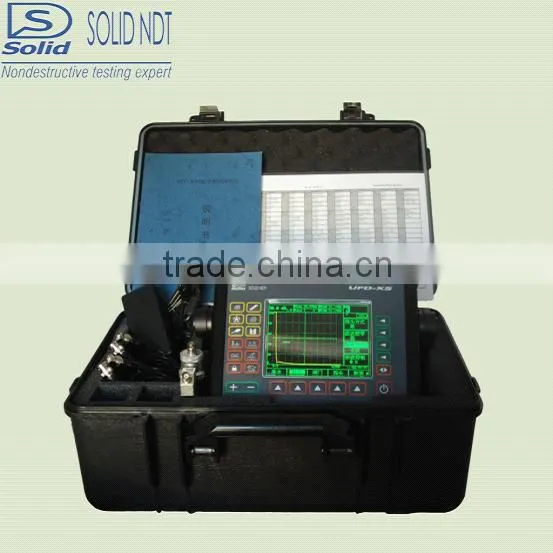

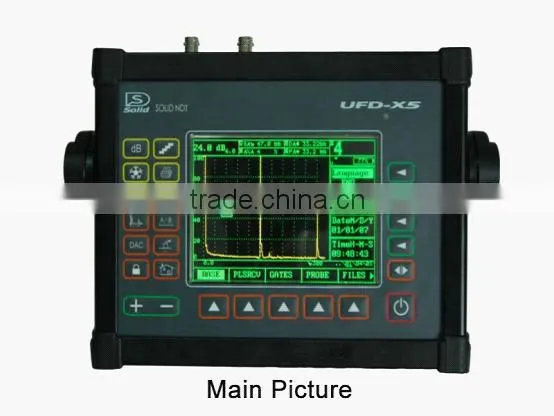

Whole Picture
Our Certification

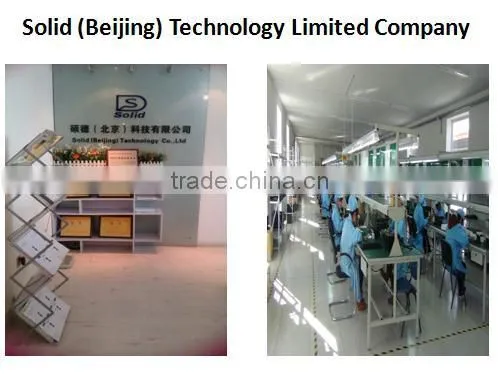

We established in 2006. We are a professional manufacturer for non-destructive testing (NDT) instruments which includes hardness tester, ultrasonic thickness gauge, ultrasonic flaw detector etc.
