Specifications
1: Portable design, light to take.2: High contrast OLED display
3: Custom curve according to your demand
4: Blue tooth

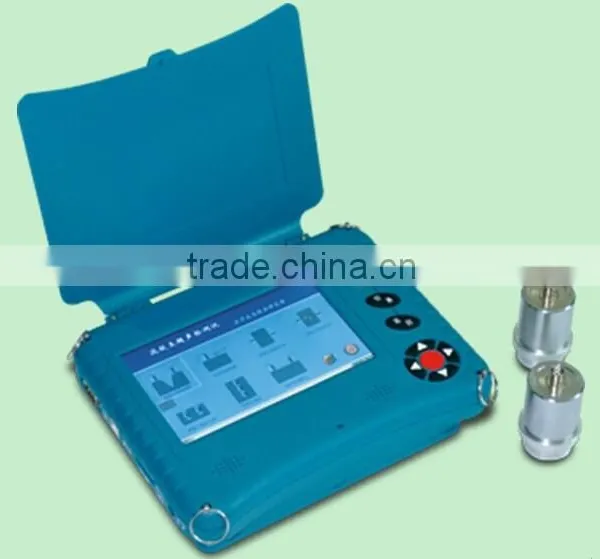

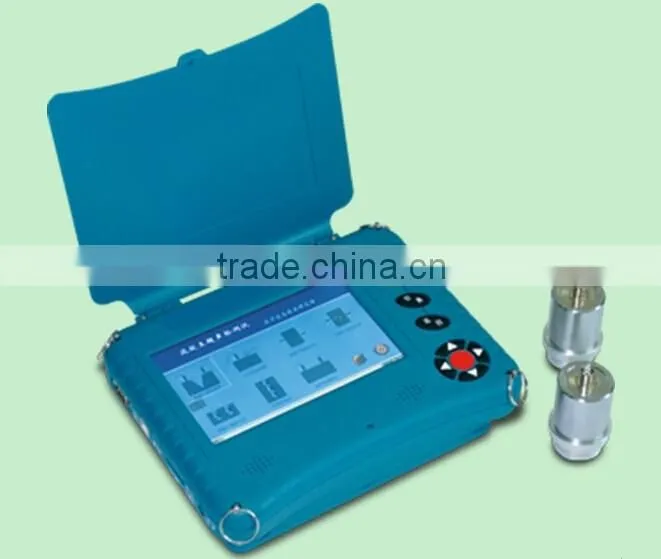

Solid 2014 portable ultrasonic pulse velocity
1,Touch screen operation simplify the test process simple and quick.
2,Voice announcing and text prompts is extremely friendly to users.
3,Instrument has a variety of helping documents and video presentations of how to operate the instrument.
Mass storage
4,2GB SD can store more than 100,000 measurement results.
Low-carbon energy
5,Rechargeable highly efficient lithium batteries decreases power consumptions.
Main technical parameters:
1,Based ARM9 embedded hardware platform, WinCe 5.0
Operating System, true-color TFT display with touch screen
2,Number of channels: 2
3,Receiving Sensitivity: ≤ 10μV
4,Amplifier bandwidth: 5Hz ~ 500kHz
5,Amplitude range: 0 ~ 177dB
6,Transmit time measurement: 0.025us ~ 19999.9μs
7,Transmit time measurement resolution: 0.025μs
8,Transmit measurement accuracy: ≤ ± 0.05μs
9,Maximum sampling length: ≤ 64KB
10,Sampling rate: 40Msps per channel
11,Power supply: Rechargeable lithium battery
12,Battery hours : ≥ 28 working hours
13,Ambient temperature range: -10 °C ~ +50 °C
14,Working humidity: ≤ 90% RH
Packaging & Shipping
Our Services
Company Information
We established in 2006. We are a professional manufacturer for non-destructive testing (NDT) instruments which includes hardness tester, ultrasonic thickness gauge, ultrasonic flaw detector etc.
