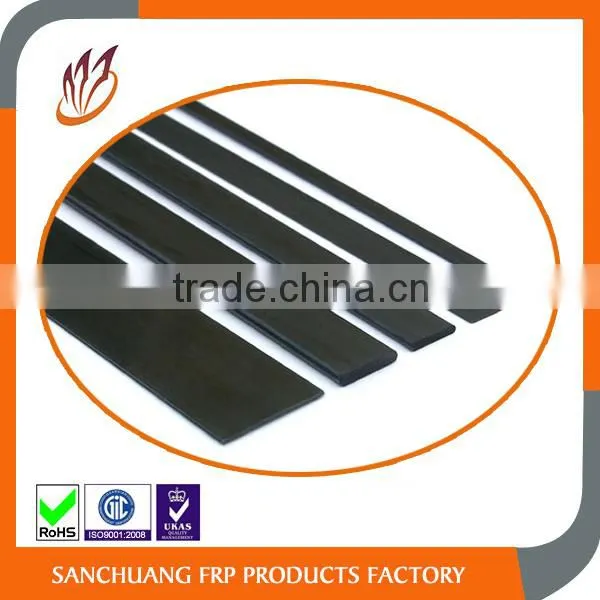

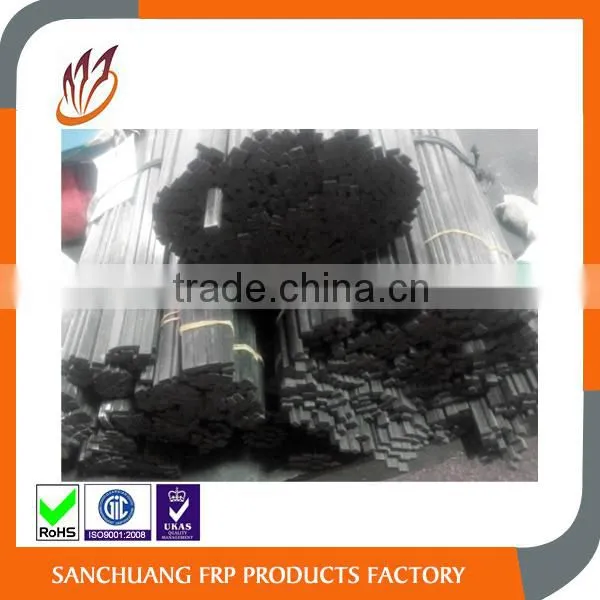

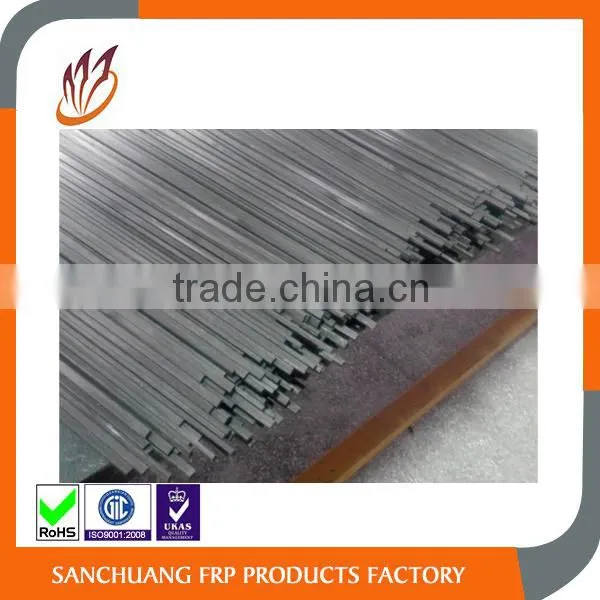

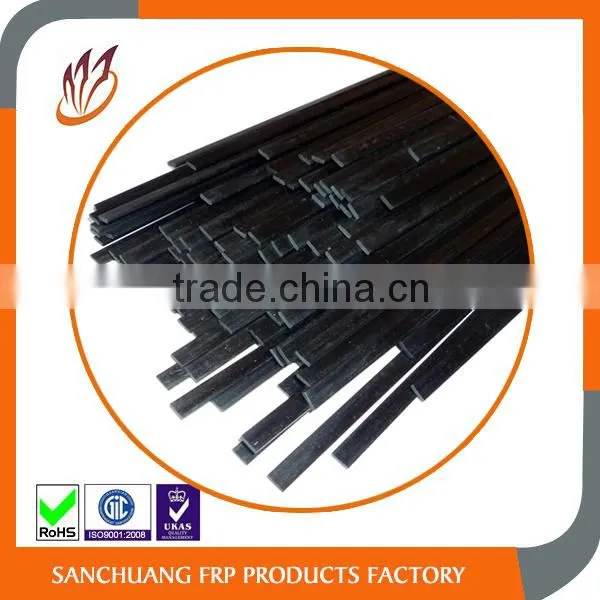

Carbon Fiber Pultruded Strip
- Excellent Corrosion Resistance, can be used in wicked acid, alkaline, or other corrosive environments;
- Light weigh, the density is around 1.5g/cm3, 80% lighter than Steel, 40% lighter than aluminum;
- High strength, especially the high modulus;
- Non-Conductive, can meet the strict requirement for the electric industry;
- Long service life and maintenance-free, can be used for at least 10 years with normal usage;
SOME TYPICAL SIZES IS FOLLOWING
|
CARBON FIBER STRIP CARBON FIBER FLAT BAR |
NO. |
DIMENSION (MM) |
WEIGHT (KG/M) |
|
W |
T |
|||
|
CS-3×0.5 |
3 |
0.5 |
0.002 |
| CS-3×0.86 | 3 | 0.86 | 0.0039 | |
CS-10×1 |
10 |
1 |
0.0151 |
|
CS-23x1 |
23 |
1 |
0.0347 |
|
CS-12x2 |
12 |
2 |
0.0362 |
|
CS-23x2 |
23 |
2 |
0.0695 |
|
CS-9.5x3 |
9.5 |
3 |
0.043 |
|
CS-10x3 |
10 |
3 |
0.0453 |
|
CS-12x3 |
12 |
3 |
0.0544 |
|
CS-15x3 |
15 |
3 |
0.068 |
|
CS-25x3 |
25 |
3 |
0.113 |
|
CS-7x4 |
7 |
4 |
0.0423 |
|
CS-20x4 |
20 |
4 |
0.121 |
|
CS-12x5 |
12 |
5 |
0.0906 |
|
CS-20x5 |
20 |
5 |
0.151 |
|
CS-30x5 |
30 |
5 |
0.227 |
|
CS-11x6 |
11 |
6 |
0.0997 |
|
CS-10x10 |
10 |
10 |
0.151 |
|
CS-41x12.5 |
41 |
12.5 |
0.774 |
|
CS-76x8 |
76 |
8 |
0.918 |
|
CS-150x3 |
150 |
3 |
0.68 |
|
APPLICATION OF THE CARBON FIBER STRIPS,CARBON FIBER FLAT BAR
Carbon fiber strips can be used widely in many fields ,just like Medical Instruments and Components,Industrial Tools, Kite Framework, Model Airplane Framework and Parts, Remote Control Cars, Planes, Boats, Truck and Components, Recreational Applications – Fishing Rods, Golf Clubs
Cartons,films or woven belts are for your choice,while international express,by sea or air are available.If having sepcial request,pls tell us in advance!
Sanchuang FRP Products Factory has been a research and development, production and sales of composite technology enterprises since 2005.
Our Tenets:
Creating Excellence, Innovation, Honesty
The Main Products Include:
Fiberglass and carbon fiber pultrusion profiles
SMC/BMC/DMC molding products
RTM products
Winding molding tubes
High-quality hand lay-up products
So far,our company provide products and services for the United States, Canada, Germany, United Kingdom, France, Italy, Spain, Denmark, Netherlands, Sweden, Hungary, Bulgaria, Mexico, Australia, Japan, South Korea, Vietnam, Philippines, Egypt etc. more than 35 countries and over 120 customers .
Q: Are you Trading Company or Manufacturing Factory?
A: We are the leading manufacturer in Guangdong area for 10 years, our products have competitive price and quality guarantee. Welcome to send your inquiry!
Q: I am interested in your products, could I get sample for free?
A: We can supply a few pieces FREE samples if we have some in stock, and you only need to pay the freight cost by yourself. Welcome to send your inquiry for FREE samples!
Q: How about the delivery time?
A: 10-15days after receiving the deposit based on the MOQ. Normally, 30-35days to finish the order for a 20ft container. Of course, we can also meet the urgent delivery time if the production schedule is not tight. Welcome to ask for the detailed delivery time according to your order quantity!
Q: How can you guarantee the product quality?
A: We have the quality control system ISO9001:2008, and it’s been followed strictly. We also have the professional QC team, and each our package worker will be in charge of the final inspection according to the QC instruction before packing.
Q.What certifictes do you have?
A:Yes,ISO,SGS and ROHS are available now.Others also can be made as you request.
Q.Is the third party quality test acceptable?
A:Sure,it will be our great honor.They are always welcome.
Q.What's the life time of the FRP profiles?
A:Normally,it is about 15 years.
Q.How to make them with UV resistant?
A:Adding some UV resistant material.Sometimes,if it is in high demands,we will consider UV painting
Q: I'd like to know your payment terms.
A: Basically, the payment terms are T/T, L/C at sight. Western Union, Paypal, Moneygram, Alipay, Credit card are acceptable for sample order.
For more questions,product catalog,price and samples,click here now,we are always ready for you.
