3K Carbon Fiber Protection Tube

Carton/Film/Woven Belt

Specifications

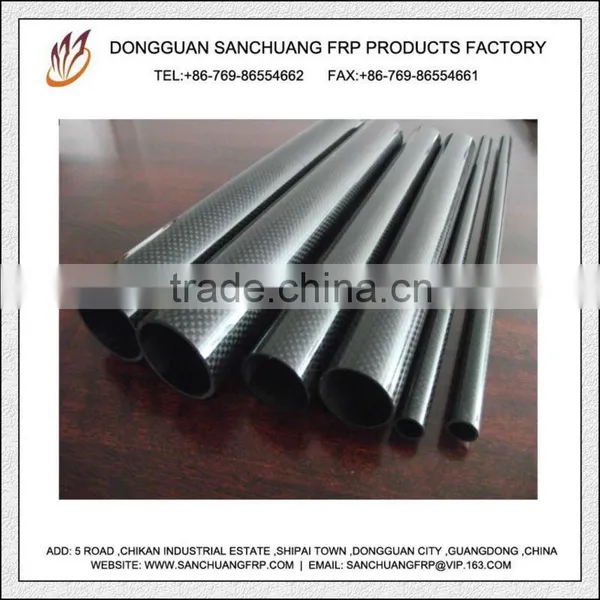

3K Carbon Fiber Protection Tube
1.High strength
2.Stiffness
3.Light-weight
4.Corrosion Resistance

1.Simple Introduction Carbon fiber tube can be used to replace or substitute aluminum or steel tubes in a wide range of projects. Their superior mechanical properties mean that tubes of the same weight as an aluminum or steel tube can be much stronger and lighter.This tube is manufactured predominantly using high modulus pre-preg carbon fiber oriented to provide maximum strength in the lateral (length-ways) axis ensures that the tube has good crush-strength; ideal for real-world applications.



2.Material:Carbon fiber cloth and carbon fiber roving





3.Techniques:Roll Wrapping and Pultrusion



♦Roll Wrapping

The phrase 'roll wrapped' refers to the process used to manufacture these tubes. The pre-preg carbon fiber is first laid up around a mandrel in multiple layers. Once the reinforcement is in place it is spiral wrapped with heat-shrink tape (this is what gives roll-wrapped tubes their characteristic ribbed appearance) before the whole assembly is oven cured.Roll wrapped carbon fiber tubes offer superior strength in general use to 'pultruded' tubes (which have all their fibers running in exactly the same direction). This is because forces on a tube are rarely exclusively in straight compression or tension, whereby the unidirectional fibers of a pultruded tube are not ideal.



♦Pultrusion



Pultrusion process is a kind of method to make continuous composite profiles,which use the twistless roving on the creel with other continuous reinforced composites, polyester surface mat,ect. to proceed the resin impregnation, and then keep the forming mould at certain section, make the continuous depanning after curing in the intramode.





4.Mechanical Properties & Specification

For roll wrapping tube is available lengths is within 2500mm.while for pultrusion carbon fiber tube,the length is limitless in theory.Please choose the length you require from the drop-down list.



♦ Layup Schedule

[0, 90, 0, 90, 0]

0° layers are 300gsm Toray T700
90° layers are 300gsm E-Glass ~UD (80/20)



♦ Mechanical Properties and Comparison with Steel and Aluminum Tube

Property	This Carbon Fiber Tube	Steel	Aluminum
Density (g/cc)	1.60	8.0	2.7
Youngs Modulus 0°(GPa)	90	207	72
Youngs Modulus 90°(GPa)	19	207	72
In-Plane Shear Modulus(GPa)	4.6	-	-
Major Poisson's Ratio(MPa)	0.14	-	-
Ult. tensile Strength 0°(MPa)	750	990	460
Ult. comp. Strength 0°(MPa)	600	990	460
Ult. tensile Strength 90°(MPa)	400	990	460
Ult. comp. Strength 90°(MPa)	350	990	460



5.Typical Features of Carbon Fiber Products



· Light Weight - Less Density                                · High Strength

· High Corrosion Resistance                                 · UV Resistant Inhibited
· Variety Of Colors For Choice                              · Superior Dimensional Stability
· Wide Temperature Range Use                            · Consistent Cross Section



· Lasting Performance                                           · Good Tenacity and dimensional Stability
· Excellent Structural Properties                            · Environmentally Safe
· Non-Magnetic Electromagnetic                            · Ease Of Fabrication & Installation



6.Successful Cases of Carbon Fiber Application

Carbon fiber products are used widely in RC Plane Model,Toys,Camera Tripod,Auto Parts,Motorcycle and Bicycal,ect.
