Solid 2014 Newest Schmidt Hammer Sale

Name: Solid 2014 Newest Schmidt Hammer Sale
Brand: Solid
SKU: 103564303
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Beijing, China

Brand Name:

Solid

Model Number:

HT-225V

Solid (Beijing) Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Beijing

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Beijing, China

Brand Name Solid

Model Number HT-225V

Power Electronic

Usage Impact Testing Machine

Specifications

1: Portable design, light to take.
2: High contrast OLED display
3: Custom curve according to your demand
4: Blue tooth

Product Description

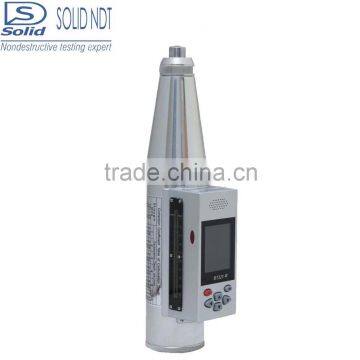

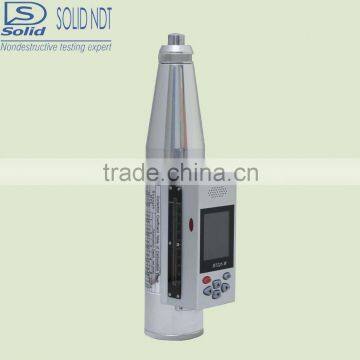

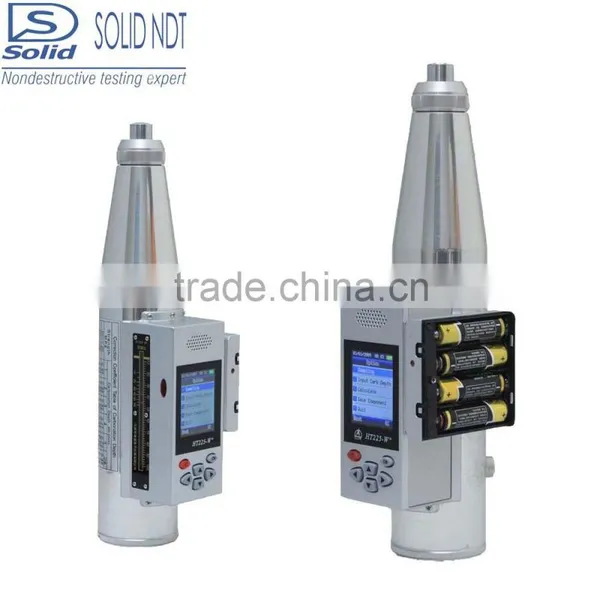

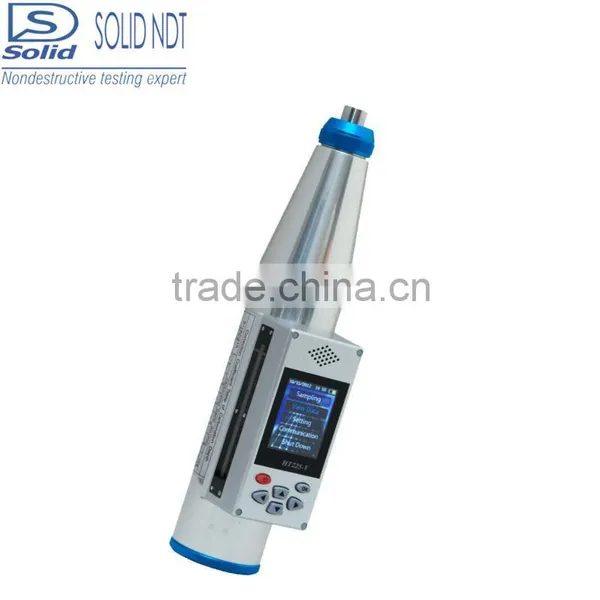

Solid 2014 Newest schmidt hammer sale

1: Portable design, light to take.
2: High contrast OLED display
3: Custom curve according to your demand
4: Blue tooth

HT-225 hammer manual

	Brand:Solid
	Model: HT-225

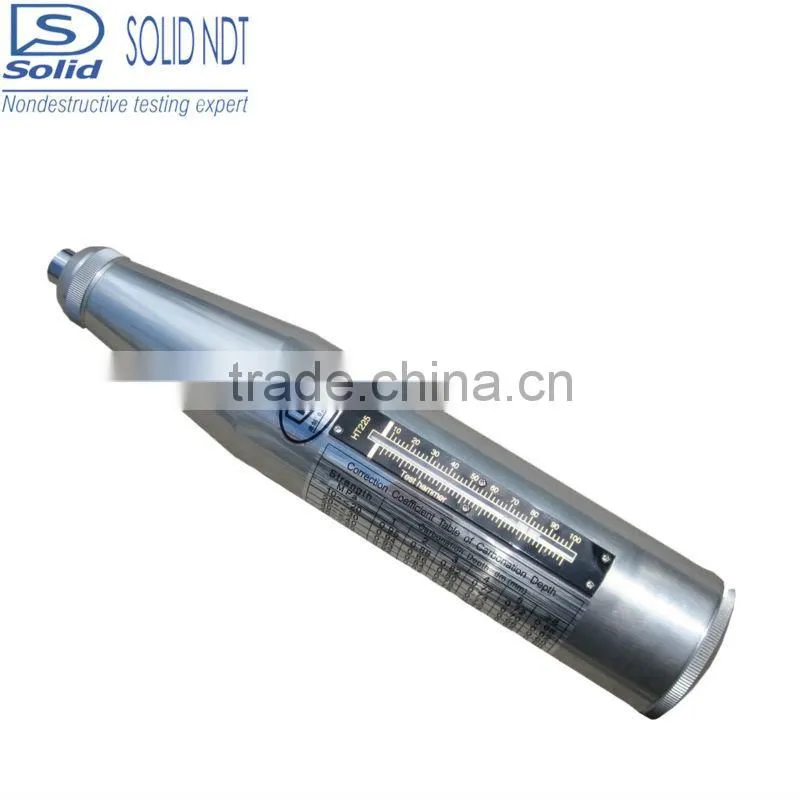

	Name: Concrete Test Hammer
	Origin: Tianjin, China
Explanation	Consistent withGB/T9138-1988 standards and JJG817-93 statutes and JGJ/T23-2001 technical regulations.HT-225B Concrete Test Hammer generally applied to building components, bridges and all kinds of concrete components (panels, beams, columns, bridges) strength.
Features	1) Center guide rod using imported materials, high precision, wear-resistant; 2) Use of super-hard aluminum shell to avoid on-site work injury apparatus, to extend the service life; 3) Pointer slider with external spring ring structure, both convenient for the friction adjustment, and ensures that the pointer shaft and pointer slider friction uniform, to ensure the accuracy of the instrument. Peer-products is relatively high accuracy, quality and cheap, long service life.
Technical Data	Measuring ranges: 10-60MPa Impact energy: 2.207J(0.225Kgf.m) Spring extension: 75mm The static friction of pointer slider: 0.5N±0.8N Radius of spherical tip : 25mm±1mm The average rebound values on steel anvil: 80±2 Housing dimensions: Φ54278mm Weight: ≈0.75Kg Measurement:34585*80 mm

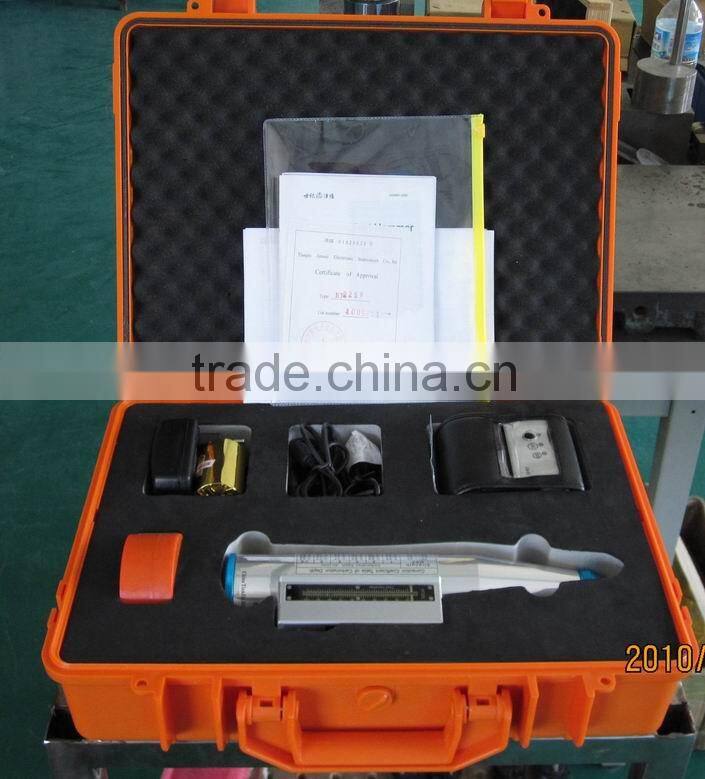

Incidental Items with Instrument	1. HT-225B Concrete Test Hammer 2. Desiccant 3. Millstone 4. Manual of HT-225B Concrete Test Hammer
