Solid High Carbon Fiber Rods

Solid High Carbon Fiber Rods thumbnail-1
Solid High Carbon Fiber Rods photo-1
US$ 3 - 50 MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SC
Model Number:
SC20130830018
Contact Supplier Request Quote Chat Now
Sanchuang FRP Products Factory In Shipai Town Dongguan City
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SC
Model Number SC20130830018
Application Other, RC Plane Model,Toys,Camera Tripod,Auto Parts,Motorcycle and Bicycal
Shape Other, Carbon Fiber Tube, Round and Square
Dimensions Customized
Product Type Carbon Fiber Cloth
C Content (%) ≥80%
Working Temperature around 200℃
S Content (%) 1%
N Content (%) 1%
H Content (%) 2%
Ash Content (%) 0.5%
Volatile N/A

Specifications

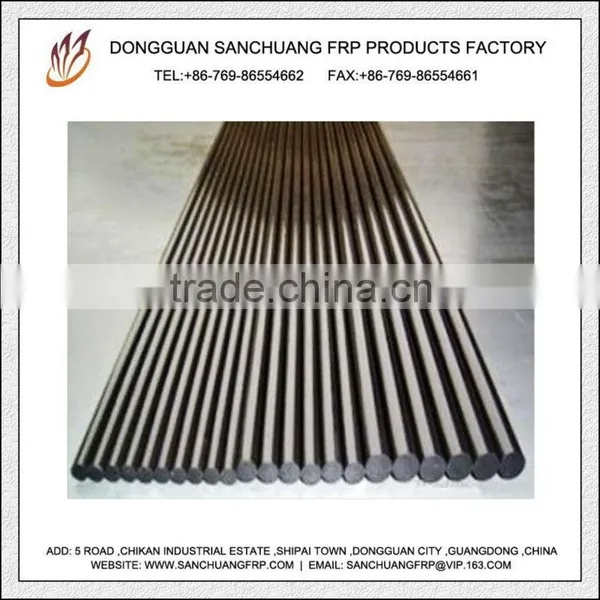

Solid High Carbon Fiber Rods
1.High strength,
2.Stiffness
3.Light-weight
4.Corrosion Resistance

1.Simple Introduction

Carbon fiber rods are manufactured in a process called pultrusions. Pultruded shapes have very straight fibers cured at high temperature resulting in high fiber to resin ratios and very stiff parts. Sanchuang carbon rods contain no fillers - ONLY continuous fibers.



1)Diameter

Custom is always available and the most welcome,currently our normal sizes are from1.5 to 51.5mm



2)Length

Most diameters are available up to infinite length in theory,but given the transportaion problems,if not rolling,it is better to be controlled in 6000mm.



3)General Tolerances

Dimensional tolerances are +/- 0.2mm and weight tolerances +/- 2-5%.



4)Sanchuang Carbon Fiber Rods

Compared to other materials and processes,Sanchuang carbon fiber rods are twice as stiff as aluminum of the same diameter. Sanchuang carbon rods are 350% stronger in tension and 550% stronger in compression than the tradional wet lay-up with carbon fiber tow and room temperature resin systems.



2.Material:Carbon Fiber Roving

Solid High Carbon Fiber Rods





3.Techniques:Pultrusion

Pultrusion process is a kind of method to make continuous composite profiles,which use the twistless roving on the creel with other continuous reinforced composites, polyester surface mat,ect. to proceed the resin impregnation, and then keep the forming mould at certain section, make the continuous depanning after curing in the intramode.



4.Typical Features of Carbon Fiber Products



· Light Weight - Less Density                                · High Strength

· High Corrosion Resistance                                 · UV Resistant Inhibited
· Variety Of Colors For Choice                              · Superior Dimensional Stability
· Wide Temperature Range Use                            · Consistent Cross Section



· Lasting Performance                                           · Good Tenacity and dimensional Stability
· Excellent Structural Properties                            · Environmentally Safe
· Non-Magnetic Electromagnetic                            · Ease Of Fabrication & Installation



6.Successful Cases of Carbon Fiber Application

Carbon fiber products are used widely in RC Plane Model,Toys,Camera Tripod,Auto Parts,Motorcycle and Bicycal,ect.

Solid High Carbon Fiber RodsSolid High Carbon Fiber RodsSolid High Carbon Fiber RodsSolid High Carbon Fiber RodsSolid High Carbon Fiber RodsSolid High Carbon Fiber Rods
