Fiberglass Profile Surface Coating 3K Carbon Fiber

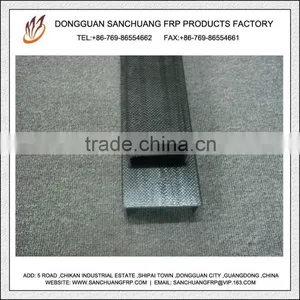

Fiberglass Profile Surface Coating 3K Carbon Fiber thumbnail-1
Fiberglass Profile Surface Coating 3K Carbon Fiber photo-1
US$ 0.5 - 36 MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Sanchuang
Model Number:
SCQ201308151
Contact Supplier Request Quote Chat Now
Sanchuang FRP Products Factory In Shipai Town Dongguan City
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Sanchuang
Model Number SCQ201308151
Application construction
Surface Treatment smooth
Technique Pultrusion
Dimensions customzied

Specifications

Fiberglass Profile Surface Coating 3K Carbon fiber
1.High strength.
2.Good tensile strength.
3.Insulation.
4.Anti-aging

Fiberglass Profile Surface Coating 3K Carbon fiber



Physical Properties

 FRP product mainly are made of Glass Fiber and Resin with hot temperature through mould pultruded.Pleaserefer to follow  glass fiber information and Resin information, you can choose any typ material as your requirement.



A.Physical Properties Of Common Glass Fiber

Properties

C

 Fiberglass

E

Fiberglass

S

Fiberglass

Basalt

Fibe

Carbon Fiber

Glass

Aramid Fiber

Density



2.54-2.57

2.54-2.57

2.54

2.8

1.78

1.45

Tensile Strength

2500-2700

3100-3800

4020-4650

4100-4800

3500-6000



 2900-3400




Elastic Modulus



70-74



72.5-75.5



83-86



93.4-110



230-290



70-140


Breaking Elongation



4.2



4.7



5.3



3.1



1.5-2.0



2.8-3.6


MAX WorkingTemperature



380



380



380



650



500



250



  B. Physical Properties of Common Thermosetting Resin



 Properties/Type

Othophthalic unsaturated

polyester resins

Isophthalic unsaturated

 polyester resin



Vinyl ester





Testing standard




Tensile Strength



60 MPa



76 MPa



95 MPa



ISO 527-2


Tensile E-modulus



4250 MPa



3600 MPa



3600 MPa



ISO 527-2


Elongation at break



1.5%



3.6%



6.1%



ISO 527-2


Flexural strength



103 MPa



140MPa



150MPa



ISO 178


Flexural E-modulus



4080 MPa



3800MPa



3400 MPa



ISO178



Impact res-unnotched



10 KJ/M2



12KJ/m2



28KJ/m2



ISO179


HDT



100 °C



93°C



105 °C



ISO75A


Corrosion resistance



Ordinary



Good



Excellent

  /



Physical Parameters of FRP Products



Mechanical performance

Tensile Strength: LW260-600MPa  CW45-80 MPa; Test Method: ASTM D-638.

Tensile Modulus:LW18-30Gpa CW7-13Gpa; Test Method: ASTM D-638.

Flexural Strength:LW300-700Mpa,CW80-120Mpa, Test Method:ASTM D-790.

Flexural Modulus:LW20-26GPa,CW7-12GPa, Test Method:ASTM D-790.

Compressive modulus:LW280 Mpa CW105Mpa,Test Method:ASTM D-695.

Interlayer Shear Strength:LW 25 Mpa, Test Method:ASTM D-2344.

Impact Strength: 280 KJ/M2,Test Method:ASTM D-256.



Physical Property

Barcol Hardness: 50 Test method:ASTM D-495

Water absorption(25°c,24h):0.2-0.5%,Test method ASTM D-570.

Density:1.75-2.00 g/cm3, Test  method ASTM D-570.

Coefficient of thermal expansion(LW) 5.0 10-6/ °c ,  Test method  ASTM D-696.

Coefficient of thermal conductivity 0.4  W/(M.K)   ,Test method ASTM C-518.

Elongation to break 0.9%,   Test Method  ASTM D-638.



Electrical property

Arc resistance (LW) 120 seconds,Test method ASTM D-495.

Dielectric constant (PF)5@60hz, Test method ASTM  D-150.

Dielectric strength (PF) 8KV/mm Test method ASTM D-149.

Surface resistance:1015-1012 Test method ASTM D-257.

Volume restistance:1015-1012 Test method ASTM D-257.



Flammability property

Tunnel test :Max25  25-28  second, Test method ASTM E-4.

Oxygen data 28-32 >32 % Test method ASTM 2863.

Flammability classification Self extinguish , Test method:ASTM D635.

Notes:LW-lengthwise , CW-crosswise. PE=perpendicular to laminate face.





Other Types



Fiberglass Profile Surface Coating 3K Carbon fiber



Fiberglass Profile Surface Coating 3K Carbon fiber
