Optical Fiber Switch 1*4 for OADM
- 500 Piece / Pieces per Month
- Shanghai or Shenzheng
- T/T Credit Card
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | LINKET | Model Number: | 1*4 |
Product Description
Specifications
---Low Insertion Loss---Wide Wavelength Range
---Low Crosstalk
---High Stability
1 Description
1×2 Optical Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)27.0×(W)12.6×(H)8.2mm. It is an ideal component for OADM,OXC,system monitoring and protection. With compact package, it can be easy to integrate into a high density optical communication system.
2 Application
---System Monitoring
---OADM
---MAN (Metropolitan Area Network)
3 Technical Specs
Parameters | Unit | SUN-FSW-1×2 | |
Wavelength Range | nm | 850±40 / 1300±40 | 1260 ~ 1650 |
Test Wavelength | nm | 850 / 1300 | 1310 / 1550 |
Insertion Loss | dB | Typ: 0.8 Max: 1.2 | Typ: 0.6 Max: 0.8 |
Return Loss | dB | MM ≥ 30 SM ≥ 50 | |
Crosstalk | dB | MM ≥ 35 SM ≥ 55 | |
PDL | dB | ≤0.05 | |
WDL | dB | ≤0.25 | |
Repeatability | dB | ≤±0.02 | |
Operating Voltage | V | 3.0 or 5.0 | |
Durability | Cycles | ≥ 10 Million | |
Switching Time | ms | ≤8 | |
Optical Power | mW | ≤500 | |
Operating Temperature | °C | -20 ~ +70 | |
Storage Temperature | °C | -40 ~ +85 | |
Relative Humidity | % | 5 ~ 95 | |
Weight | g | 14 | |
Dimension | mm | (L)27.0×(W)12.6×(H)8.2 ±0.2 | |
Note: 1 Within operating temperature and SOP. | |||
2 Excluding Connectors. |
4 Pin Configurations
Type | State | Optical Route | Electric Drive | Status Sensor | ||||||
1×2 | Pin 1 | Pin 5 | Pin 6 | Pin 10 | Pin 2-3 | Pin 3-4 | Pin 7-8 | Pin 8-9 | ||
Latching | A | P1-P2 | -- | -- | GND | V+ | Close | Open | Open | Close |
B | P1-P3 | V+ | GND | -- | -- | Open | Close | Close | Open | |
Non-latching | A | P1-P2 | -- | -- | -- | -- | Close | Open | Open | Close |
B | P1-P3 | V+ | -- | -- | GND | Open | Close | Close | Open |

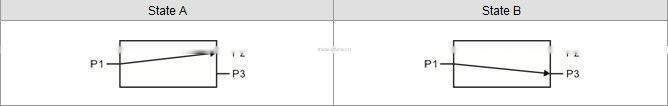

5 Optical Route

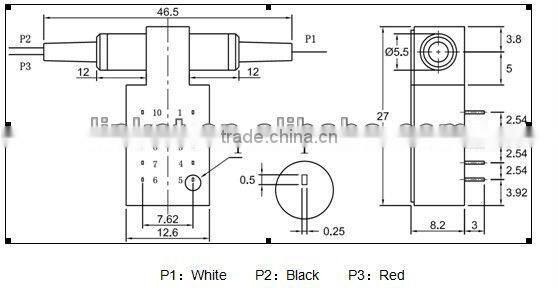

6 Dimension
7 Ordering Info.
Fiber Type | Operating Voltage | Switch Type | Test Wavelength | Tube Type | Fiber Length | Connector |
(Include connector) | ||||||
SM: SM, 9/125 | 3: 3V | L: Latching | 850: 850nm | 25:250um | 05: 0.5m±5cm | OO:None |
M5:MM, 50/125 | 5: 5V | N: Non-latching | 1310: 1310nm | 90:900um | 10: 1.0m±5cm | FP: FC/PC |
M6:MM, 62.5/125 | 1550: 1550nm | X: Others | 15: 1.5m±5cm | FA: FC/APC | ||
X: Others | 1310/1550:1310/1550nm | X: Others | SP: SC/PC | |||
X:Others | SA: SC/APC | |||||
STP: ST/PC | ||||||
STA: ST/APC | ||||||
LP: LC/PC | ||||||
LA: LC/APC | ||||||
X: Others |
