Help CenterMicro Optic FWDM With FC Connector
Related Products
1. Why choose LINKET ?
----- Our customers: FiberHome, Fujikura, HUAMAI, KEXIN, FOCI, Sunsea, TD Telecom
----- Largest PLC Splitter Manufacturer in China: 10Kpcs/day, 40% market share
----- Most Professional on Key Technology: Wafer Dicing and Coupling
----- Import wafer only from South Korea and Reliable relationship with wafer suppliers
----- Direct Factory Price
2. Technical Specs for FWDM
Parameter |
Unit |
Value |
|||||||||
Central Wavelength |
nm |
850/1310 |
980/1550 |
1310/1550 |
1480/ 1550 |
1310/1490/1550 |
C/L Band |
1310/1625 |
1550/1625
|
||
|
Wavelength |
Type 1 |
Passband |
nm
|
850±50 |
980±40 |
1310±40 |
1450~1490 |
1310±40 1490±10 |
1528~1563 |
1310±40
|
1550±40
|
|
Reflective Band |
1310±50 |
1550±40 |
1550±40 |
1530~1580 |
1530~1580 |
1570~1610 |
1625±10 |
1625±10
|
|||
|
Type 2 |
Passband |
1310±50 |
1550±40 |
1550±40 |
1530~1580 |
1530~1580 |
1570~1610 |
1625±10 |
1625±10 |
||
|
Reflective Band |
850±50
|
980±40 |
1310±40 |
1450~1490
|
1310±40 |
1490±10 1528~1563 |
1310±40 |
1550±40
|
|||
|
Insertion Loss
|
Pass Channel |
dB
|
≤0.6 |
||||||||
|
Reflective Channel |
≤0.4 |
||||||||||
Isolation |
Pass Channel |
nm |
Standard ISO≥30, High ISO≥40 |
||||||||
|
Reflective Channel |
Standard ISO≥13, High ISO≥18 |
||||||||||
Flatness |
dB |
≤0.3 |
|||||||||
Directivity |
dB |
≥50 |
|||||||||
Return Loss |
dB |
≥45 |
|||||||||
PMD |
ps |
≤0.10 |
|||||||||
PDL |
dB |
≤0.10 |
|||||||||
|
Insertion Loss Temperature Sensitivity |
dB/°C |
≤0.005 |
|||||||||
|
Wavelength Temperature Shifting |
nm/°C |
≤0.002 |
|||||||||
Fiber Type |
- |
50/125 or 62.5/125 Multimode fiber, SMF-28e Single mode fiber, HI1060 Fiber |
|||||||||
Max. Power Handling |
mW |
≤500 |
|||||||||
Operation Temperature |
°C |
-10~+70 |
|||||||||
Storage Temperature |
°C |
-40~+85 |
|||||||||
Package Dimension |
mm |
Φ5.5×34 (Φ0.25 fiber), Φ5.5×38(Φ0.9 fiber) |
|||||||||

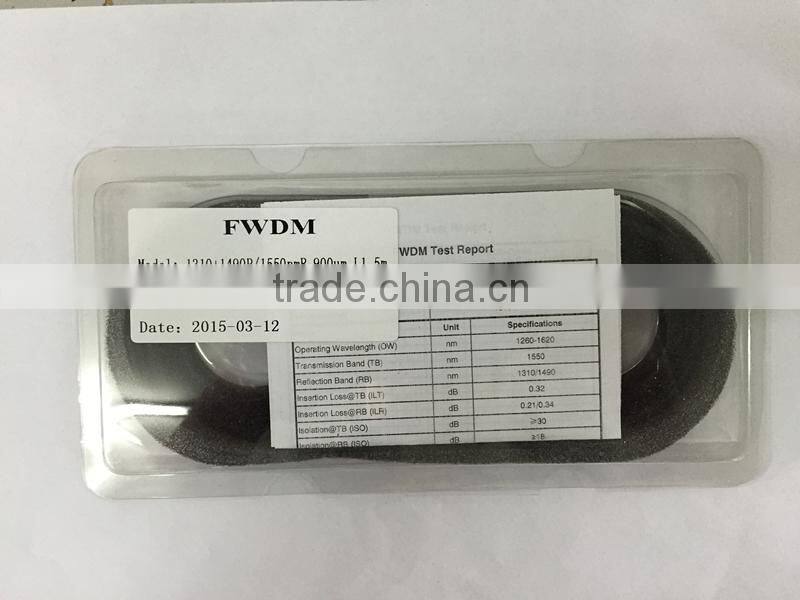

3.Packaging

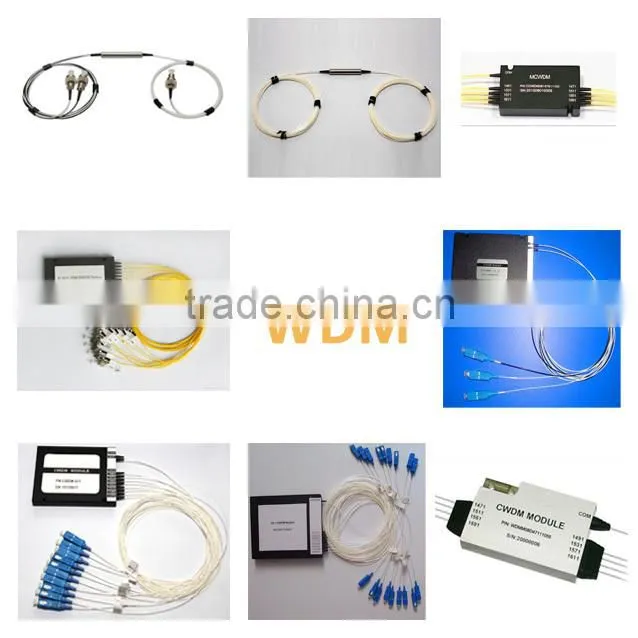

4. Different Models
1. Our Advantage- Integrated Total Chain, Direct Factory Price
| Production/Manufatcurer Level | Cut Wafer and Produce Chips | Make V-Groove | Make Fiber Array | Coupling | Produce Patch Cords and Install Connector |
| 1st Level (LINKET) | √ | √ | √ | √ | √ |
| 2nd Level | √ | √ | √ | √ | |
| 3rd Level | √ | √ | √ | ||
| 4th Level | √ | √ | |||
| 5th Level | √ | ||||
| LINKET intergrates the total chain, is the top-level PLC Splitter manufacturer in China. With over 10K/day production capacity, our PLC Splitters occupy over 40% market share in China. | |||||
2. CE, TLC, ISO 9001 Certified
3. Workshop Overview
