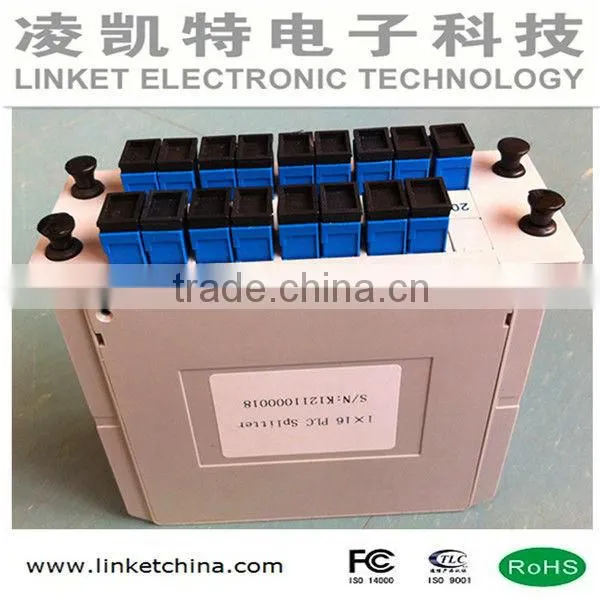

Help CenterSM Fiber Optic PLC Splitter Slot Box
Related Products
-
2*32 Optical PLC Splitter for FTTH/FTTXUS$ 7 - 86MOQ: 2 Pieces -
8 Ports Fiber Optic PLC Splitter Insertion TypeUS$ 7 - 86MOQ: 2 Pieces
-
Rackmounted Optical PLC Splitter With FC/UPC ConnectorUS$ 8 - 86MOQ: 2 Pieces
-
2*32 Rackmounted Fiber Optic PLC SplitterUS$ 8 - 86MOQ: 2 Pieces
-
Rack Monuted PLC SplitterUS$ 8 - 86MOQ: 2 Pieces
Specifications
1 Low insertion loss, Low PDL and High reliability2 High return loss and Good repeatability
3 Wide wavelength range
1 Description
Planar Light wave Circuit (PLC Splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and excellent channel-to-channel uniformity. As a result, it is widely used in PON networks to realize optical signal power splitting.
2 Applications:
---LAN, WAN and Metro Networks
---FTTH project & FTTX Deployments
---CATV System
---GPON, EPON
--- Fiber Optic Test Equipment
---Data-base Transmit Broadband Net
3 Technical Specs for PLC Splitter with Connector
| Item | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 1x128 |
| Fiber Type | G.657.A | ||||||
| Working Wavelength | 1260nm~1650nm | ||||||
| Max. Insertion Loss (dB) | ≤4.1 | ≤7.4 | ≤10.5 | ≤13.8 | ≤17.1 | ≤20.4 | ≤23.8 |
| Uniformity (dB) | ≤0.8 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 |
| PDL (dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 |
| Wavelength Dependent Loss (dB) | ≤0.8 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.2 |
| Return Loss (dB) | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 |
| Directivity (dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 |
| Item | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 | 2x128 |
| Fiber Type | G.657.A | ||||||
| Working Wavelength | 1260nm~1650nm | ||||||
| Max. Insertion Loss (dB) | ≤4.4 | ≤7.7 | ≤10.8 | ≤14.1 | ≤17.4 | ≤20.7 | ≤24.1 |
| Uniformity (dB) | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.5 | ≤2.5 |
| PDL (dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 |
| Wavelength Dependent Loss (dB) | ≤0.8 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.2 |
| Return Loss (dB) | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 |
| Directivity (dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 |
Note: The above parameter is for Splitter with connector. If w/o connector, insertion loss will reduce by 0.2dB.
4 Encapsulation Size for PLC Splitter Slot Box
| Item | Type of Connector | Length*Width*Height (mm) |
| 1x2 | SC/LC | 302*180*25 |
| 1x4 | SC/LC | 302*180*25 |
| 1x8 | SC/LC | 302*180*25 |
| 1x16 | SC/LC | 302*180*25 |
| 1x32 | SC | 302*180*50 |
| 1x32 | LC | 302*180*25 |
| 1x64 | LC | 302*180*50 |
| 1x128 | LC | 302*180*100 |
| 2x2 | SC/LC | 302*180*25 |
| 2x4 | SC/LC | 302*180*25 |
| 2x8 | SC/LC | 302*180*25 |
| 2x16 | SC/LC | 302*180*25 |
| 2x32 | SC | 302*180*50 |
| 2x32 | LC | 302*180*25 |
| 2x64 | LC | 302*180*50 |
| 2x128 | LC | 302*180*100 |
