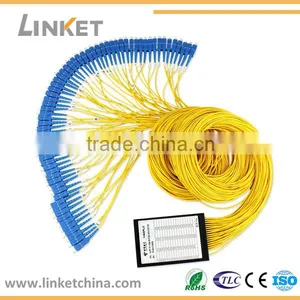

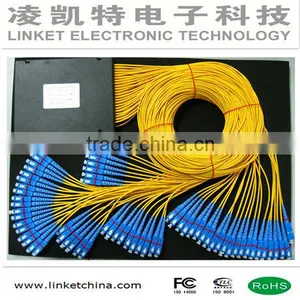

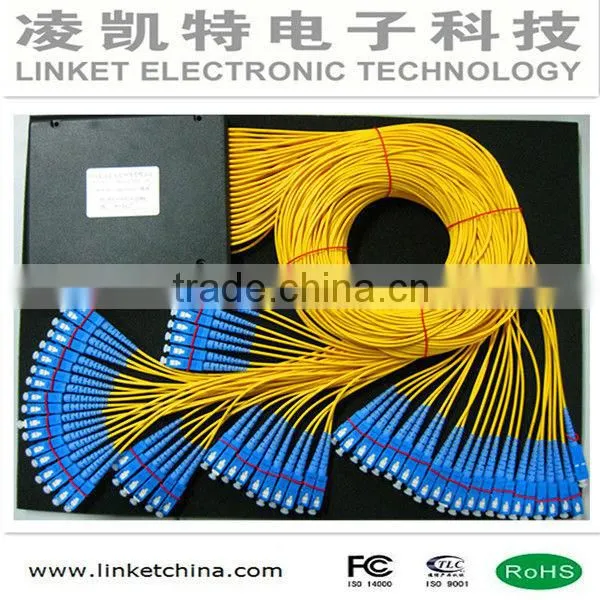

1*64 SC/UPC Optical Splitter for FTTH/FTTX
- 18000 Piece / Pieces per Month
- Shanghai or Shenzheng
- T/T Credit Card
-
ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
-
ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
-
ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
-
ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
-
ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
-
ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | LINKET | Model Number: | 1*64 SC/UPC Optical Splitter for FTTH/FTTX |
Product Description
----- Our customers: FiberHome, Fujikura, HUAMAI, KEXIN, FOCI, Sunsea, ZTT, HTGD...
----- Largest PLC Splitter Manufacturer in China: 18Kpcs/day, 40% market share
----- Most Professional on Key Technology: Wafer Dicing and Coupling
----- Import wafer only from South Korea and Reliable relationship with wafer suppliers
----- Direct Factory Price
1. Features of 1*64 SC/UPC Optical Splitter for FTTH/FTTX
-Low insertion loss, Low PDL and High reliability
-High return loss and Good repeatability
-Wide wavelength range
-Excellent channel-to-channel uniformity
2. Applications of 1*64 SC/UPC Optical Splitter for FTTH/FTTX
-LAN,WAN and Metro Networks
-FTTH project & FTTX Deployments
-CATV System
-GPON,EPON
-Fiber Optic Test Equipment
-Data-base Transmit Broadband Net
3.Technical Specs for 1*64 SC/UPC Optical Splitter for FTTH/FTTX
| Item | 1x64 |
| Fiber Type | G.657.A |
| Working Wavelength | 1260nm~1650nm |
| Standard Insertion Loss(dB) | ≤20.8 |
P-Grade Insertion Loss(dB) | ≤20.4 |
| Uniformity(dB) | ≤2.0 |
| PDL(dB) | ≤0.4 |
| Wavelength Dependent Loss(dB) | ≤2.0 |
| Return Loss(dB) | ≥50 |
| Directivity(dB) | ≥55 |
| Operating Temp.Gange | -40°C~+85°C |
4. Encapsulation Size for 1*64 SC/UPC Optical Splitter for FTTH/FTTX
| Item | 1x64 |
| Length*Width*Height(mm) | 120x80x18 |
| Input | 2.0/3.0mm |
| Output | 2.0/3.0mm |
| Cable Length | 1m,1.5m,can be customized |
