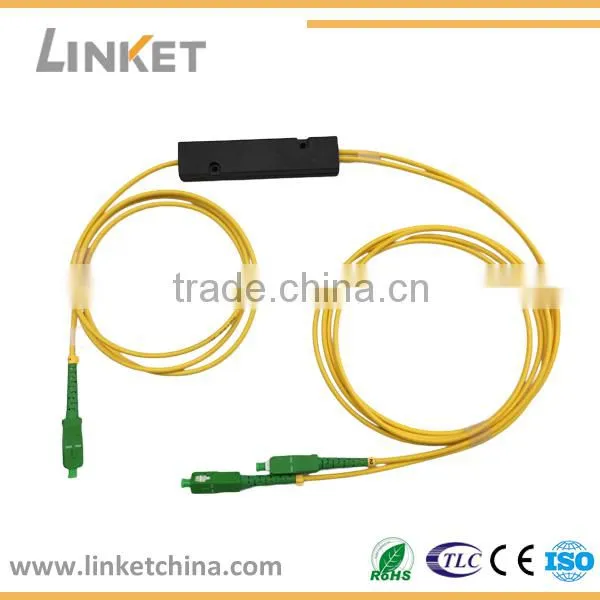

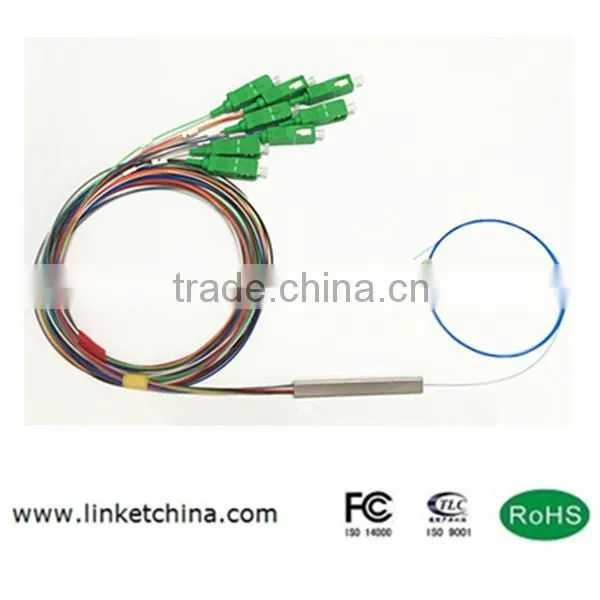

Help Center1*32 PLC Coupler
Related Products
-
Fiber Network 1*32 Fiber Optical PLC SplitterUS$ 7 - 86MOQ: 2 Pieces -
1*64 Optical Fiber PLC Splitter for CATV/GPON/EPON/FTTHUS$ 8 - 86MOQ: 2 Pieces
-
1*16 Optical PLC Splitter Steel TubeUS$ 7 - 86MOQ: 2 Pieces
-
1*32 Blockless PLC Splitter With SC/APC ConnectorUS$ 8 - 86MOQ: 2 Pieces
-
1*2 Fiber Optic PLC Splitter Steel TubeUS$ 8 - 86MOQ: 2 Pieces
----- Our customers: FiberHome, Fujikura, HUAMAI, KEXIN, FOCI, Sunsea, ZTT, HTGD...
----- Largest PLC Splitter Manufacturer in China: 18Kpcs/day, 40% market share
----- Most Professional on Key Technology: Wafer Dicing and Coupling
----- Import wafer only from South Korea and Reliable relationship with wafer suppliers
----- Direct Factory Price
1. Features of 1*32 PLC Coupler
-Low insertion loss, Low PDL and High reliability
-High return loss and Good repeatability
-Wide wavelength range
-Excellent channel-to-channel uniformity
2. Applications of 1*32 PLC Coupler
-LAN,WAN and Metro Networks
-FTTH project & FTTX Deployments
-CATV System
-GPON,EPON
-Fiber Optic Test Equipment
-Data-base Transmit Broadband Net
3.Technical Specs for 1*32 PLC Coupler
| Item | 1X16 |
| Fiber Type | G.657.A |
| Working Wavelength | 1260nm~1650nm |
| Standard Insertion Loss(dB) | ≤14.0 |
P-Grade Insertion Loss(dB) |
≤13.8 |
| Uniformity(dB) | ≤1.0 |
| PDL(dB) | ≤0.3 |
| Wavelength Dependent Loss(dB) | ≤1.0 |
| Return Loss(dB) | ≥50 |
| Directivity(dB) | ≥55 |
| Operating Temp.Gange | -40°C~+85°C |
4. Encapsulation Size for 1*32 PLC Coupler
| Item | 1x16 |
| Length*Width*Height(mm) | 100x80x10/120x80x18 |
| Input | 2.0/3.0mm |
| Output | 2.0/3.0mm |
| Cable Length | 1m,1.5m,can be customized |
5.Different Models of Optical PLC Splitter
6.Other Products
7.Ordering Information
2. Our Advantage- Integrated Total Chain, Direct Factory Price
4. Workshop Overview of 1*32 PLC Coupler
